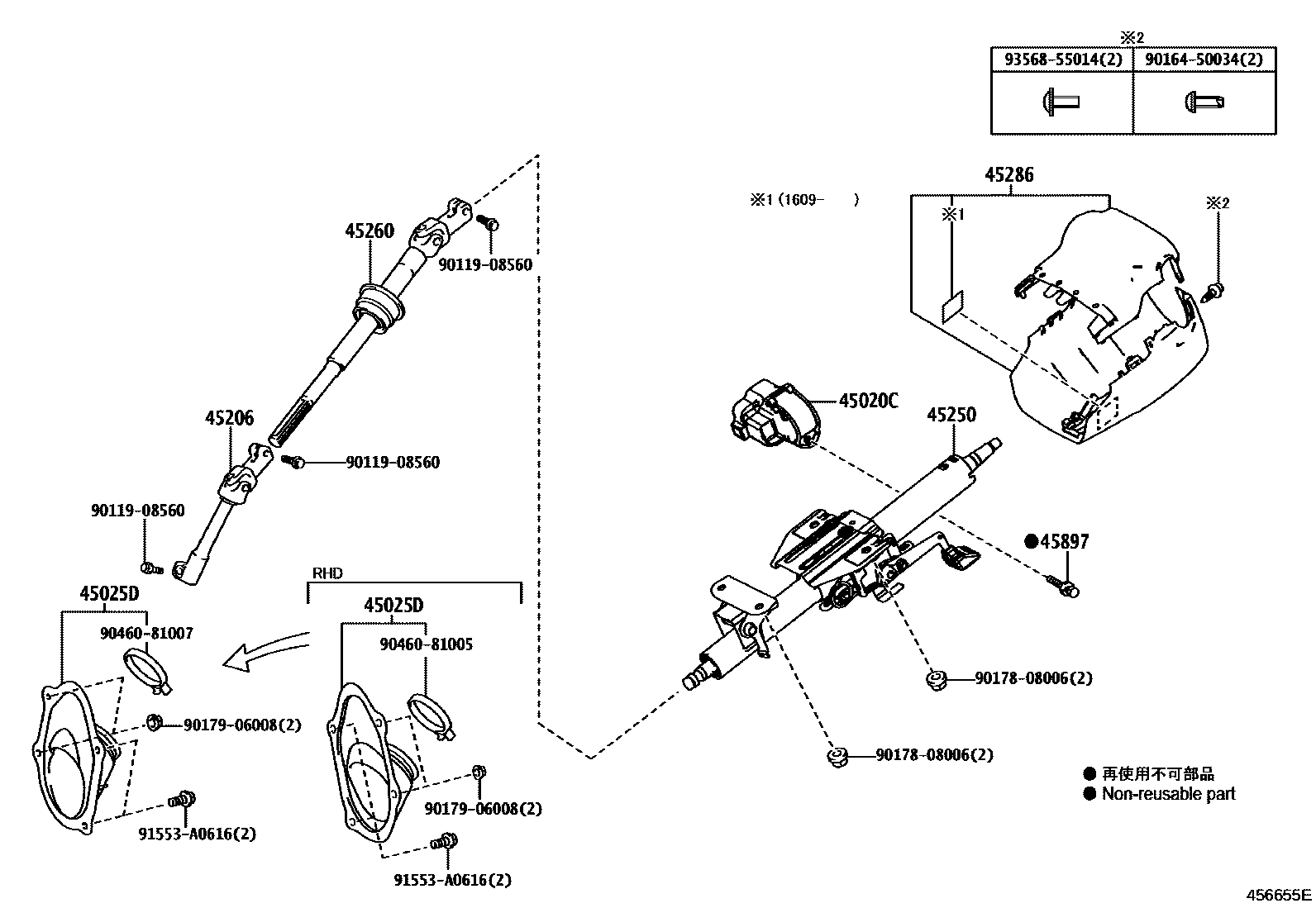

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1POWER TILT & TELESCOPIC 0003 1W(VGRS)

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iAVC10..LHD201409-202008

main45020-53040iAVC10201810-202008

STEERING COLUMN-POWER(AVS)

main45020-53050iASC10201609-201810

main45020-53050iAVC10..LHD201510-202008

STEERING COLUMN-MANUAL(AVS)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iAVC10..RHD201510-202008

main45025-30390iASC10,AVC10..LHD201409-202008

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30190iASC10..RHD201510-202008

main45206-30200iGSC10201409-202008

45250COLUMN ASSY, STEERING

main45250-53080iGSC10201409-202008

main45810-30230iASC10201810-202008

STEERING COLUMN-POWER

main45810-30230iASC10201810-202008

STEERING COLUMN-POWER(AVS)

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iGSC10201409-202008

45286COVER, STEERING COLUMN

main45286-53918-C0iGSC10201409-201609

BLACK,TRIM1#,2#,3#,4#,5#

main45286-53918-C0iASC10,AVC10..RHD201510-201609

BLACK,TRIM1#,2#,4#,5#

main45286-53925-C0iASC10201810-202008

STEERING COLUMN-POWER,BLACK,TRIM0#,2#,3#,4#,5#

main45286-53925-C0iASC10201810-202008

BLACK,TRIM0#,2#,3#,4#,5#

main45286-53925-C0iASC10201810-202008

STEERING COLUMN-POWER(AVS),BLACK,TRIM0#,2#,3#,4#,5#

main45286-53931-C0iAVC10201810-202008

BLACK,TRIM2#,3#,4#,5#

main45286-53931-C0iGSC10201609-201810

BLACK,TRIM1#,2#,3#,4#,5#

main45286-53931-C0iAVC10..RHD201609-201810

BLACK,TRIM1#,2#,4#,5#

45897BOLT, STEERING LOCK SET

main45897-12020iGSC10201409-202008

STEERING COLUMN-POWER

main45897-12020iGSC10201409-202008

STEERING COLUMN-POWER(AVS)

main45897-12020iASC10..RHD201510-201810

"F SPORT"

main45897-12020iASC10..RHD201510-201810

"VERSION L"

9011908560

main90119-08560

9016450034

main90164-50034

9017808006

main90178-08006

9017906008

main90179-06008

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

15 parts on this diagram · 3 diagrams in section
