ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-53480iUSE20200712

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-53530iUSE20200712-200908

main86101-53A10iUSE20200908

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-53160iUSE20200712-201408

86396NUT, ANTENNA

main86396-30050iUSE20200712-201009

main86396-47010iUSE20201010-201408

86760AANTENNA ASSY, TELEPHONE

main86760-53010-A2iUSE20200712-201208

WHITE PEARL CS.,077

main86760-53010-A3iUSE20201208-201408

WHITE NOVA GF.,083

main86760-53010-B0iUSE20200712-201108

DK.GRAY MC.,1G0

main86760-53010-B2iUSE20200712-201208

PREMIUM SILVER,1F2

main86760-53010-B4iUSE20201108-201408

MERCURY GRAY MC.,1H9

main86760-53010-B5iUSE20201208-201408

SONIC SILVER,1J2

main86760-53010-C1iUSE20200712-201408

BLACK,212

main86760-53010-C2iUSE20201008-201408

STARLIGHT BLACK GF.,217

main86760-53010-D0iUSE20200712-201408

RED MC.CS.,3R1

main86760-53010-J4iUSE20200712-201408

BLUE ME. CC.,8U1

87268RPROTECTOR, TELEPHONE ANTENNA

main87268-50020iUSE20200712-201009

main87268-50021iUSE20201010-201408

9011906915

main90119-06915

9017906274

main90179-06274

9098050002

main90980-50002

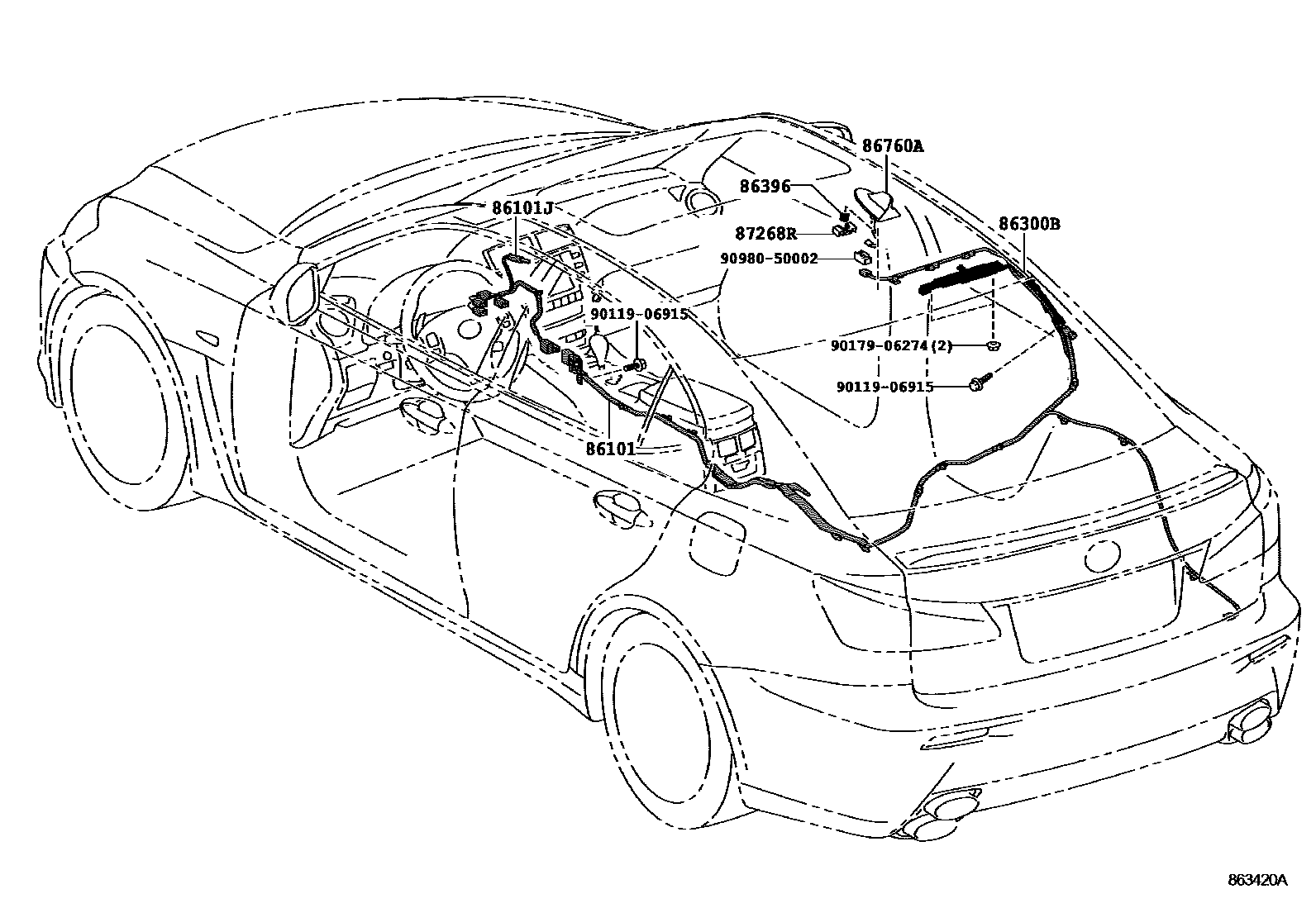

9 parts on this diagram · 1 diagram in section
