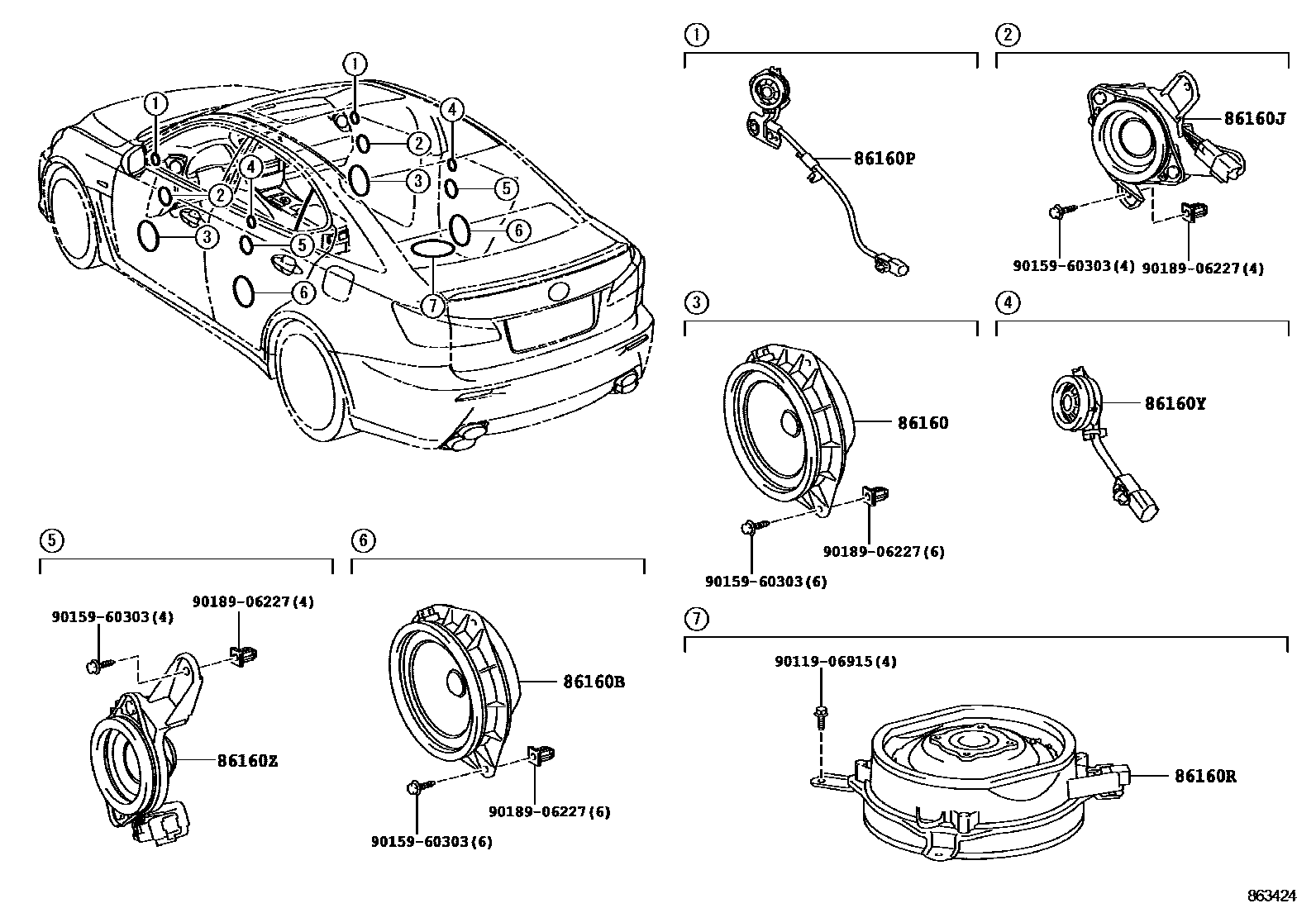

SPEAKER

0001 113SPEAKERS 0002 114SPEAKERS

86160SPEAKER ASSY, FRONT NO.1

main86160-0WG20×2iUSE20..RHD201008

main86160-53210×2iUSE20..RHD200712-201008

main86160-0WB10×2iUSE20200712-200908

AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER

86160BSPEAKER ASSY, REAR

main86160-0WS60×2iUSE20..RHD201008

main86160-53210×2iUSE20..RHD200712-201008

main86160-0WF90×2iUSE20200712-200808

AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WS40iUSE20..LHD201309

RH

main86160-0WS50iUSE20..RHD201008

LH

main86160-53240iUSE20..RHD200712-201008

RH

main86160-53250iUSE20..LHD200712-201309

LH

main86160-0WD40iUSE20200712-200908

AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,RH

main86160-0WD50iUSE20200712-200808

AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER,LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WD20iUSE20..RHD201008-201408

RH

main86160-0WD30supersedes 86160-53231iUSE20..RHD201008-201408

LH

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-0WS70iUSE20..LHD201309

main86160-53300iUSE20..LHD200712-201309

main86160-0WD80iUSE20200712-200808

AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER

86160YSPEAKER ASSY, REAR NO.2

main86160-0WD60iUSE20..RHD201008-201408

RH

main86160-0WD70supersedes 86160-53280iUSE20..RHD201008-201408

LH

86160ZSPEAKER ASSY, REAR NO.3

main86160-53260iUSE20..RHD200712-201008

RH

main86160-53270iUSE20..LHD200712-201309

LH

9011906915

main90119-06915

9015960303

main90159-60303

9018906227

main90189-06227

10 parts on this diagram · 2 diagrams in section
