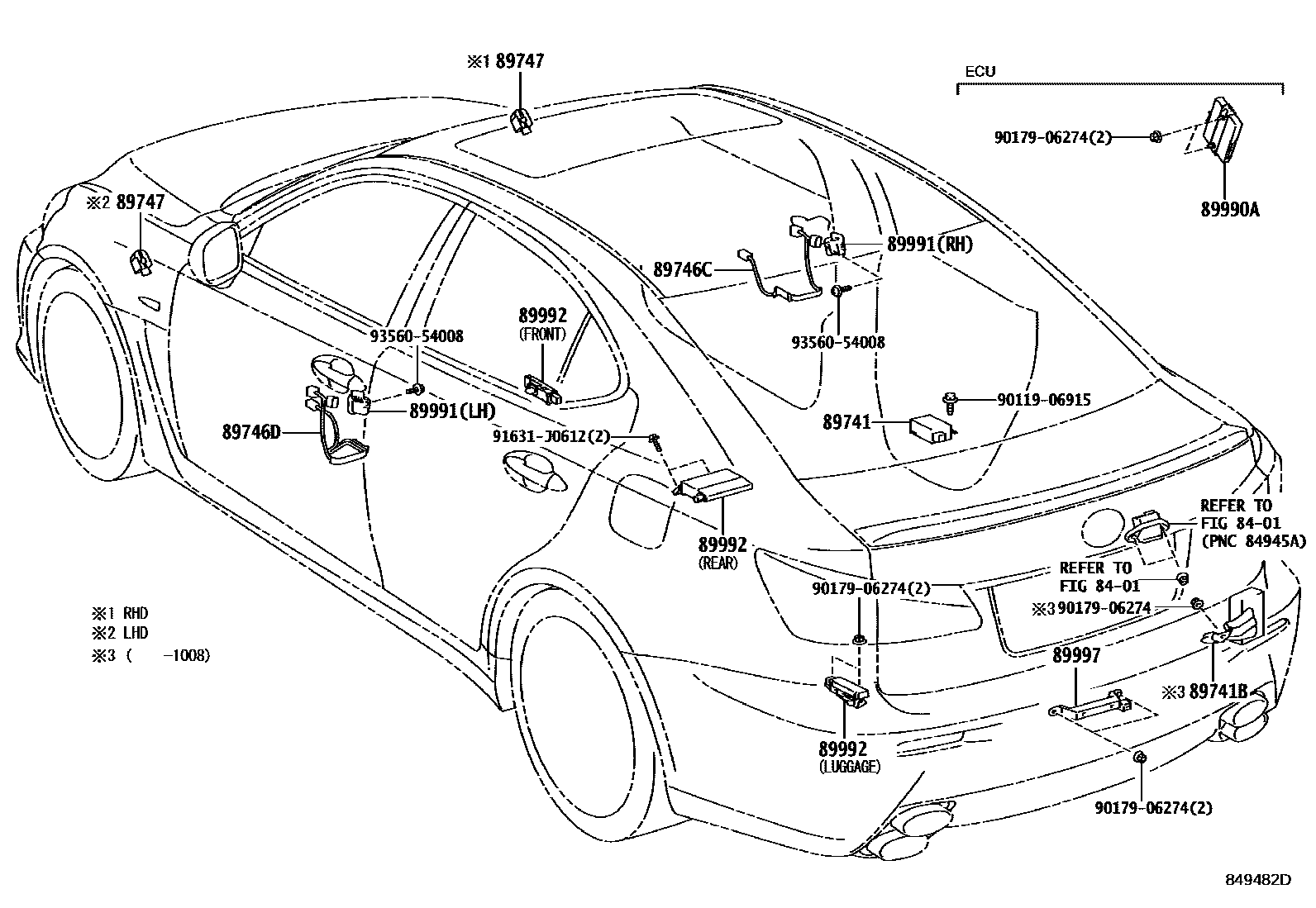

WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89741RECEIVER, DOOR CONTROL

main89740-53052i200712-200802

main89740-53053i200803-201005

main89740-53320i201005-201408

main89740-53030i200712-201208

AUSTRALIA SPEC; NEW ZEALAND SPEC

main89740-53370i201208-201408

AUSTRALIA SPEC; AUSTRALIA SPEC&WITH(CARD KEY); NEW ZEALAND SPEC; NEW ZEALAND SPEC&WITH(CARD KEY); TAIWAN SPEC; TAIWAN SPEC&WITH(CARD KEY)

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-53060i200712-201008

main89740-53040i200712-201008

AUSTRALIA SPEC; NEW ZEALAND SPEC

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-53010i200712

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-53020i200712

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010i200712

89990ACOMPUTER ASSY, SMART KEY

main89990-53015i200712-200801

main89990-53016i200802-200808

main89990-53030i200808-200907

main89990-53070i200908-200909

main89990-53071i200909-201004

main89990-53130i201005-201103

main89990-53131i201108-201208

main89990-53132i201209-201309

main89990-53133i201309

main89990-53170i201103-201108

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040i200712-201408

main89991-30050i200712-201408

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30080i200908

REAR

main89992-30090i200712

FRONT

main89992-30100i200712-200907

REAR

main89992-53010i200712

LUGGAGE

89997ANTENNA, ELECTRICAL KEY

main89997-30070i201108

main89997-41010i200712-201108

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054008

main93560-54008

14 parts on this diagram · 1 diagram in section
