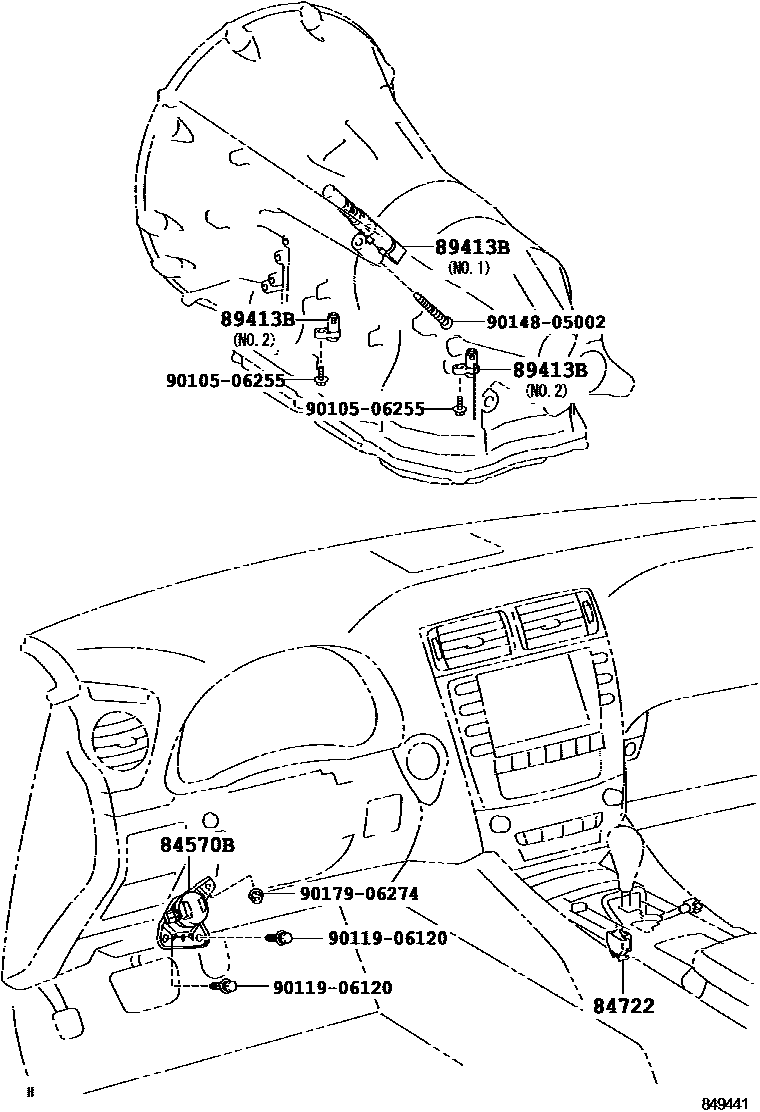

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84570BSWITCH ASSY, KICK DOWN

main84570-30090iUSE20..RHD200712

main84570-30100iUSE20..LHD200712

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iUSE20..RHD200712-201408

main84722-20240iUSE20..LHD200712-201408

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-50010iUSE20200712-201408

NO.1

main89413-50020×2iUSE20200712-201408

NO.2

9010506255

main90105-06255

9011906120

main90119-06120

9014805002

main90148-05002

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
