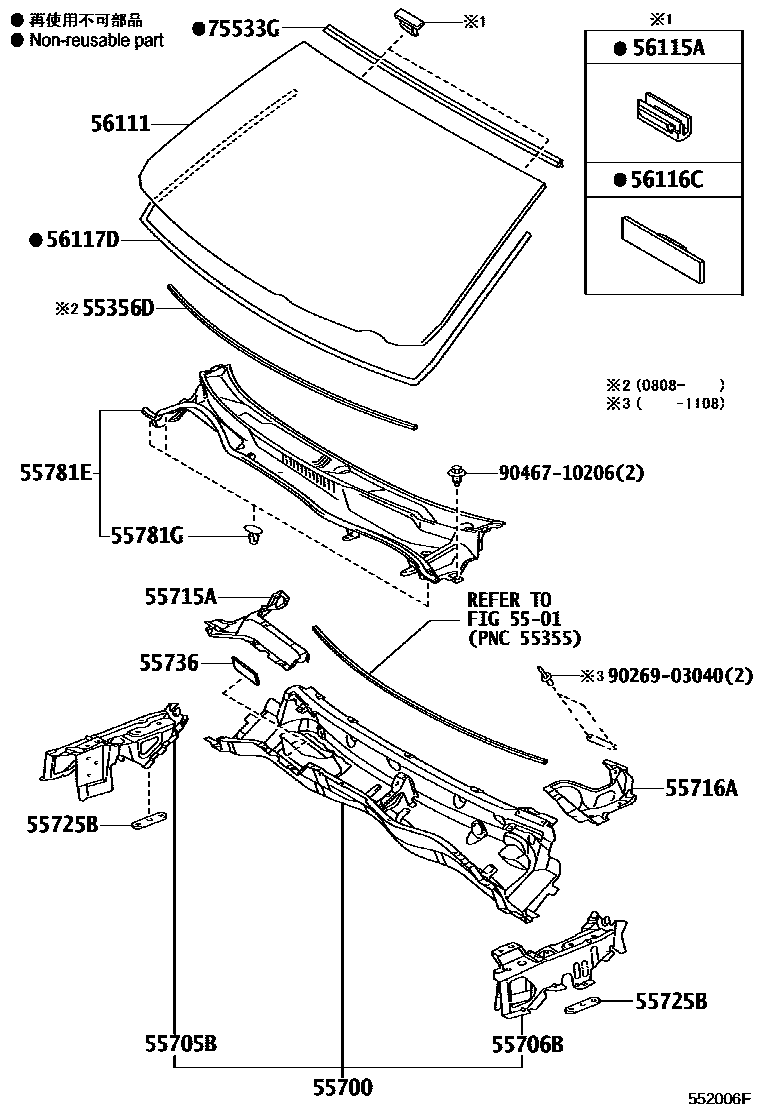

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55355-53040iUSE20200808

55700PANEL ASSY, FRONT

main55700-53901iUSE20..LHD200712-201108

main55700-53902iUSE20..RHD200712-201108

main55700-53906iUSE20..LHD201108-201408

main55700-53907iUSE20..RHD201108-201408

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53010iUSE20200712

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53010iUSE20200712

55715ABRACE, COWL TOP TO APRON, RH

main55715-53030iUSE20..RHD200712

main55715-53040iUSE20..LHD200712

55716ABRACE, COWL TOP TO APRON, LH

main55716-53030iUSE20..RHD200712

main55716-53040iUSE20..LHD200712

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iUSE20200712

55736SEAL, WATER GUARD PLATE

main55736-53010iUSE20200712

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53070iUSE20..RHD200712

main55708-53090iUSE20..LHD200712

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×3iUSE20200712

56111GLASS, WINDSHIELD

main56101-53910iUSE20..LHD200712-200908

*EHL,T=4.76,GREEN

main56101-53912iUSE20..RHD200712-200908

*EHL,T=4.76,GREEN

main56101-53934supersedes 56101-53933iUSE20..LHD200908-201008

*EHL,T=4.7,GREEN

main56101-53935iUSE20..RHD200908-201008

*EHL,T=4.7,GREEN

main56101-53937iUSE20..RHD201008-201207

*LAM,T=4.7,GREEN

main56101-53956iUSE20..RHD201208

*LAM,T=4.7,GREEN

main56101-53955supersedes 56101-53954iUSE20..LHD201208

*EHL,T=4.7,GREEN,WINDSHIELD DEICER-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2iUSE20200712

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iUSE20200712

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-53020iUSE20200712

L=2665

main56117-64010iUSE20..LHD201008

L=2665,WINDSHIELD DEICER-WITH

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53040iUSE20200712

9026903040

main90269-03040

9046710206

main90467-10206

18 parts on this diagram · 2 diagrams in section
