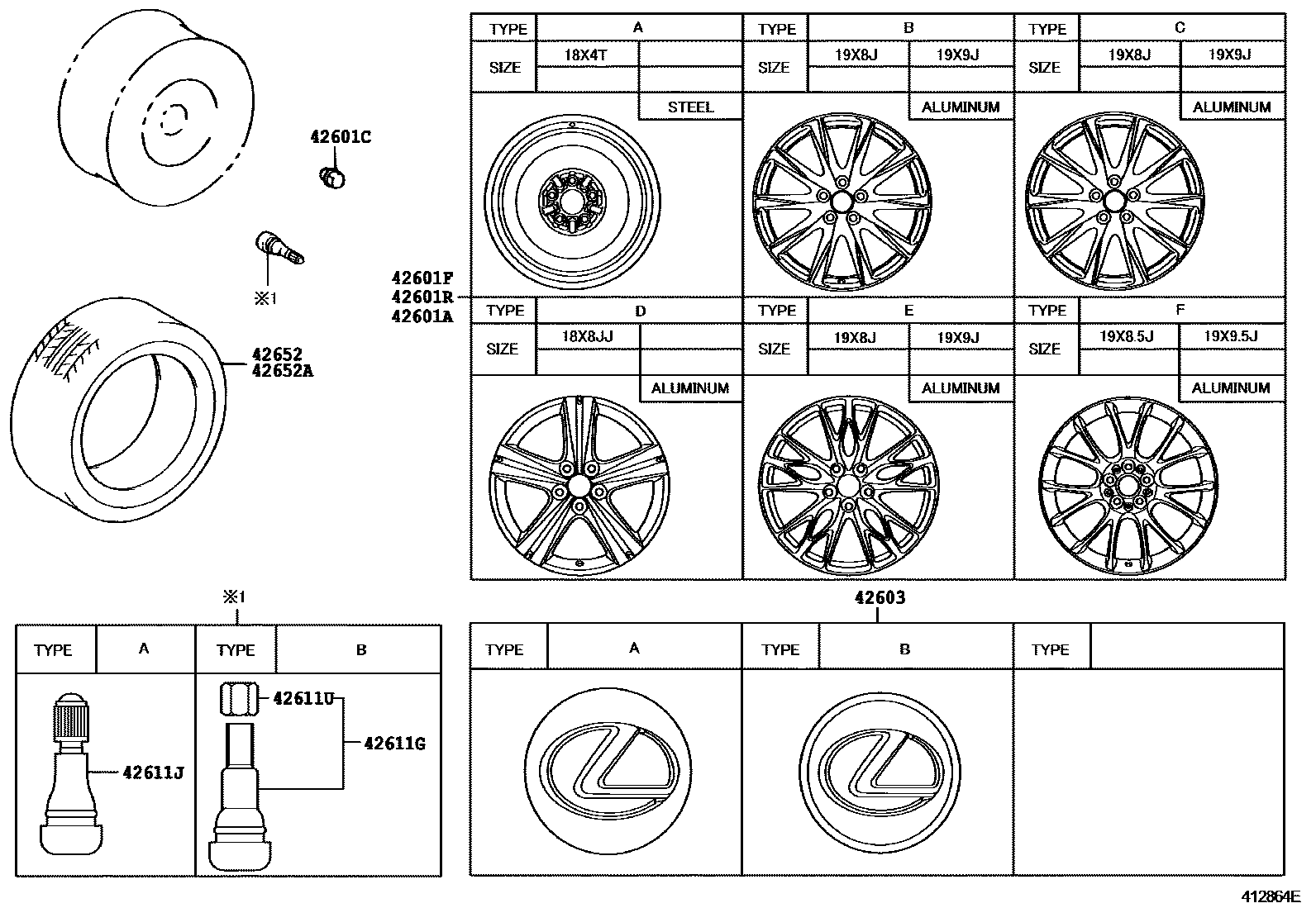

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42611-53200i200908

18X4T,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE A:REFER ILLUST.; 18X4T,TYPE A:REFER ILLUST.

main42611-53210i200712-200907

18X4T,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE A:REFER ILLUST.; 18X4T,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i200712-201408

42601FWHEEL, DISC (FOR FRONT)

main4261A-53010i200712-200908

19X8J, #,LH,TYPE B:REF.ILL.

main4261A-53020supersedes 4261A-53190i200712-200908

19X8J, #,RH,TYPE C:REF.ILL.; 19X8J, #,TIRE & DISC WHEEL-225/40R18 ALUMINUM,RH,TYPE C:REF.ILL.

main42611-30B20×2i200712

18X8JJ, #,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE D:REFER ILLUST.

main42611-53180i200712

19X8J, #,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,LH,TYPE B:REF.ILL.

main42611-53190i200712

19X8J, #,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,RH,TYPE C:REF.ILL.

main4261A-53190×2i200908

19X8J, #,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE E:REFER ILLUST.; 19X8J, #,TYPE E:REFER ILLUST.

main4261A-53270×2i201108

19X8.5J, #,TIRE & DISC WHEEL-19 INCH ALUMINUM FR8.5J RR9.5J,TYPE F:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main4261A-53030i200712-200908

19X9J, #,LH,TYPE B:REF.ILL.

main4261A-53040supersedes 4261A-53200i200712-200908

19X9J, #,RH,TYPE C:REF.ILL.; 19X9J, #,TIRE & DISC WHEEL-225/40R18 ALUMINUM,RH,TYPE C:REF.ILL.

main42611-30B20×2i200712

18X8JJ, #,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE D:REFER ILLUST.

main42611-53220i200712

19X9J, #,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,LH,TYPE B:REF.ILL.

main42611-53230i200712

19X9J, #,TIRE & DISC WHEEL-19 INCH POLISHED ALUMINUM,RH,TYPE C:REF.ILL.

main4261A-53200×2i200908

19X9J, #,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE E:REFER ILLUST.; 19X9J, #,TYPE E:REFER ILLUST.

main4261A-53280×2i201108

19X9.5J, #,TIRE & DISC WHEEL-19 INCH ALUMINUM FR8.5J RR9.5J,TYPE F:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110×4i200712

*ALU,TYPE B:REFER ILLUST.

main42603-30550×4i201208

*CHR,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE B:REFER ILLUST.

main42603-30590×4i200712-201208

*CHR,TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4i200712

TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200712

TIRE & DISC WHEEL-225/40R18 ALUMINUM,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-05029×4i200712

TIRE & DISC WHEEL-225/40R18 ALUMINUM

42652TIRE

main42652-53510supersedes 42652-53540i200712-200905

225/40R19 *B/S; 225/40R19 *B/S,TIRE & DISC WHEEL-225/40R18 ALUMINUM

main42652-53511supersedes 42652-53540i200906-200908

225/40R19 *B/S,TIRE & DISC WHEEL-225/40R18 ALUMINUM

main42652-53530supersedes 42652-53540i200712-200908

225/40R19 MICHELIN,TIRE & DISC WHEEL-225/40R18 ALUMINUM

main42652-53640×4i200712-201408

225/40R18 *B/S,TIRE & DISC WHEEL-225/40R18 ALUMINUM

main42652-53650×2supersedes 42652-53661i200712-200905

225/40R19 *B/S; 225/40R19 *B/S,TIRE & DISC WHEEL-225/40R18 ALUMINUM

main42652-53651×2supersedes 42652-53661i200906-201408

225/40R19 *B/S; 225/40R19 *B/S,TIRE & DISC WHEEL-225/40R18 ALUMINUM

42652ATIRE (FOR SPARE)

main42652-53550i200712

T135/70R18 *B/S

10 parts on this diagram · 2 diagrams in section
