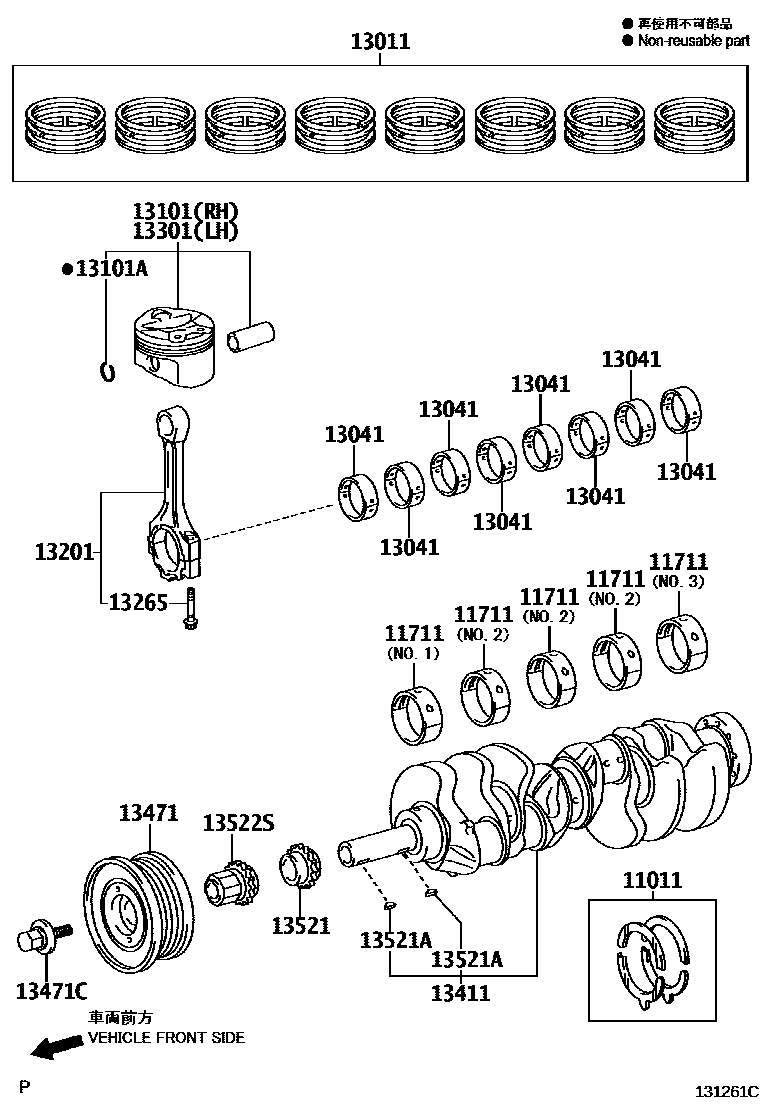

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARKUPPER3LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER4,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.2,REFER R/M
MARKUPPER5LOWER5,NO.2,REFER R/M
MARKUPPER5LOEWR6,NO.2,REFER R/M
MARKUPPER6LOWER6,NO.2,REFER R/M
MARKUPPER6LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER7,NO.2,REFER R/M
MARKUPPER7LOWER8,NO.2,REFER R/M
MARKUPPER8LOWER8,NO.2,REFER R/M
MARKUPPER4LOWER5,NO.3,REFER R/M
MARKUPPER5LOWER5,NO.1,3 *RRM
MARKUPPER5LOWER6,NO.3,REFER R/M
MARKUPPER6LOWER6,NO.1,3 *RRM
MARKUPPER6LOWER7,NO.3,REFER R/M
MARKUPPER7LOWER7,NO.3,REFER R/M
MARKUPPER7LOWER8,NO.3,REFER R/M
MARKUPPER8LOWER8,NO.3,REFER R/M
MARKUPPWE8LOWER9,NO.3,REFER R/M
MARKUPPER9LOWER9,NO.1,3 *RRM
MARKUPPER4LOWER5,NO.1,REFER R/M
MARKUPPER5LOWER5,NO.1,REFER R/M
MARKUPPER5LOWER6,NO.1,REFER R/M
MARKUPPER6LOWER6,NO.1,REFER R/M
MARKUPPER6LOWER7,NO.1,REFER R/M
MARKUPPER7LOWER7,NO.1,REFER R/M
MARKUPPER7LOWER8,NO.1,REFER R/M
MARKUPPER8LOWER8,NO.1,REFER R/M
MARKUPPER8LOWER9,NO.1,REFER R/M
MARKUPPER9LOWER9,NO.1,REFER R/M
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK7,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13522SSPROCKET, CRANKSHAFT TIMING, LH
15 parts on this diagram · 1 diagram in section
