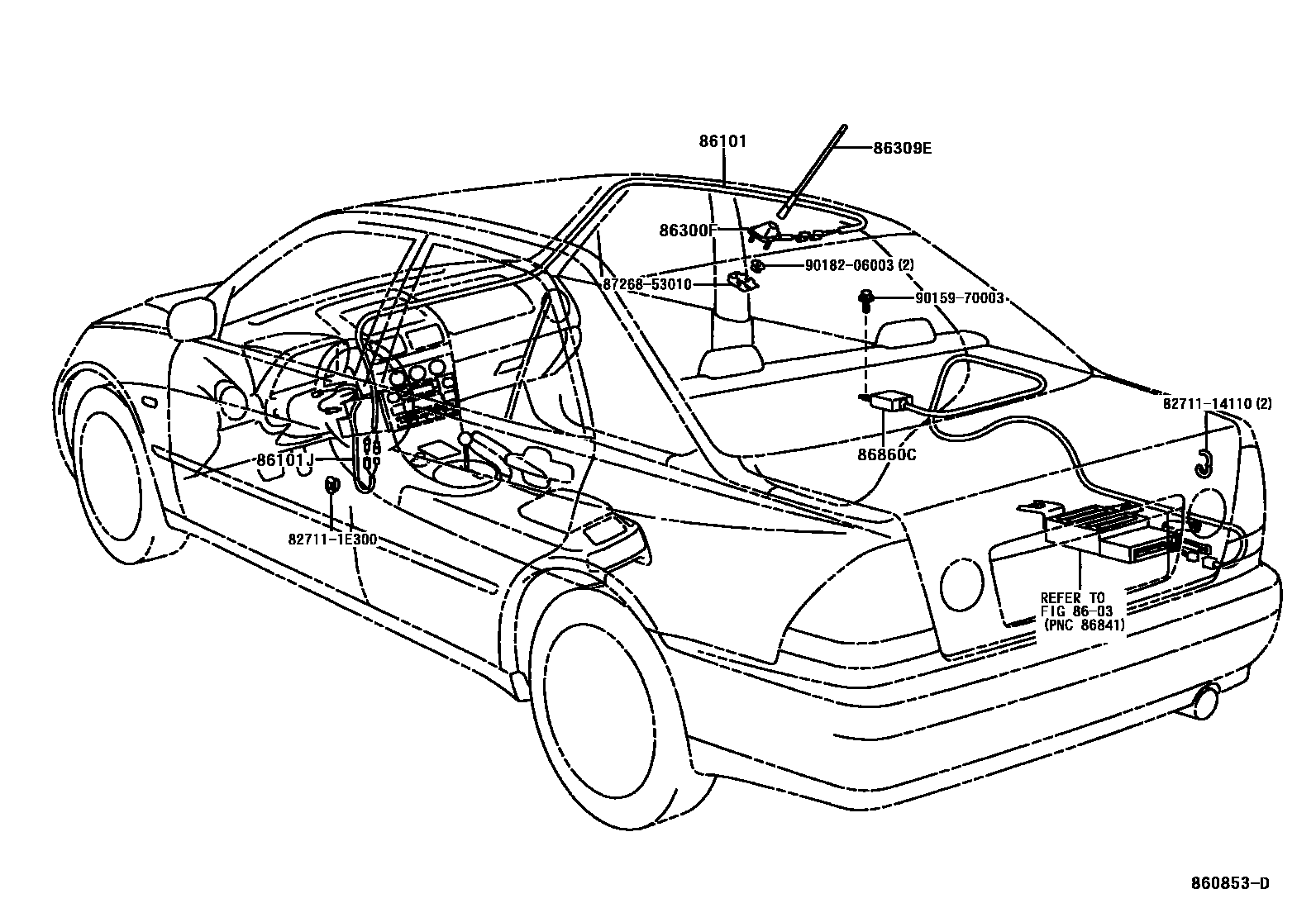

ANTENNA

0001 1 0002 1 0003 1

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86101CORD SUB-ASSY, ANTENNA

main86101-53010iGXE10..RHD199901-200107

main86101-53020iGXE10..RHD199901-200107

W(MOON ROOF)

main86101-53030iGXE10..LHD199901-200107

main86101-53040iGXE10..LHD199901-200107

W(MOON ROOF)

main86101-53130iGXE10,JCE10..RHD..SED200107-200507

main86101-53140iGXE10,JCE10..RHD..SED200107-200507

W(MOON ROOF)

main86101-53150iGXE10,JCE10..LHD..SED200107-200507

main86101-53160iGXE10,JCE10..LHD..SED200107-200507

W(MOON ROOF)

main86101-53250iGXE10,JCE10..LHD..WG200107-200507

main86101-53260iGXE10,JCE10..LHD..WG200107-200507

W(MOON ROOF)

main86101-53310iGXE10,JCE10..RHD..WG200107-200507

main86101-53320iGXE10,JCE10..RHD..WG200107-200507

W(MOON ROOF)

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-53050iGXE10199901-200005

main86101-53051iGXE10..RHD200005-200107

main86101-53120iGXE10..LHD200005-200107

main86101-53330iGXE10,JCE10..RHD200107-200507

main86101-53350iGXE10,JCE10..LHD200107-200507

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-53020iGXE10..EUR199901-200107

main86300-53030iGXE10..ARL199901-200107

TAIWAN SPEC

main86300-53060iGXE10,JCE10..SED..EUR200107-200507

main86300-53070iGXE10,JCE10..ARL200107-200507

TAIWAN OR KOREA OR CHINA SPEC

main86300-53100iGXE10,JCE10..WG200107-200507

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-53020iGXE10199901-200507

86860CANTENNA ASSY, NAVIGATION

main86860-53010iGXE10..EUR199901-200004

main86860-53011iGXE10..EUR200005-200107

main86860-53020iGXE10,JCE10..SED200107-200507

main86860-53030iGXE10,JCE10..WG200107-200507

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

8726853010COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-53010

9015970003

main90159-70003

9018206003

main90182-06003
