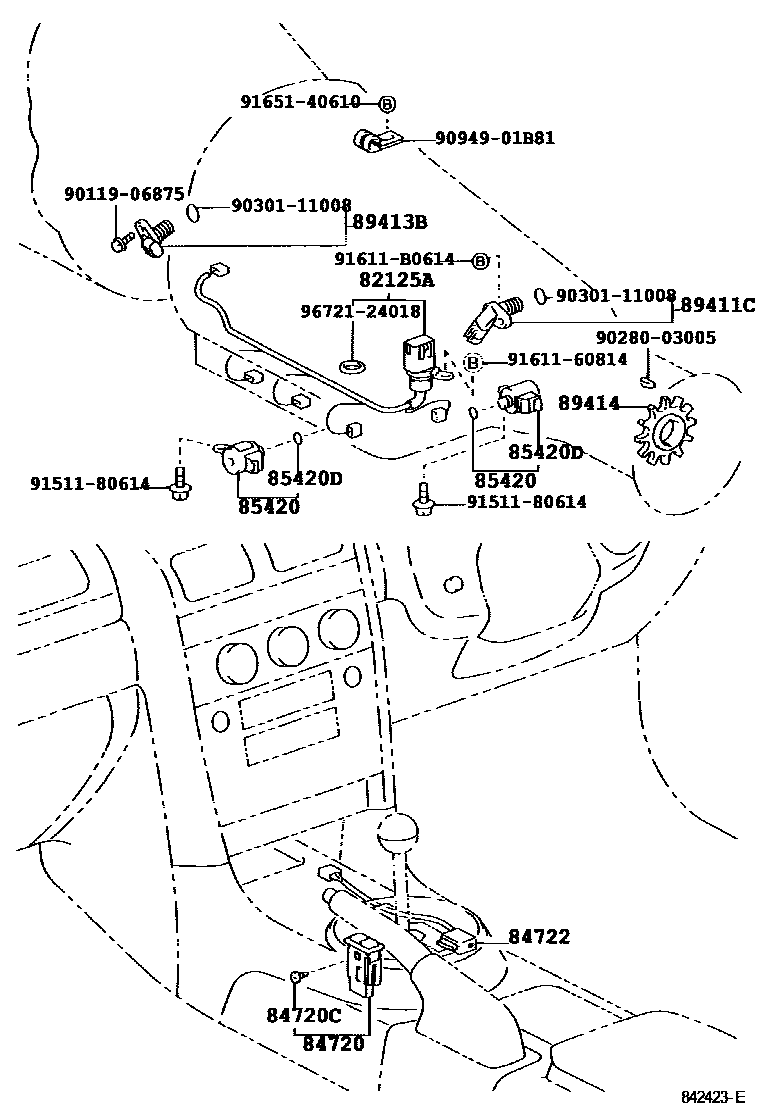

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

82125AWIRE, TRANSMISSION

main82125-22250iGXE10..ATM199901-200107

main82125-30460iJCE10200107

84720SWITCH ASSY, PATTERN SELECT

main84720-53010iGXE10..ATM199901-200107

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10420iGXE10..ATM199901-200107

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-53010iGXE10..RHD..ATM199901-200107

main84722-53030iGXE10..LHD..ATM199901-200107

85420SOLENOID ASSY, TRANSMISSION

main35250-30020×2iGXE10..ATM200108-200301

AISIN

main35250-30030×2iGXE10..ATM200108-200301

DENSO

main35250-50010iJCE10200108

NO.1

main35250-50030iJCE10200108

NO.2

main85420-22130×2iGXE10..ATM200107-200108

main85420-30240iJCE10200107-200108

NO.1

main85420-30260iJCE10200107-200108

NO.2,DENSO

main85420-30270iJCE10200107-200108

NO.2,AISIN

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iGXE10..ATM199901-200107

89411CSENSOR, SPEED

main89411-50010iGXE10..ATM199901-200107

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iGXE10..ATM199901-200107

89414ROTOR, SENSOR

main89414-22020iGXE10..ATM199901-200107

main89414-30040iJCE10200107

9011906875

main90119-06875

9028003005

main90280-03005

9030111008

main90301-11008

9094901B81

main90949-01B81

9151180614

main91511-80614

9161160814

main91611-60814

91611B0614

main91611-B0614

9165140610

main91651-40610

9672124018

main96721-24018

18 parts on this diagram · 4 diagrams in section
