FOG LAMP

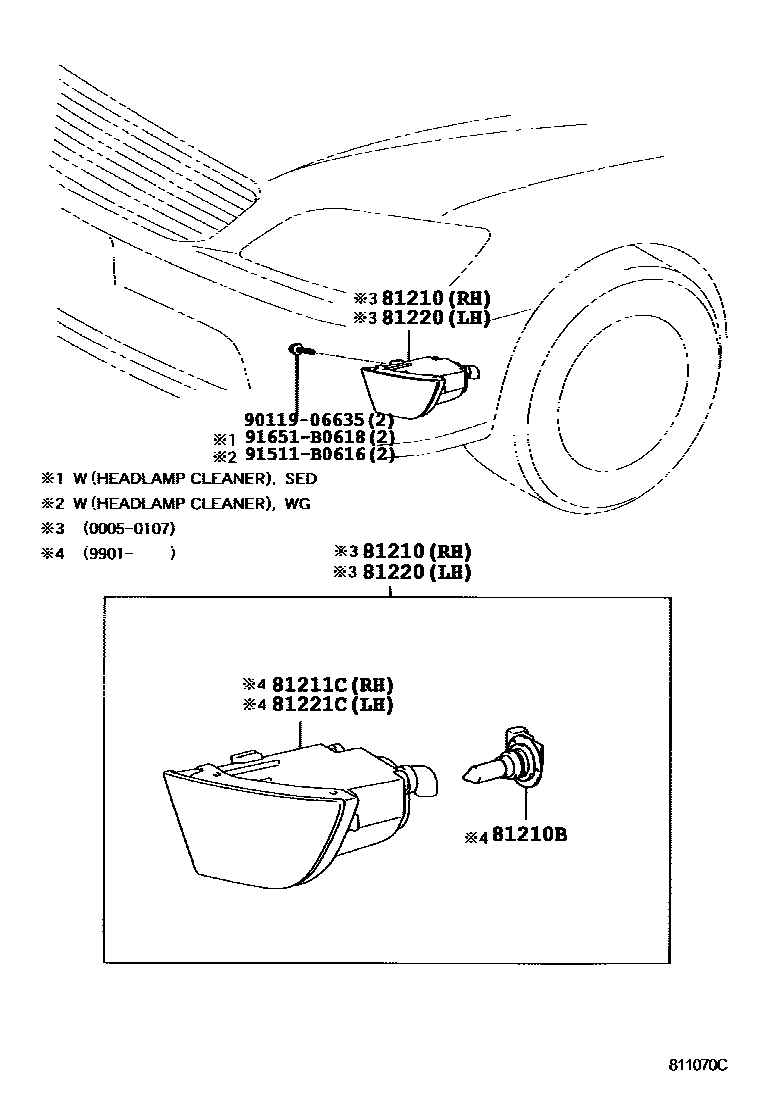

Parts diagram

81210LAMP ASSY, FOG

main81210-53010i199901-200005

main81210-53011i200005-200107

81210BBULB, FOG LAMP

main90981-13018×2i200208-200507

12V 55W,HALOGEN

main90981-13047×2i200107-200208

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-53010i199901-200005

main81211-53011i200005-200107

WHITE

main81211-53040i200107-200208

YELLOW

main81211-53050i200107-200208

WHITE

main81211-53070i200107-200208

YELLOW

main81211-53110i200208-200308

WHITE

main81211-53120i200208-200308

YELLOW

main81211-53150i200208-200308

WHITE

main81211-53160i200208-200308

YELLOW

main81211-53200i200308-200507

WHITE

main81211-53210i200308-200507

YELLOW

main81211-53240i200308-200507

WHITE

main81211-53250i200308-200507

YELLOW

main81211-53260i200401

ENGLAND SPEC,WHITE

main81211-53270i200401

ENGLAND SPEC,YELLOW

81220LAMP ASSY, FOG, LH

main81220-53010i199901-200005

main81220-53011i200005-200107

81221CLAMP UNIT, FOG LAMP, LH

main81221-53010i199901-200005

main81221-53011i200005-200107

WHITE

main81221-53040i200107-200208

YELLOW

main81221-53050i200107-200208

WHITE

main81221-53070i200107-200208

YELLOW

main81221-53110i200208-200308

WHITE

main81221-53120i200208-200308

YELLOW

main81221-53150i200208-200308

WHITE

main81221-53160i200208-200308

YELLOW

main81221-53200i200308-200507

WHITE

main81221-53210i200308-200507

YELLOW

main81221-53240i200308

WHITE

main81221-53250i200308

YELLOW

main81221-53260i200401

ENGLAND SPEC,WHITE

main81221-53270i200401

ENGLAND SPEC,YELLOW

9011906635

main90119-06635

91511B0616

main91511-B0616

91651B0618

main91651-B0618

8 parts on this diagram · 3 diagrams in section
