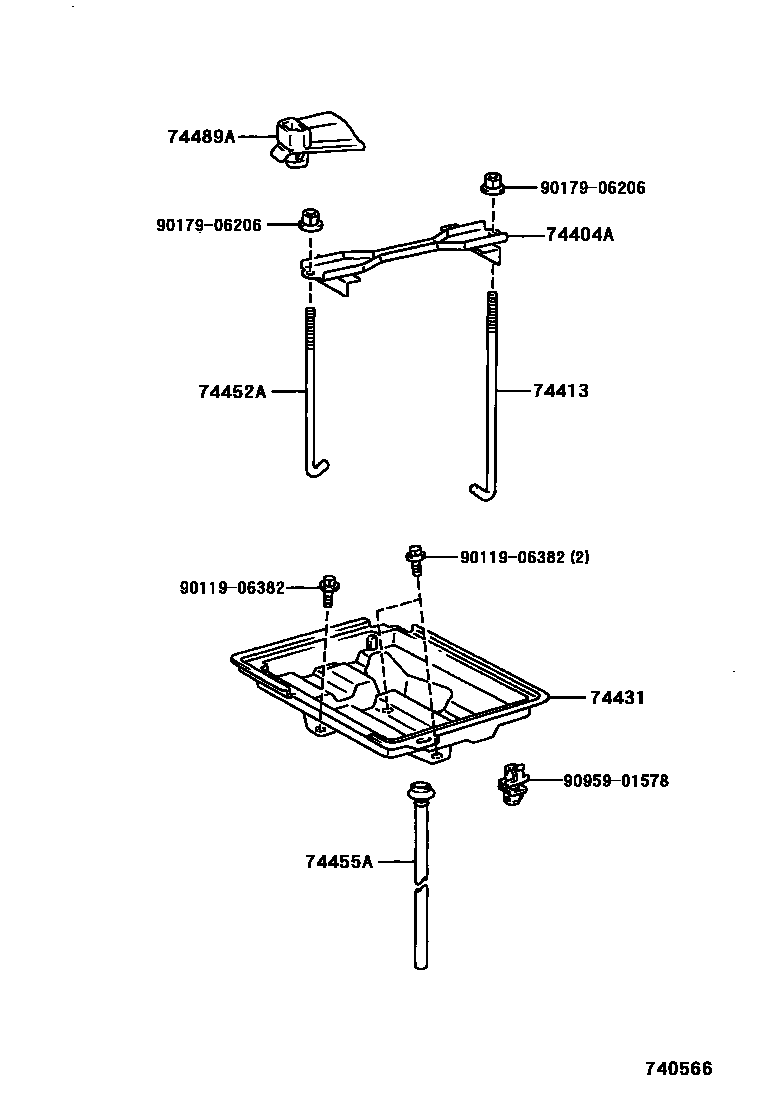

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280iGXE10;JCE10..RHD200107

main74404-53020iJCE10..LHD200107

74413BOLT, BATTERY CLAMP

main74451-51010iGXE10,JCE10200107

74431TRAY, BATTERY

main74431-51010iGXE10..RHD199901-200107

main74431-53010iGXE10..LHD199901-200107

main74431-53020iJCE10..LHD200107

74452ABOLT, BATTERY CLAMP, NO.2

main74452-51010iGXE10199901-200107

74455AHOSE, BATTERY DRAIN

main74455-30020iGXE10199901-200107

74489ACOVER, BATTERY CLAMP

main74489-51010iGXE10..RHD199901-200107

main74489-53010iGXE10,JCE10..LHD200107

9011906382

main90119-06382

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 1 diagram in section
