6712LOCK CYLINDER SET

→ Go to FIG 67-12

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-53010i199901-200107

main69110-53020i199901-200107

main69110-53030i199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-53020i199901-200107

main69120-53030i199901-200107

main69120-53040i199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-47010-A1i199901-200107

IVORY,TRIM0#

main69205-47010-C0i199901-200107

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014i199901-200107

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-47010-A1i199901-200107

IVORY,TRIM0#

main69206-47010-C0i199901-200107

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-53010-A0i199901-200107

SUPER WHITE 2,040

main69210-53010-A1i199901-200107

SU.WHITE PM,051

main69210-53010-A2i200107

WHITE PEARL CS.,062

main69210-53010-B0i199901-200107

SILVER ME.,1C0

main69210-53010-B1i199901-200107

DK.GRAY M.M.,1C6

main69210-53010-B2i200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

main69210-53010-C0i199901-200107

BLACK,202

main69210-53010-D0i199901-200107

RED M.M.,3N3

main69210-53010-D1i200107

SUPER RED 5,3P0

main69210-53010-E0i200308

BEIGE ME.,4R4

main69210-53010-F0i200005-200308

SUPER BRIGHT YELLOW,576

main69210-53010-F1i200107-200308

GOLD ME.,585

main69210-53010-G0i199901-200107

DK. GREEN MC.,6Q7

main69210-53010-G1i200107

DARK GREEN MC.,6R4

main69210-53010-J0i199901-200107

BLUE MC.,8M6

main69210-53010-J2i200107-200308

DK.BLUE MC.,8N8

main69210-53010-J4i200308

GRAYISH BLUE ME.,8N6

main69210-53010-J5i200308

DK.BLUE M.M.,8P4

main69210-53020-A0i199901-200107

SUPER WHITE 2,040

main69210-53020-A1i199901-200107

SU.WHITE PM,051

main69210-53020-A2i200107

WHITE PEARL CS.,062

main69210-53020-B0i199901-200107

SILVER ME.,1C0

main69210-53020-B1i199901-200107

DK.GRAY M.M.,1C6

main69210-53020-B2i200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

main69210-53020-C0i199901-200107

BLACK,202

main69210-53020-D0i199901-200107

RED M.M.,3N3

main69210-53020-D1i200107

SUPER RED 5,3P0

main69210-53020-E0i200308

BEIGE ME.,4R4

main69210-53020-F0i200005-200308

SUPER BRIGHT YELLOW,576

main69210-53020-F1i200107-200308

GOLD ME.,585

main69210-53020-G0i199901-200107

DK. GREEN MC.,6Q7

main69210-53020-G1i200107

DARK GREEN MC.,6R4

main69210-53020-J0i199901-200107

BLUE MC.,8M6

main69210-53020-J1i200107-200308

DK.BLUE MC.,8N8

main69210-53020-J2i200308

GRAYISH BLUE ME.,8N6

main69210-53020-J3i200308

DK.BLUE M.M.,8P4

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-53010-A0i199901-200107

SUPER WHITE 2,040

main69220-53010-A1i199901-200107

SU.WHITE PM,051

main69220-53010-A2i200107

WHITE PEARL CS.,062

main69220-53010-B0i199901-200107

SILVER ME.,1C0

main69220-53010-B1i199901-200107

DK.GRAY M.M.,1C6

main69220-53010-B2i200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

main69220-53010-C0i199901-200107

BLACK,202

main69220-53010-D0i199901-200107

RED M.M.,3N3

main69220-53010-D1i200107

SUPER RED 5,3P0

main69220-53010-E0i200308

BEIGE ME.,4R4

main69220-53010-F0i200005-200308

SUPER BRIGHT YELLOW,576

main69220-53010-F1i200107-200308

GOLD ME.,585

main69220-53010-G0i199901-200107

DK. GREEN MC.,6Q7

main69220-53010-G1i200107

DARK GREEN MC.,6R4

main69220-53010-J0i199901-200107

BLUE MC.,8M6

main69220-53010-J2i200107-200308

DK.BLUE MC.,8N8

main69220-53010-J4i200308

GRAYISH BLUE ME.,8N6

main69220-53010-J5i200308

DK.BLUE M.M.,8P4

main69220-53020-A0i199901-200107

SUPER WHITE 2,040

main69220-53020-A1i199901-200107

SU.WHITE PM,051

main69220-53020-A2i200107

WHITE PEARL CS.,062

main69220-53020-B0i199901-200107

SILVER ME.,1C0

main69220-53020-B1i199901-200107

DK.GRAY M.M.,1C6

main69220-53020-B2i200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

main69220-53020-C0i199901-200107

BLACK,202

main69220-53020-D0i199901-200107

RED M.M.,3N3

main69220-53020-D1i200107

SUPER RED 5,3P0

main69220-53020-E0i200308

BEIGE ME.,4R4

main69220-53020-F0i200005-200308

SUPER BRIGHT YELLOW,576

main69220-53020-F1i200107-200308

GOLD ME.,585

main69220-53020-G0i199901-200107

DK. GREEN MC.,6Q7

main69220-53020-G1i200107

DARK GREEN MC.,6R4

main69220-53020-J0i199901-200107

BLUE MC.,8M6

main69220-53020-J1i200107-200308

DK.BLUE MC.,8N8

main69220-53020-J3i200308

GRAYISH BLUE ME.,8N6

main69220-53020-J4i200308

DK.BLUE M.M.,8P4

69233ARETAINER, DOOR OUTSIDE HANDLE

main69233-53020i199901-200107

main69259-53020i199901-200107

69255DPROTECTOR, DOOR OUTSIDE HANDLE

main69255-48010i200107

main69255-53010i199901-200107

main69256-48010i200107

main69256-53010i199901-200107

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-A1i199901-200107

IVORY,TRIM0#

main69277-22090-C0i199901-200107

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-A1i199901-200107

IVORY,TRIM0#

main69278-22050-C0i199901-200107

BLACK,TRIM2#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1i199901-200107

IVORY,TRIM0#

main69283-30040-C0i199901-200107

BLACK,TRIM2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1i199901-200107

IVORY,TRIM0#

main69284-30040-C0i199901-200107

BLACK,TRIM2#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050i199901-200107

LH

main69293-12060i199901-200107

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-53020i199901-200307

main69310-53021i200307

main69310-53030i200208-200307

main69310-53030i199901-200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69310-53031i200307

main69310-53040i199901-200307

main69310-53041i200307

main69310-53060i200107-200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69310-53061i200307

W(DOUBLE DOOR LOCK)

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-53020i199901-200107

main69311-53030i199903-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69311-53030i200208

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-53020i199901-200107

main69312-53030i200208

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

main69312-53030i199903-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-53010i199901-200107

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-53010i199901-200107

69320LOCK ASSY, FRONT DOOR, LH

main69320-53020i199901-200307

main69320-53021i200307

main69320-53030i199901-200307

main69320-53031i200307

main69320-53040i199901-200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

main69320-53041i200307

main69320-53060i200107-200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69320-53061i200307

W(DOUBLE DOOR LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110i199901-200005

main69410-51010i200005-200107

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-30020i200005-200107

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-53010i199901-200107

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-53010i199901-200107

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-53020i199901-200107

TYPE A:REFER TO ILLUSTRATION

main69725-53030i199901-200107

TYPE B:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69725-53040i199901-200107

TYPE A:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69725-53050i199901-200107

TYPE B:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69725-53060i199901-200107

TYPE B:REFER TO ILLUSTRATION

main69725-53070i200107

TYPE B:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69725-53080i200107

TYPE A:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-53020i199901-200107

TYPE A:REFER TO ILLUSTRATION

main69726-53030i199901-200107

TYPE B:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69726-53040i199901-200107

TYPE A:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69726-53050i199901-200107

TYPE B:REFER TO ILLUSTRATION

main69726-53060i199901-200107

TYPE B:REFER TO ILLUSTRATION

main69726-53070i200107

TYPE B:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

main69726-53080i200107

TYPE A:REFER TO ILLUSTRATION & W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050i199901-200107

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-53010i199901-200107

main69750-53030i199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-53010i199901-200107

main69760-53030i199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWICH)

9010506260

main90105-06260

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950184

main90159-50184

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9018905071

main90189-05071

91511B0610

main91511-B0610

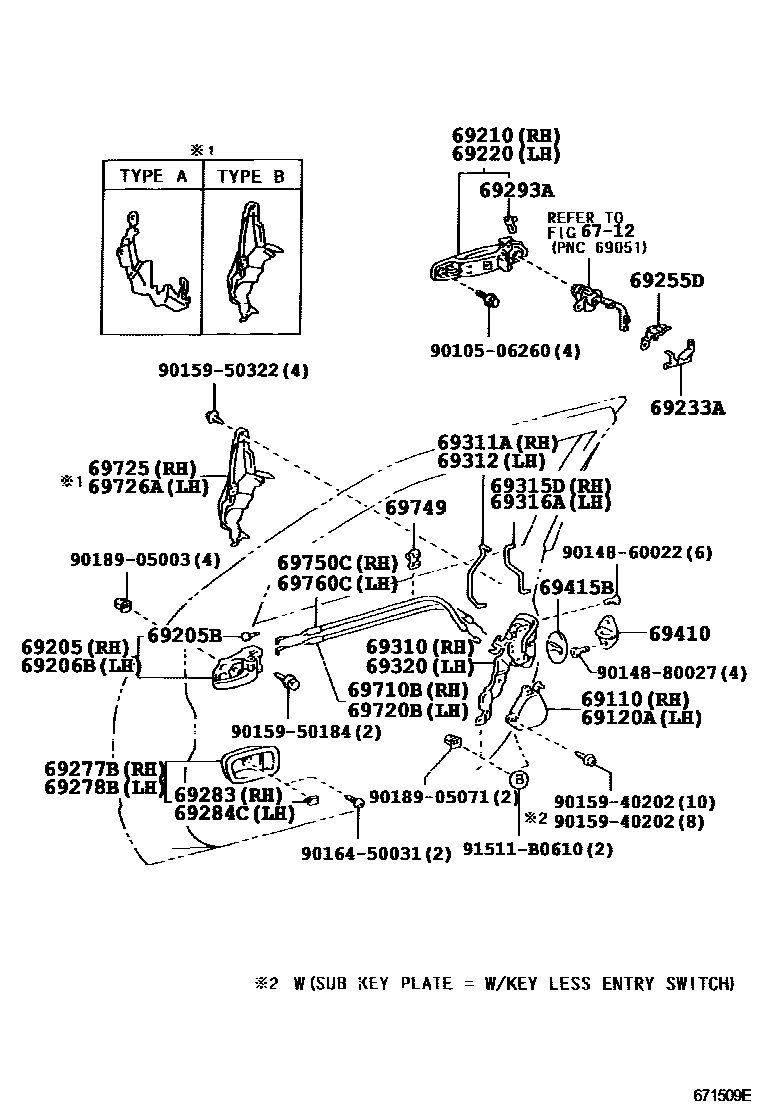

FRONT DOOR LOCK & HANDLE
