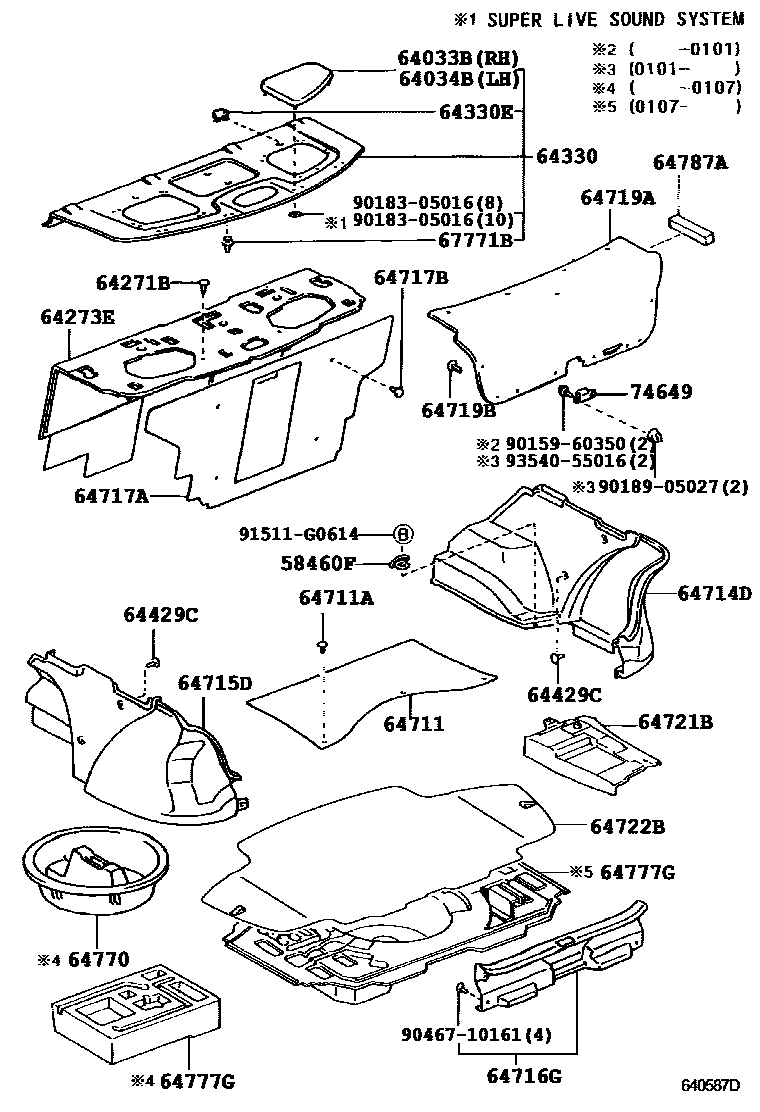

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010iGXE10199901-200507

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-53020-C0iGXE10199901-200005

W(SUPER LIVE SOUND SYSTEM),BLACK,TRIM0#,2#

main64033-53021-C0iGXE10200005-200107

W(SUPER LIVE SOUND SYSTEM),BLACK,TRIM0#,2#

main64383-53010-A0iGXE10..EUR199901-200107

IVORY,TRIM0#

main64383-53010-C0iGXE10,JCE10..SED..EUR200107

BLACK,TRIM2#

main64383-53010-C0iGXE10..EUR199901-200107

BLACK,TRIM0#,2#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-53020-C0iGXE10199901-200005

W(SUPER LIVE SOUND SYSTEM),BLACK,TRIM0#,2#

main64034-53021-C0iGXE10,JCE10..SED200005-200107

W(SUPER LIVE SOUND SYSTEM),BLACK,TRIM0#,2#

main64384-53010-A0iGXE10,JCE10..SED..EUR199901-200107

IVORY,TRIM0#

main64384-53010-C0iGXE10..EUR199901-200107

BLACK,TRIM0#,2#

main64384-53010-C0iGXE10,JCE10..SED..EUR200107

BLACK,TRIM2#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-22iGXE10199901-200107

BLACK,TRIM0#,2#

64273EPAD, ROOM PARTITION

main64273-53030iGXE10199901-200307

main64273-53031iGXE10,JCE10..SED200307

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-53010-A0iGXE10,JCE10..SED..EUR199901-200107

W(HIGH MOUNT STOP LAMP),IVORY,TRIM0#

main64330-53010-C0iGXE10..EUR199901-200107

W(HIGH MOUNT STOP LAMP),BLACK,TRIM2#

main64330-53040-A0iGXE10..ARL199901-200005

IVORY,TRIM0#

main64330-53040-C0iGXE10..ARL199901-200005

BLACK,TRIM2#

main64330-53041-A0iGXE10..ARL200005-200107

W(HIGH MOUNT STOP LAMP),IVORY,TRIM0#

main64330-53041-C0iGXE10..ARL200005-200107

W(HIGH MOUNT STOP LAMP),BLACK,TRIM2#

main64330-53060-A0iGXE10..EUR199901-200005

W(SUPER LIVE SOUND SYSTEM),IVORY,TRIM0#

main64330-53060-C0iGXE10..EUR199901-200005

W(SUPER LIVE SOUND SYSTEM),BLACK,TRIM2#

main64330-53061-A0iGXE10..EUR200005-200107

W(HIGH MOUNT STOP LAMP & SUPER LIVE SOUND SYSTEM),IVORY,TRIM0#

main64330-53061-C0iGXE10..EUR200005-200107

W(HIGH MOUNT STOP LAMP & SUPER LIVE SOUND SYSTEM),BLACK,TRIM2#

main64330-53070-A0iGXE10,JCE10..SED..EUR200107

IVORY,TRIM0#

main64330-53070-C0iGXE10,JCE10..SED..EUR200107

BLACK,TRIM2#

main64330-53100-A0iGXE10,JCE10..SED..EUR200107

W(SUPER LIVE SOUND SYSTEM),IVORY,TRIM0#

main64330-53100-C0iGXE10,JCE10..SED..EUR200107

W(SUPER LIVE SOUND SYSTEM),BLACK,TRIM2#

main64330-53110-A0iGXE10,JCE10..ARL200107

IVORY,TRIM0#

main64330-53110-C0iGXE10,JCE10..ARL200107

BLACK,TRIM2#

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-C1iGXE10..ARL199901-199904

GRAPHITE,TRIM2#

main90950-01436-C1iGXE10..ARL199904-200005

GRAPHITE,TRIM0#,2#

64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)

main90467-08186-C0iGXE10,JCE10..SED199901-200507

BLACK,TRIM0#,2#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-53010-C0iGXE10199901-200507

BLACK,TRIM0#,2#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-08186-C0iGXE10199901-200507

BLACK,TRIM0#,2#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-53020-C0iGXE10199901-200507

BLACK,TRIM0#,2#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-53010-C0iGXE10199901-200105

BLACK,TRIM0#,2#

main64715-53011-C0iGXE10200105-200507

BLACK,TRIM0#,2#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-53010-C0iGXE10199901-200507

BLACK,TRIM0#,2#

main64716-53020-C0iGXE10199901-200507

W(EMERGENCY TRIANGLE),BLACK,TRIM0#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-53010-C0iGXE10199901-200212

BLACK,TRIM0#,2#

main64717-53011-C0iGXE10,JCE10..SED200212-200307

BLACK,TRIM0#,2#

main64717-53012-C0iGXE10,JCE10..SED200307-200507

BLACK,TRIM0#,2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0iGXE10,JCE10..SED199901-200507

BLACK,TRIM0#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-53010-C0iGXE10199901-200212

BLACK,TRIM0#,2#

main64719-53011-C0iGXE10,JCE10..SED200212-200307

BLACK,TRIM0#,2#

main64719-53012-C0iGXE10,JCE10..SED200307-200507

BLACK,TRIM0#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iGXE10199901-200507

BLACK,TRIM0#,2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-53010iGXE10..EUR199901-200107

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-53020-C0iGXE10199901-200107

BLACK,TRIM0#,2#

main64722-53050-C0iGXE10,JCE10..SED200107-200307

BLACK,TRIM0#,2#

main64722-53051-C0iGXE10,JCE10..SED200307-200507

BLACK,TRIM0#,2#

64770COVER ASSY, SPARE WHEEL

main64771-24020iGXE10199901-200107

64777GCUSHION, SPARE WHEEL

main64777-53030iGXE10199901-200107

main64779-53080iGXE10,JCE10..SED200107-200212

main64779-53081iGXE10,JCE10..SED200212-200507

64787APAD, BACK DOOR TRIM

main64787-53010iGXE10199901-200507

67771BRETAINER, PACKAGE TRAY TRIM

main67771-26010iGXE10199901-200107

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30010iGXE10199901-200507

9015960350

main90159-60350

9018305016

main90183-05016

9018905027

main90189-05027

9046710161

main90467-10161

91511G0614

main91511-G0614

9354055016

main93540-55016

30 parts on this diagram · 1 diagram in section
