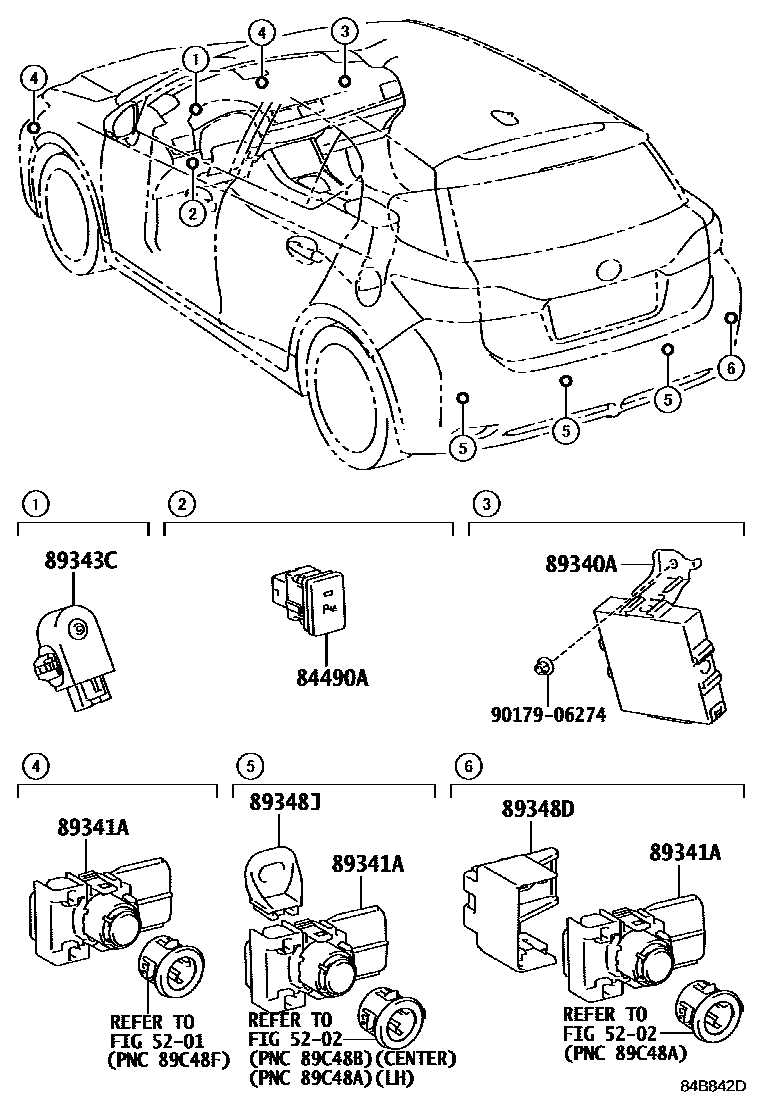

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH
'12 EUROPE PACKAGE
CLEARANCE & BACK SONAR-WITH
89341ASENSOR, ULTRASONIC, NO.1
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 ,2LH
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 ,2LJ
CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085 ,2MP
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 ,2LK ,2LL
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 ,2LK ,2LL
CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7 ,2MN
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,2LM ,3R1
CLEARANCE & BACK SONAR-WITH,SOLID RED,2LN ,3T2
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,2LP ,5B1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2LQ ,8U1
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
'12 EUROPE PACKAGE,MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
'12 EUROPE PACKAGE,PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
'12 EUROPE PACKAGE,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH,SONIC QUARTZ,085 ,2MP ,2QB ,2QC
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083 ,2LJ
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 ,2LL
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4 ,2LK
CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7 ,2MN
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223 ,2PZ
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,2LM ,2QA ,3R1
CLEARANCE & BACK SONAR-WITH,MADDER RED,2LN ,3T2
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
CLEARANCE & BACK SONAR-WITH,AMBER CS.,2PW ,4X2
CLEARANCE & BACK SONAR-WITH,LAVA ORANGE CS.,2QE ,4W7
CLEARANCE & BACK SONAR-WITH,BLAZING CARNELIAN CONTRAS,4Y1
CLEARANCE & BACK SONAR-WITH,TERRANE KHAKI M.M.,6X4
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2LQ ,8U1
CLEARANCE & BACK SONAR-WITH,DEEP BLUE MC.,2PK ,8X5
CLEARANCE & BACK SONAR-WITH,HEAT BLUE CONTRAST LAYERI,2QF ,8X1
CLEARANCE & BACK SONAR-WITH,SPARKLING METEOR ME.,2PX ,8X9
CLEARANCE & BACK SONAR-WITH,CELESTIAL BLUE GF.,8Y6
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH
89348DCLIP, ULTRASONIC SENSOR
'12 EUROPE PACKAGE
89348JCLIP, ULTRASONIC SENSOR
'12 EUROPE PACKAGE
9017906274
main90179-06274
9 parts on this diagram · 6 diagrams in section
