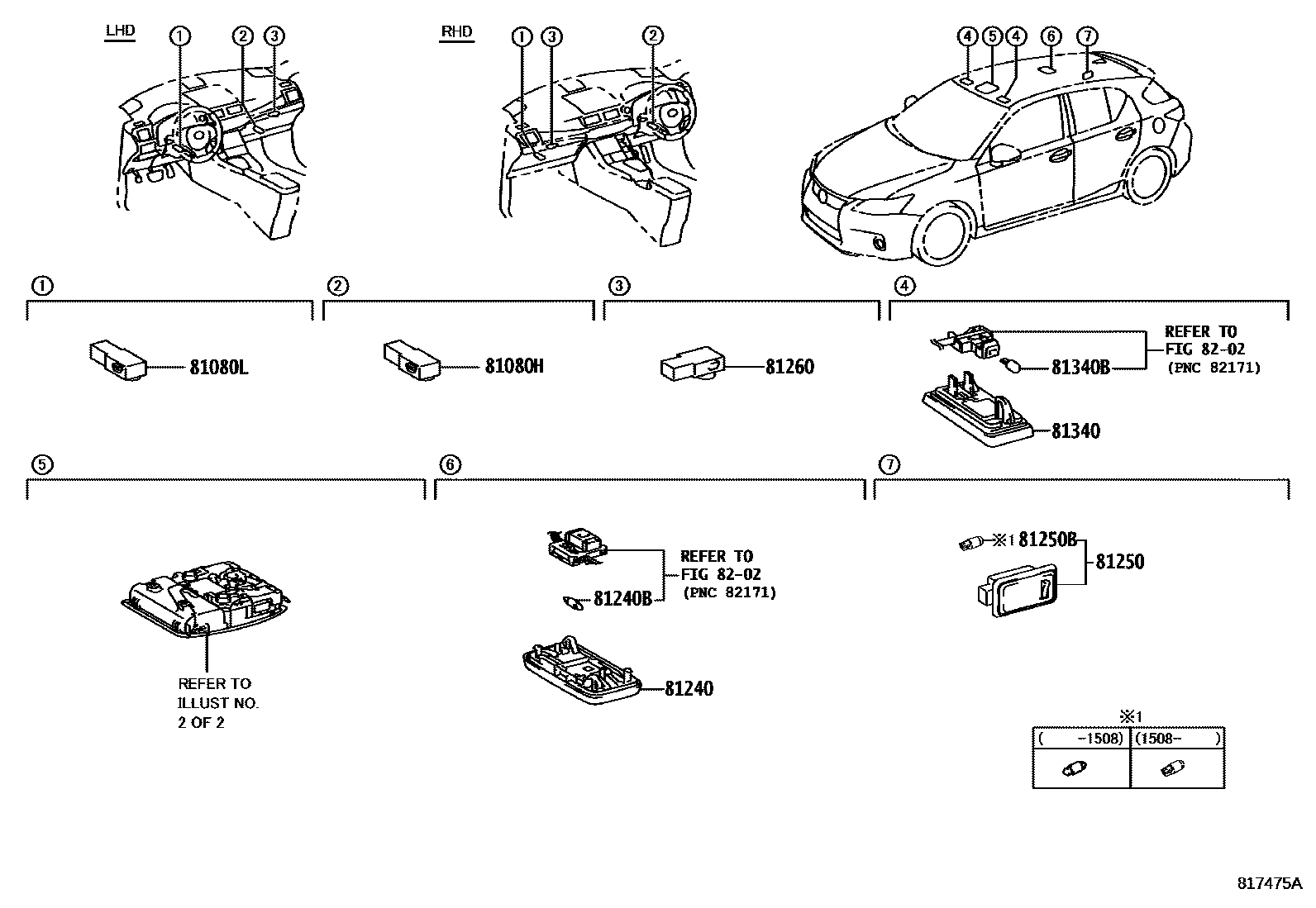

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81240LAMP ASSY, ROOM, NO.1
ECRU,TRIM0#,2#,3#,4#; ECRU,TRIM02,03,04,22,23,36,37,43,44,45
BLACK,TRIM03,04,23,35,37,38,42
ECRU,TRIM0#,11,2#,30,36,37,4#,5#,80; ECRU,TRIM0#,2#,3#,4#,5#,8#
LT.GRAY,TRIM0#,2#,3#,4#,8#
BLACK,TRIM03,04,10,20,23,3#,42,81
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
LT.GRAY,TRIM0#,2#,3#,4#,8#
F SPORT,BLACK,TRIM0#,2#,3#,4#,8#
81340BBULB (FOR VANITY LAMP)
12V 8W
8202WIRING & CLAMP
10 parts on this diagram · 2 diagrams in section
