BATTERY CARRIER

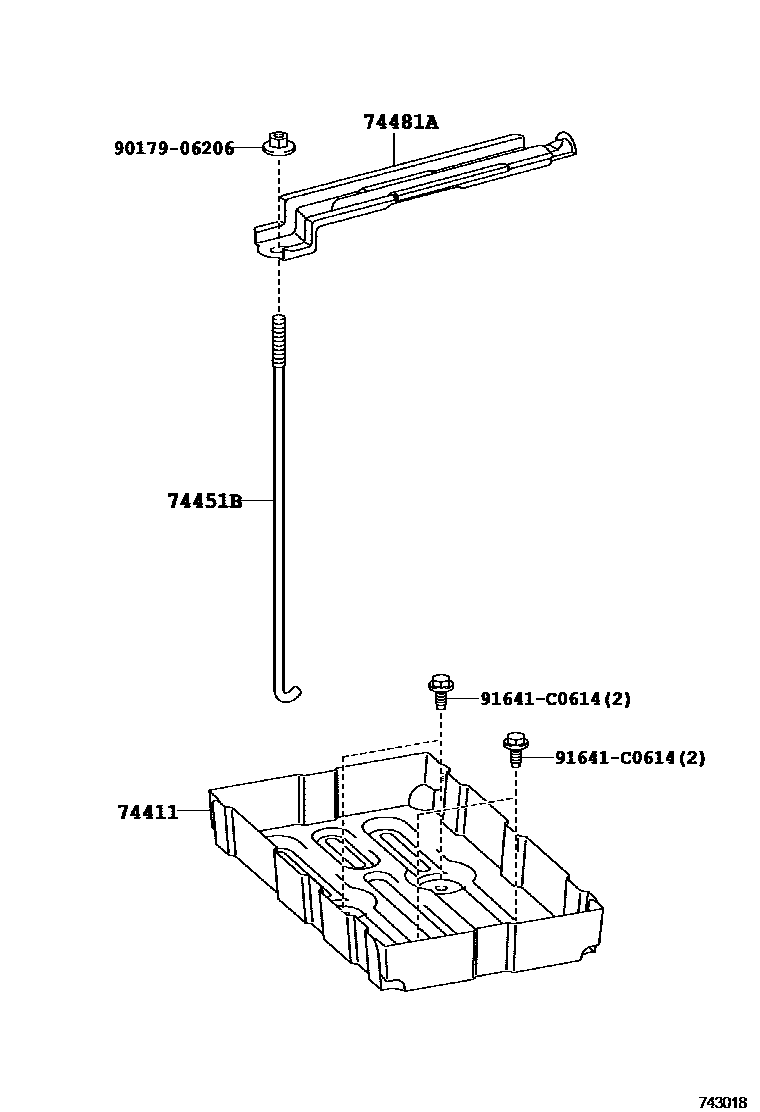

Parts diagram

74411CARRIER, BATTERY

main74413-76010i201012-201312

74451BBOLT, BATTERY CLAMP

main74451-16010i201207-201312

main74451-30110i201012-201206

74481ACLAMP, BATTERY

main74481-76010i201312-202009

9017906206

main90179-06206

91641C0614

main91641-C0614

5 parts on this diagram · 1 diagram in section
