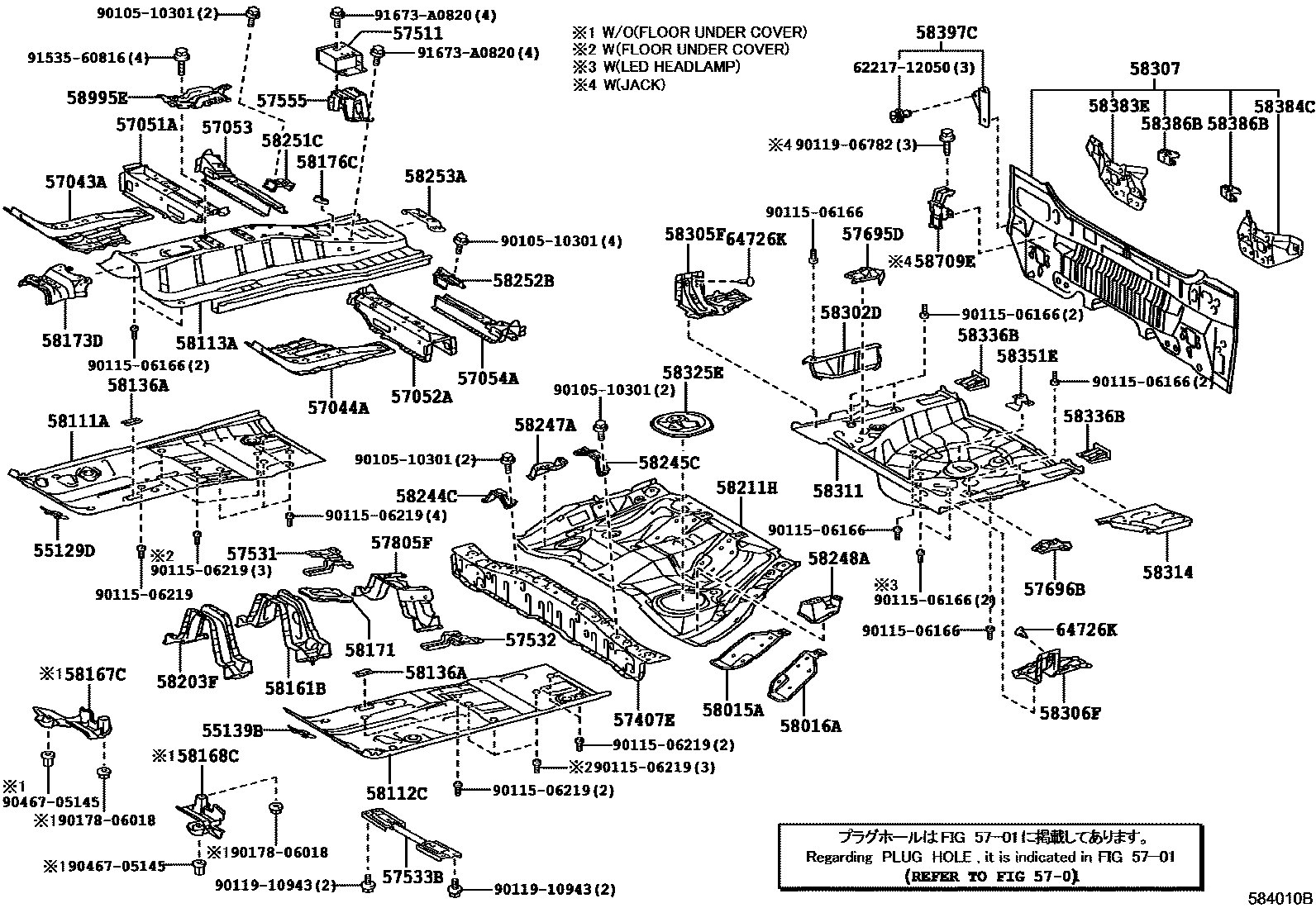

FLOOR PAN & LOWER BACK PANEL

55129DCOVER, DASH PANEL HOLE, RH

main55129-12040i201012-201312

55139BCOVER, DASH PANEL HOLE, LH

main55139-12050i201312-202009

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020i201312-202009

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020i201312-202009

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12060i201312-202009

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12010i201012-201312

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12010i201312-202009

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12010i201012-201312

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-12101i201312-201502

main57407-12103i201503-202009

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-76010i201012-201312

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010i201312-202009

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010i201312-202009

57533BBRACE, FRONT FLOOR, CENTER

main57501-12020i201012-201312

57555REINFORCEMENT, CENTER FLOOR, NO.5

main57555-76010i201012-201207

main57555-76011i201312-202009

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-76010i201012-201312

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57696-76010i201012-201312

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-12150i201012-201207

main57805-12151i201312-202009

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-47041i201012-201312

main58015-47042i201403-202009

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-47031i201312-202009

58111APAN, FRONT FLOOR, RH

main58111-76901i201312-202009

58112CPAN, FRONT FLOOR, LH

main58112-12901supersedes 58112-76901i201312-202009

FLOOR UNDER COVER-WITHOUT

58113APANEL, FRONT FLOOR, CENTER

main58113-76901i201012-201312

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040×2i201012-201312

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-12231i201312-202009

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-76020supersedes 58167-76010i201312-202009

FLOOR UNDER COVER-WITHOUT

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-12010supersedes 58168-76010i201312-202009

FLOOR UNDER COVER-WITHOUT

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12120i201012-201312

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-12020i201012-201312

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-12020i201012-201312

58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-12070i201012-201312

58211HPAN, CENTER FLOOR

main58211-47050i201407-202009

main58211-75020i201403-201406

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-47010i201012-201312

58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH

main58245-47010i201312-202009

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-47010i201012-201210

main58247-47011i201312-202009

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-47010i201012-201210

main58248-47011i201211-201312

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040i201312-202009

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040i201012-201312

58253ABRACKET, PARKING CABLE CLAMP

main58253-12060i201312-202009

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-76010i201312-202009

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-12040i201312-202009

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-12030i201312-202009

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-76010i201012-201311

main58307-76011i201312-201707

main58307-76012i201707-202009

58311PAN, REAR FLOOR

main58311-76010i201312-202009

58314PANEL, REAR FLOOR SIDE, LH

main58314-76010i201312-202009

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12140i201012-201312

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12090×2i201012-201312

58351EBRACKET, SPARE WHEEL CLAMP

main58351-12060i201012-201312

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-76010i201012-201312

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-76010i201312-202009

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-12020×2i201312-202009

58397CCOVER, BODY LOWER BACK, RH

main58397-76010i201312-202009

58709ECARRIER SUB-ASSY, JACK

main58709-76010i201012-201312

BEIJING SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; BRUNEI SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; INDONESIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; ISRAEL SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; KAZAKHSTAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; MALAYSIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; MOROCCO SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; PHILIPPINES SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; REUNION SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; RUSSIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; SINGAPORE SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; SPARE TIRE-TEMPORARY(T125/70D17); SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; THAILAND SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; TURKEY SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC; UKRAINE SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC

58995EBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-76030i201012-201312

64726KCLIP, LUGGAGE TRIM, REAR

main64726-12040×2i201012-201312

6221712050COVER, RAIL ROOF SIDE, INNER CENTER

main62217-12050

9010510301

main90105-10301

9011506166

main90115-06166

9011506219

main90115-06219
