53383BSEAL, HOOD TO COWL TOP

main53383-76010i201312-202009

main53383-76020i201012-201312

COLD AREA SPEC; WINDSHIELD DEICER-WITH

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7i201012-201312

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-76010i201012-201312

55700PANEL ASSY, FRONT

main55700-76010i201012-201108

main55700-76011i201108-201312

main55700-76020i201012-201108

main55700-76021i201108-201312

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-76010i201012-201311

main55701-76011i201312-202009

main55701-76020i201012-201311

main55701-76021i201312-202007

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-76010i201312-202009

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-76010i201012-201312

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-76010i201012-201312

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-76010i201012-201312

main55737-76020i201012-201312

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55734-76010i201312-202009

main55734-76020i201312-202007

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-76030supersedes 55708-76020i201312-202007

COLD AREA SPEC

main55708-76040i201312-202009

COLD AREA SPEC; COLD AREA SPEC&INTERMITTENT WIPER-AUTO

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2i201312-201703

BLACK

main90467-07076-C7×2i201703-202009

BLACK

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-76010i201012-201312

56111GLASS, WINDSHIELD

main56101-76040i201012-201208

*EHL,T=4.76,GREEN,SOUTH AFRICA SPEC&COLD AREA SPEC&AUDIO-AM/FM CD 6SPEAKER

main56101-76100supersedes 56101-76202i201012-201207

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76101supersedes 56101-76201i201208-201307

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76102supersedes 56101-76202i201308-201312

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76140i201012-201208

*LAM,T=4.76,GREEN,SOUTH AFRICA SPEC&AUDIO-AM/FM CD 6SPEAKER

main56101-76250supersedes 56101-76302i201012-201207

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76251supersedes 56101-76301i201208-201307

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76252supersedes 56101-76302i201312-201708

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76260i201012-201108

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-76261i201108-201207

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-76262supersedes 56101-76301i201208-201307

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-76263supersedes 56101-76302i201308-201312

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-76310supersedes 56101-76360i201012-201108

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-76311supersedes 56101-76361i201108-201208

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-76320supersedes 56101-76370i201012-201208

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-76350i201012-201208

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO

main56101-76351supersedes 56101-76491i201312-201708

*EHL,T=4.76,GREEN,CHILE SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,ISRAEL SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,LATIN AMERICA SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,PERU SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,PHILIPPINE SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,REUNION SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,TAIWAN SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,UKRAINE SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO

main56101-76362supersedes 56101-76491i201312-201708

*LAM,T=4.76,GREEN,CHILE SPEC; *LAM,T=4.76,GREEN,LATIN AMERICA SPEC; *LAM,T=4.76,GREEN,PERU SPEC; *LAM,T=4.76,GREEN,PHILIPPINE SPEC; *LAM,T=4.76,GREEN,REUNION SPEC; *LAM,T=4.76,GREEN,TAIWAN SPEC

main56101-76400i201012-201208

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO

main56101-76401supersedes 56101-76491i201312-201708

*LAM,T=4.76,GREEN,CHILE SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,ISRAEL SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,LATIN AMERICA SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,PERU SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,PHILIPPINE SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,REUNION SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,TAIWAN SPEC&INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,UKRAINE SPEC&INTERMITTENT WIPER-AUTO

main56101-76430supersedes 56101-76442i201012-201207

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD 6SPEAKER; *EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main56101-76440supersedes 56101-76442i201012-201207

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD 6SPEAKER; *LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main56101-76450supersedes 56101-76490i201208-201307

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-76451supersedes 56101-76491i201308-201312

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-76460supersedes 56101-76490i201208-201307

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO

main56101-76461supersedes 56101-76491i201312-201708

*EHL,T=4.76,GREEN,COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *EHL,T=4.76,GREEN,ISRAEL SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO&SATELLITE RADIO-WITH(DAB)

main56101-76470supersedes 56101-76490i201208-201307

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO

main56101-76471supersedes 56101-76491i201312-201708

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO; *LAM,T=4.76,GREEN,ISRAEL SPEC&INTERMITTENT WIPER-AUTO&SATELLITE RADIO-WITH(DAB)

main56101-76480supersedes 56101-76441i201208-201307

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-76481supersedes 56101-76442i201312-201708

*EHL,T=4.76,GREEN,COLD AREA SPEC

main56101-76500supersedes 56101-76491i201208-201307

*EHL,T=4.76,GREEN,BRAZIL SPEC&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-POLE(RADIO,COLOR); *EHL,T=4.76,GREEN,BRAZIL SPEC&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-RADIO,TEL,SATELLITE(CL)

main56101-76501supersedes 56101-76491i201308-201312

*EHL,T=4.76,GREEN,BRAZIL SPEC&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-POLE(RADIO,COLOR); *EHL,T=4.76,GREEN,BRAZIL SPEC&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-RADIO,TEL,SATELLITE(CL)

main56101-76510supersedes 56101-76491i201208-201307

*LAM,T=4.76,GREEN,BRAZIL SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-POLE(RADIO,COLOR); *LAM,T=4.76,GREEN,BRAZIL SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-RADIO,TEL,SATELLITE(CL)

main56101-76511supersedes 56101-76491i201308-201312

*LAM,T=4.76,GREEN,BRAZIL SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-POLE(RADIO,COLOR); *LAM,T=4.76,GREEN,BRAZIL SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&ANTENNA-RADIO,TEL,SATELLITE(CL)

main56101-76561supersedes 56101-76491i201312-201708

*EHL,T=4.76,GREEN,BRAZIL SPEC&COLD AREA SPEC&INTERMITTENT WIPER-AUTO

main56101-76571supersedes 56101-76491i201312-201708

*LAM,T=4.76,GREEN,BRAZIL SPEC&INTERMITTENT WIPER-AUTO

main56101-76600i201408-201708

*EHL,T=4.76,GREEN,COLD AREA SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-76650supersedes 56101-76670i201708-202007

COLD AREA SPEC

main56101-76660supersedes 56101-76670i201708-202007

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-76680supersedes 56101-76690i201708-202007

COLD AREA SPEC

main56101-76720supersedes 56101-76730i201708-202009

COLD AREA SPEC&INTERMITTENT WIPER-AUTO

main56101-76740supersedes 56101-76730i201708-202009

INTERMITTENT WIPER-AUTO

main56101-76760supersedes 56101-76730i201708-202009

COLD AREA SPEC&INTERMITTENT WIPER-AUTO&SATELLITE RADIO-WITH(DAB)

main56101-76770supersedes 56101-76730i201708-202009

INTERMITTENT WIPER-AUTO&SATELLITE RADIO-WITH(DAB)

main56101-76780supersedes 56101-76750i201708-202009

COLD AREA SPEC

main56101-76810i201708-202008

BRAZIL SPEC&INTERMITTENT WIPER-AUTO

main56101-76B50supersedes 56101-76670i201708-202007

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main56101-76B70supersedes 56101-76670i201708-202007

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main56101-76B80supersedes 56101-76690i201708-202007

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main56101-76B90supersedes 56101-76690i201708-202007

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main56101-76C20supersedes 56101-76730i201708-202009

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&INTERMITTENT WIPER-AUTO

main56101-76C40supersedes 56101-76730i201708-202009

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&INTERMITTENT WIPER-AUTO

main56101-76C50supersedes 56101-76750i201708-202009

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main56101-76C60supersedes 56101-76730i201708-202009

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&INTERMITTENT WIPER-AUTO&SATELLITE RADIO-WITH(DAB)

main56101-76C70supersedes 56101-76730i201708-202009

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&INTERMITTENT WIPER-AUTO&SATELLITERADIO-WITH(DAB)

main56101-76C80supersedes 56101-76750i201708-202009

COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i201012-201312

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201012-201312

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010i201312-202009

*D,L=2825; *D,L=2825,COLD AREA SPEC; *D,L=2825,COLD AREA SPEC&INTERMITTENT WIPER-AUTO; *D,L=2825,INTERMITTENT WIPER-AUTO

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-76010i201012-201312

9011906786

main90119-06786

9026903040

main90269-03040

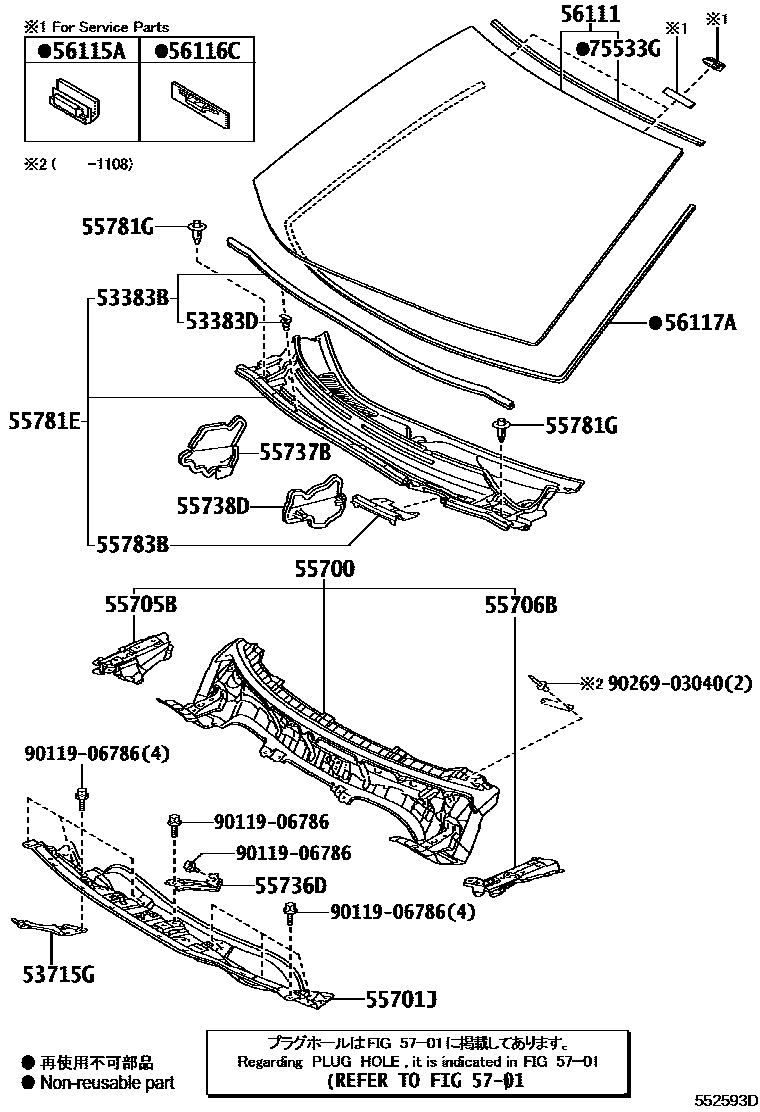

COWL PANEL & WINDSHIELD GLASS
