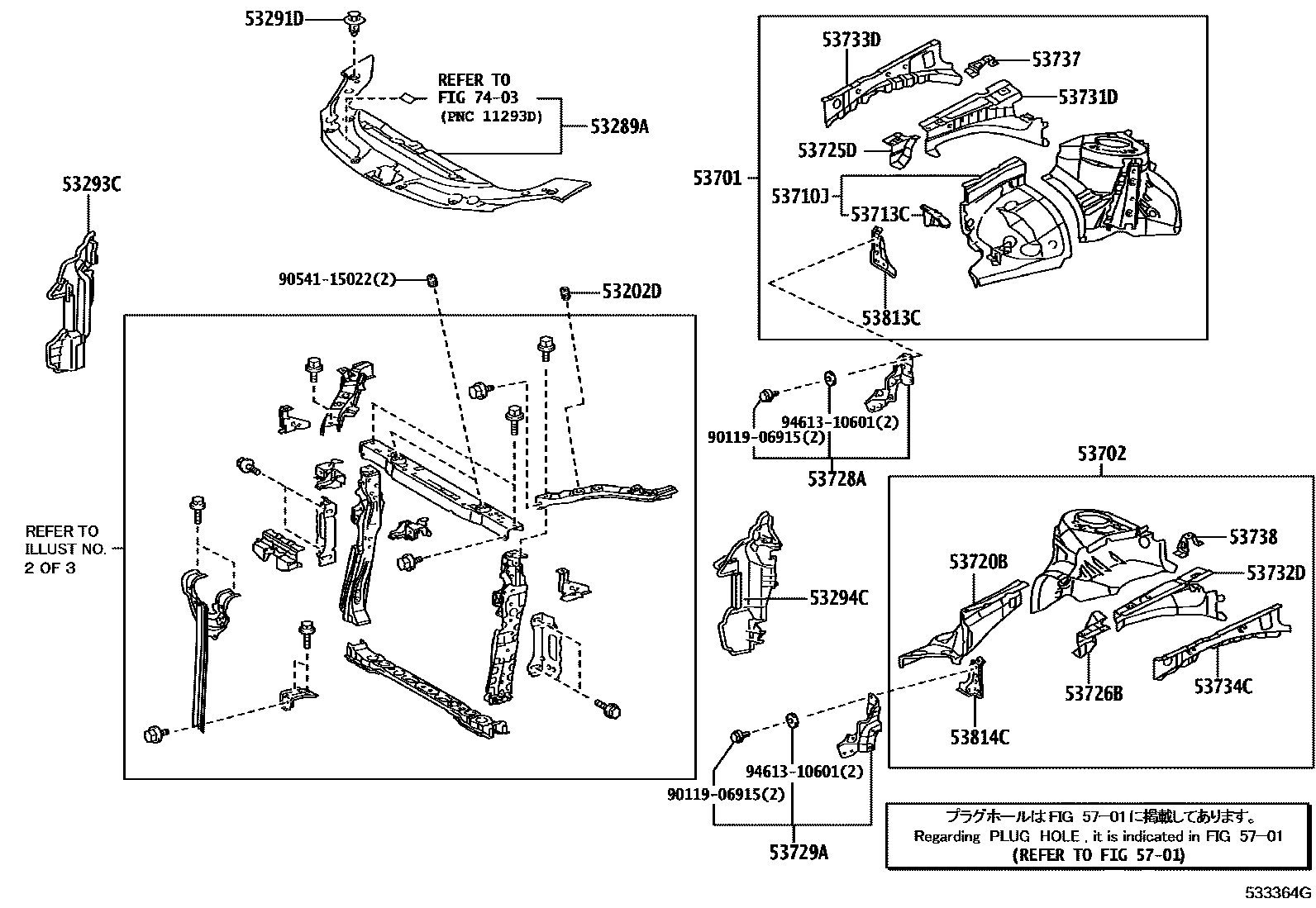

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT,FRONT FENDER0002 1RADIATOR SUPPORT,FRONT FENDER0003 1RADIATOR SUPPORT 0004 1DASH PANEL 0005 1DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-76010iZWA10201012-201312

53202DCUSHION, RADIATOR SUPPORT

main90541-15031×2iZWA10201012-201312

main90541-15111×2iZWA10201406-202009

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-76010iZWA10201012-201312

main53289-76011iZWA10201708-202009

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07211×9iZWA10201012-201210

main90467-07217×9iZWA10201211-201303

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-76010iZWA10201012-201312

main53293-76020iZWA10201312-202009

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-76010iZWA10201012-201312

main53294-76020iZWA10201312-202009

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-76010iZWA10201012-201312

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-76010iZWA10201012-201312

53710JAPRON ASSY, FRONT FENDER, RH

main53710-12030iZWA10201012-201312

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160iZWA10201012-201312

53720BAPRON ASSY, FRONT FENDER, LH

main53720-12030iZWA10201012-201312

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040iZWA10201012-201312

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040iZWA10201012-201312

53728ABRACKET, FENDER APRON, RH

main53803-76010iZWA10201312-202009

53729ABRACKET, FENDER APRON, LH

main53804-76010iZWA10201012-201312

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170iZWA10201012-201312

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150iZWA10201012-201312

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070iZWA10201012-201312

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070iZWA10201012-201312

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-76010iZWA10201012-201312

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-76010iZWA10201012-201312

53813CEXTENSION, FRONT FENDER, RH

main53813-47020iZWA10201012-201312

53814CEXTENSION, FRONT FENDER, LH

main53814-47020iZWA10201012-201312

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9011906915

main90119-06915

9054115022

main90541-15022

9461310601

main94613-10601

28 parts on this diagram · 5 diagrams in section
