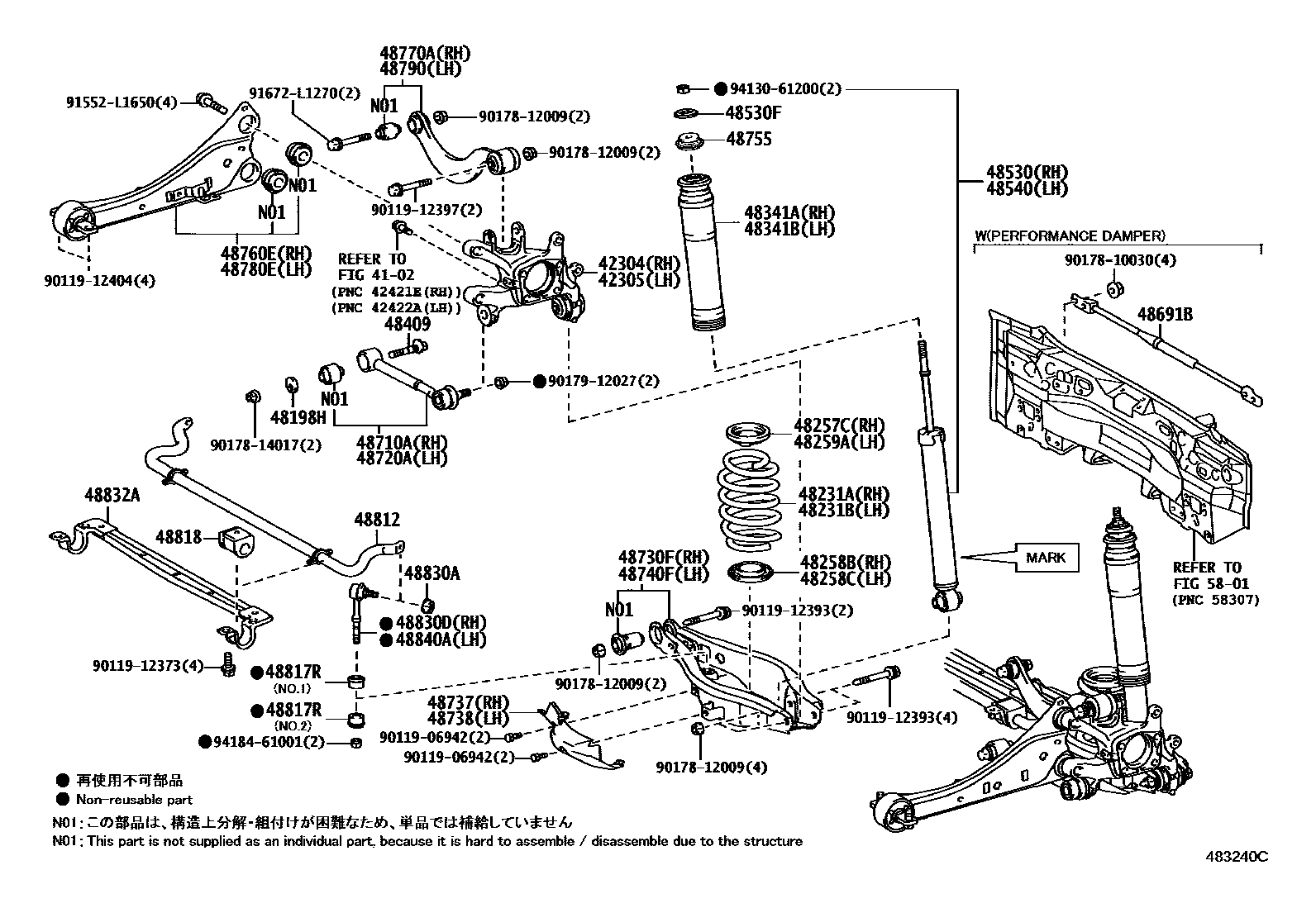

4102REAR AXLE SHAFT & HUB

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-12240i201012-201312

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-12240i201012-201312

48198HCAM, CAMBER ADJUST, NO.2

main48198-42010×2i201012-201312

48231ASPRING, COIL, REAR RH

main48231-76020i201312-202009

main48231-76010i201412-201508

THE CRAFTED LINE

main48231-76030i201111-201208

ADRIA SPEC&F SPORT; BELGIUM SPEC&F SPORT; BULGARIA SPEC&F SPORT; CENTRAL SPEC&F SPORT; CROATIA SPEC&F SPORT; EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; GERMANY SPEC&F SPORT; IRELAND SPEC&F SPORT; ISRAEL SPEC&F SPORT; KAZAKHSTAN SPEC&F SPORT; NORDIC SPEC&F SPORT; RUSSIA SPEC&F SPORT; SERBIA SPEC&F SPORT; UK SPEC&F SPORT; UKRAINE SPEC&F SPORT

48231BSPRING, COIL, REAR LH

main48231-76020i201012-201312

main48231-76010i201412-201508

THE CRAFTED LINE

main48231-76030i201111-201208

ADRIA SPEC&F SPORT; BELGIUM SPEC&F SPORT; BULGARIA SPEC&F SPORT; CENTRAL SPEC&F SPORT; CROATIA SPEC&F SPORT; EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; GERMANY SPEC&F SPORT; IRELAND SPEC&F SPORT; ISRAEL SPEC&F SPORT; KAZAKHSTAN SPEC&F SPORT; NORDIC SPEC&F SPORT; RUSSIA SPEC&F SPORT; SERBIA SPEC&F SPORT; UK SPEC&F SPORT; UKRAINE SPEC&F SPORT

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-75010i201312-202009

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-42020i201012-201312

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-42020i201012-201312

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-75010i201012-201312

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-75010i201312-202009

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-75010i201312-202009

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-42030×2i201312-202009

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-79055i201012-201304

MARK 48530-76040

main48530-79056i201304-201312

MARK 48530-76041

main48530-79057i201403-202009

MARK 48530-76042

main48530-79075i201111-201208

MARK 48530-76010,ADRIA SPEC&F SPORT; MARK 48530-76010,BELGIUM SPEC&F SPORT; MARK 48530-76010,BULGARIA SPEC&F SPORT; MARK 48530-76010,CENTRAL SPEC&F SPORT; MARK 48530-76010,CROATIA SPEC&F SPORT; MARK 48530-76010,EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; MARK 48530-76010,GERMANY SPEC&F SPORT; MARK 48530-76010,IRELAND SPEC&F SPORT; MARK 48530-76010,ISRAEL SPEC&F SPORT; MARK 48530-76010,KAZAKHSTAN SPEC&F SPORT; MARK 48530-76010,NORDIC SPEC&F SPORT; MARK 48530-76010,RUSSIA SPEC&F SPORT; MARK 48530-76010,SERBIA SPEC&F SPORT; MARK 48530-76010,UK SPEC&F SPORT; MARK 48530-76010,UKRAINE SPEC&F SPORT

main48530-79105i201111-201208

MARK 48530-76070,ADRIA SPEC; MARK 48530-76070,BELGIUM SPEC; MARK 48530-76070,BULGARIA SPEC; MARK 48530-76070,CENTRAL SPEC; MARK 48530-76070,CROATIA SPEC; MARK 48530-76070,EUROPE COUNTRIES SPEC(W/NAVIGATION); MARK 48530-76070,GERMANY SPEC; MARK 48530-76070,IRELAND SPEC; MARK 48530-76070,ISRAEL SPEC; MARK 48530-76070,KAZAKHSTAN SPEC; MARK 48530-76070,NORDIC SPEC; MARK 48530-76070,RUSSIA SPEC; MARK 48530-76070,SERBIA SPEC; MARK 48530-76070,UK SPEC; MARK 48530-76070,UKRAINE SPEC

main48530-79115i201208-201312

MARK 48530-76080,ADRIA SPEC&F SPORT; MARK 48530-76080,BELGIUM SPEC&F SPORT; MARK 48530-76080,BULGARIA SPEC&F SPORT; MARK 48530-76080,CENTRAL SPEC&F SPORT; MARK 48530-76080,EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; MARK 48530-76080,F SPORT; MARK 48530-76080,GERMANY SPEC&F SPORT; MARK 48530-76080,IRELAND SPEC&F SPORT; MARK 48530-76080,ISRAEL SPEC&F SPORT; MARK 48530-76080,KAZAKHSTAN SPEC&F SPORT; MARK 48530-76080,NORDIC SPEC&F SPORT; MARK 48530-76080,RUSSIA SPEC&F SPORT; MARK 48530-76080,SERBIA SPEC&F SPORT; MARK 48530-76080,UK SPEC&F SPORT; MARK 48530-76080,UKRAINE SPEC&F SPORT

main48530-79125i201208-201304

MARK 48530-76100,ADRIA SPEC; MARK 48530-76100,BELGIUM SPEC; MARK 48530-76100,BULGARIA SPEC; MARK 48530-76100,CENTRAL SPEC; MARK 48530-76100,CROATIA SPEC; MARK 48530-76100,EUROPE COUNTRIES SPEC(W/NAVIGATION); MARK 48530-76100,GERMANY SPEC; MARK 48530-76100,IRELAND SPEC; MARK 48530-76100,ISRAEL SPEC; MARK 48530-76100,KAZAKHSTAN SPEC; MARK 48530-76100,NORDIC SPEC; MARK 48530-76100,RUSSIA SPEC; MARK 48530-76100,SERBIA SPEC; MARK 48530-76100,UK SPEC; MARK 48530-76100,UKRAINE SPEC

main48530-79126i201304-201312

MARK 48530-76101,ADRIA SPEC; MARK 48530-76101,BELGIUM SPEC; MARK 48530-76101,BULGARIA SPEC; MARK 48530-76101,CENTRAL SPEC; MARK 48530-76101,EUROPE COUNTRIES SPEC(W/NAVIGATION); MARK 48530-76101,GERMANY SPEC; MARK 48530-76101,IRELAND SPEC; MARK 48530-76101,ISRAEL SPEC; MARK 48530-76101,KAZAKHSTAN SPEC; MARK 48530-76101,NORDIC SPEC; MARK 48530-76101,RUSSIA SPEC; MARK 48530-76101,SERBIA SPEC; MARK 48530-76101,UK SPEC; MARK 48530-76101,UKRAINE SPEC

main48530-79155i201410-201508

MARK 48530-76120,TAIWAN SPEC&THE CRAFTED LINE

48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

main90948-02159×2i201012-201312

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-79055i201012-201304

MARK 48530-76040

main48530-79056i201312-201403

MARK 48530-76041

main48530-79057i201403-202009

MARK 48530-76042

main48530-79075i201111-201208

MARK 48530-76010,ADRIA SPEC&F SPORT; MARK 48530-76010,BELGIUM SPEC&F SPORT; MARK 48530-76010,BULGARIA SPEC&F SPORT; MARK 48530-76010,CENTRAL SPEC&F SPORT; MARK 48530-76010,CROATIA SPEC&F SPORT; MARK 48530-76010,EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; MARK 48530-76010,GERMANY SPEC&F SPORT; MARK 48530-76010,IRELAND SPEC&F SPORT; MARK 48530-76010,ISRAEL SPEC&F SPORT; MARK 48530-76010,KAZAKHSTAN SPEC&F SPORT; MARK 48530-76010,NORDIC SPEC&F SPORT; MARK 48530-76010,RUSSIA SPEC&F SPORT; MARK 48530-76010,SERBIA SPEC&F SPORT; MARK 48530-76010,UK SPEC&F SPORT; MARK 48530-76010,UKRAINE SPEC&F SPORT

main48530-79105i201111-201208

MARK 48530-76070,ADRIA SPEC; MARK 48530-76070,BELGIUM SPEC; MARK 48530-76070,BULGARIA SPEC; MARK 48530-76070,CENTRAL SPEC; MARK 48530-76070,CROATIA SPEC; MARK 48530-76070,EUROPE COUNTRIES SPEC(W/NAVIGATION); MARK 48530-76070,GERMANY SPEC; MARK 48530-76070,IRELAND SPEC; MARK 48530-76070,ISRAEL SPEC; MARK 48530-76070,KAZAKHSTAN SPEC; MARK 48530-76070,NORDIC SPEC; MARK 48530-76070,RUSSIA SPEC; MARK 48530-76070,SERBIA SPEC; MARK 48530-76070,UK SPEC; MARK 48530-76070,UKRAINE SPEC

main48530-79115i201208-201312

MARK 48530-76080,ADRIA SPEC&F SPORT; MARK 48530-76080,BELGIUM SPEC&F SPORT; MARK 48530-76080,BULGARIA SPEC&F SPORT; MARK 48530-76080,CENTRAL SPEC&F SPORT; MARK 48530-76080,EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; MARK 48530-76080,F SPORT; MARK 48530-76080,GERMANY SPEC&F SPORT; MARK 48530-76080,IRELAND SPEC&F SPORT; MARK 48530-76080,ISRAEL SPEC&F SPORT; MARK 48530-76080,KAZAKHSTAN SPEC&F SPORT; MARK 48530-76080,NORDIC SPEC&F SPORT; MARK 48530-76080,RUSSIA SPEC&F SPORT; MARK 48530-76080,SERBIA SPEC&F SPORT; MARK 48530-76080,UK SPEC&F SPORT; MARK 48530-76080,UKRAINE SPEC&F SPORT

main48530-79125i201208-201304

MARK 48530-76100,ADRIA SPEC; MARK 48530-76100,BELGIUM SPEC; MARK 48530-76100,BULGARIA SPEC; MARK 48530-76100,CENTRAL SPEC; MARK 48530-76100,CROATIA SPEC; MARK 48530-76100,EUROPE COUNTRIES SPEC(W/NAVIGATION); MARK 48530-76100,GERMANY SPEC; MARK 48530-76100,IRELAND SPEC; MARK 48530-76100,ISRAEL SPEC; MARK 48530-76100,KAZAKHSTAN SPEC; MARK 48530-76100,NORDIC SPEC; MARK 48530-76100,RUSSIA SPEC; MARK 48530-76100,SERBIA SPEC; MARK 48530-76100,UK SPEC; MARK 48530-76100,UKRAINE SPEC

main48530-79126i201304-201312

MARK 48530-76101,ADRIA SPEC; MARK 48530-76101,BELGIUM SPEC; MARK 48530-76101,BULGARIA SPEC; MARK 48530-76101,CENTRAL SPEC; MARK 48530-76101,EUROPE COUNTRIES SPEC(W/NAVIGATION); MARK 48530-76101,GERMANY SPEC; MARK 48530-76101,IRELAND SPEC; MARK 48530-76101,ISRAEL SPEC; MARK 48530-76101,KAZAKHSTAN SPEC; MARK 48530-76101,NORDIC SPEC; MARK 48530-76101,RUSSIA SPEC; MARK 48530-76101,SERBIA SPEC; MARK 48530-76101,UK SPEC; MARK 48530-76101,UKRAINE SPEC

main48530-79155supersedes 48530-79145i201312-202009

MARK 48530-76120,F SPORT

48691BDAMPER, SUSPENSION TOWER

main48691-76020i201012-201312

PERFORMANCE DAMPER-WITH

main48691-76021i201508-201605

PERFORMANCE DAMPER-WITH

main48691-76022i201606-202009

PERFORMANCE DAMPER-WITH

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-72010i201012-201312

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-72010i201012-201312

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-75010i201012-201312

48737COVER, REAR SUSPENSION ARM, RH

main48737-75010i201012-201312

48738COVER, REAR SUSPENSION ARM, LH

main48738-75010i201012-201312

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-75010i201012-201312

48755SUPPORT, REAR SUSPENSION

main48755-12100×2i201012-201312

48760EARM ASSY, TRAILING, REAR RH

main48760-12010i201012-201312

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-12010i201012-201312

48780EARM ASSY, TRAILING, REAR LH

main48780-12140i201012-201312

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-12010i201012-201312

48812BAR, STABILIZER, REAR

main48812-75020i201312-202009

main48812-12450i201111-201312

ADRIA SPEC; BELGIUM SPEC; BULGARIA SPEC; CENTRAL SPEC; EUROPE COUNTRIES SPEC(W/NAVIGATION); GERMANY SPEC; IRELAND SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; NORDIC SPEC; RUSSIA SPEC; SERBIA SPEC; UK SPEC; UKRAINE SPEC

main48812-21070i201111-201312

ADRIA SPEC&F SPORT; BELGIUM SPEC&F SPORT; BULGARIA SPEC&F SPORT; CENTRAL SPEC&F SPORT; EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; GERMANY SPEC&F SPORT; IRELAND SPEC&F SPORT; ISRAEL SPEC&F SPORT; KAZAKHSTAN SPEC&F SPORT; NORDIC SPEC&F SPORT; RUSSIA SPEC&F SPORT; SERBIA SPEC&F SPORT; UK SPEC&F SPORT; UKRAINE SPEC&F SPORT

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12020×2i201312-202009

NO.1

main48817-12030×2i201012-201312

NO.2

48818BUSH, STABILIZER, REAR

main48818-76010×2i201012-201312

main48818-12310×2i201111-201312

ADRIA SPEC; BELGIUM SPEC; BULGARIA SPEC; CENTRAL SPEC; EUROPE COUNTRIES SPEC(W/NAVIGATION); GERMANY SPEC; IRELAND SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; NORDIC SPEC; RUSSIA SPEC; SERBIA SPEC; UK SPEC; UKRAINE SPEC

main48818-21110×2i201111-201312

ADRIA SPEC&F SPORT; BELGIUM SPEC&F SPORT; BULGARIA SPEC&F SPORT; CENTRAL SPEC&F SPORT; EUROPE COUNTRIES SPEC(W/NAVIGATION)&F SPORT; GERMANY SPEC&F SPORT; IRELAND SPEC&F SPORT; ISRAEL SPEC&F SPORT; KAZAKHSTAN SPEC&F SPORT; NORDIC SPEC&F SPORT; RUSSIA SPEC&F SPORT; SERBIA SPEC&F SPORT; UK SPEC&F SPORT; UKRAINE SPEC&F SPORT

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241×2i201012-201312

48830DLINK ASSY, REAR STABILIZER, RH

main48830-12070i201312-202009

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-76010i201012-201312

48840ALINK ASSY, REAR STABILIZER, LH

main48830-12070i201312-202009

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011906942

main90119-06942
