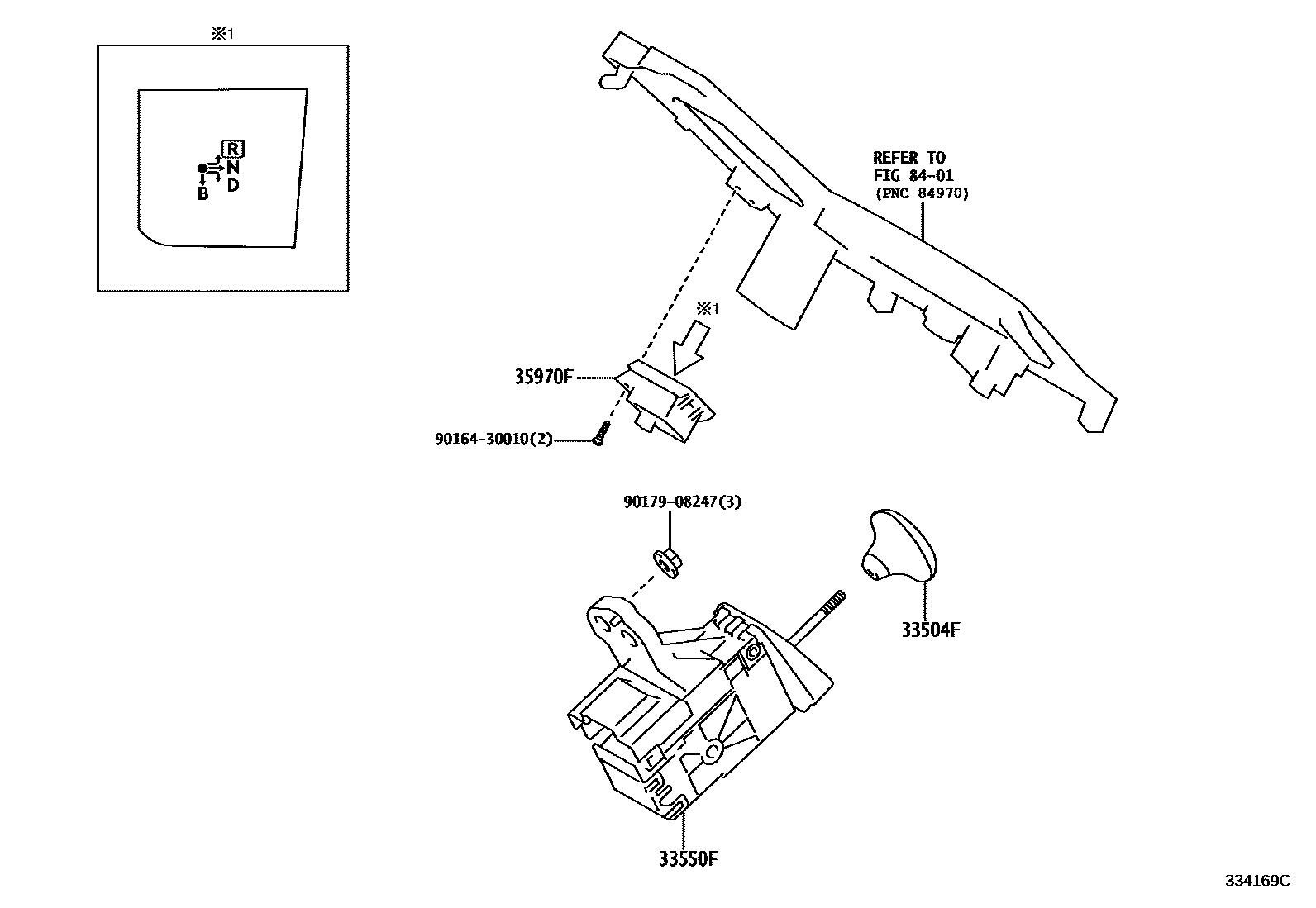

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-76020iZWA10..RHD201012-201312

main33504-76040iZWA10..LHD201012-201312

main33504-76050iZWA10201312-202009

main33504-76060iZWA10..LHD..B201412-201508

THE CRAFTED LINE

33550FSHIFT ASSY, TRANSMISSION INSTRUMENT PANEL

main33550-76050iZWA10..RHD201312-201403

main33550-76051iZWA10..RHD201404-202007

main33550-76070iZWA10..LHD201012-201312

35970FHOUSING ASSY, POSITION INDICATOR

main35970-76040iZWA10..RHD201012-201312

main35970-76050iZWA10..LHD201312-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016430010

main90164-30010

9017908247

main90179-08247

6 parts on this diagram · 2 diagrams in section
