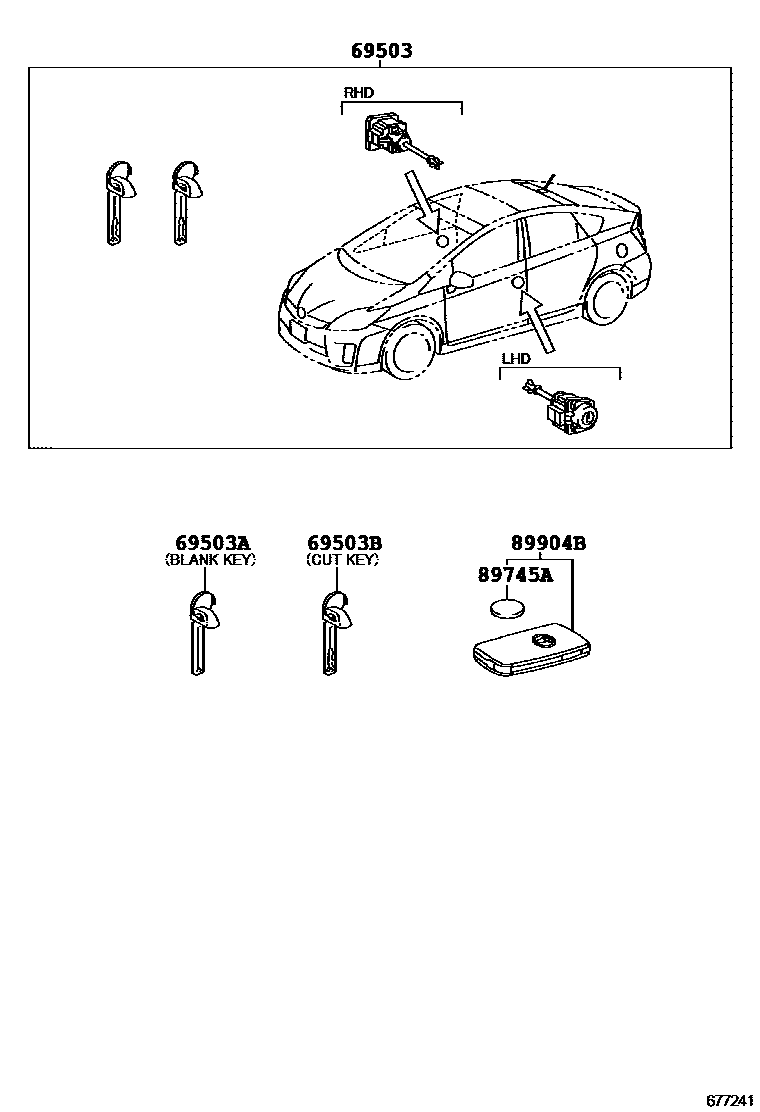

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47140iZVW35..LHD201205

main69005-47170iZVW35..RHD201205

69503AKEY, BLANK

main69515-52120iZVW35201205

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-52110iZVW35201205

MASTER KEY,W(*68)

89745ABATTERY, TRANSMITTER

main89745-52030iZVW35201205

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47180iZVW35201205

5 parts on this diagram · 1 diagram in section
