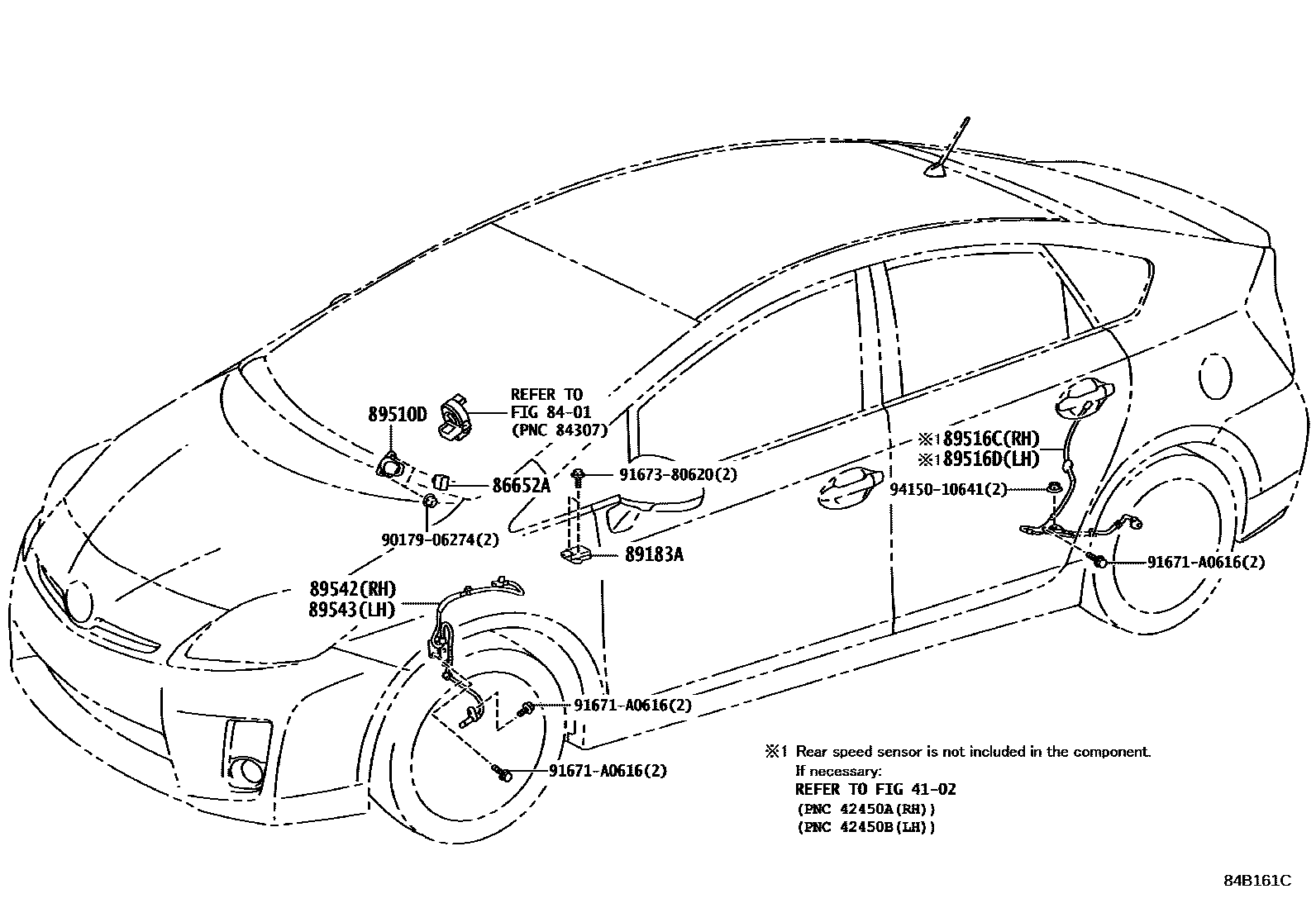

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZVW35200912

89183ASENSOR, YAWRATE

main89183-48030iZVW35200912

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47010iZVW35..LHD200912-201010

main89510-47020iZVW35..RHD200912-201010

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-47070iZVW35200912

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-47080iZVW35200912

89542SENSOR, SPEED, FRONT RH

main89542-47030iZVW35200912-201010

89543SENSOR, SPEED, FRONT LH

main89543-47030iZVW35200912

9017906274

main90179-06274

91671A0616

main91671-A0616

9167380620

main91673-80620

9415010641

main94150-10641

13 parts on this diagram · 2 diagrams in section
