HEATING & AIR CONDITIONING - COMPRESSOR

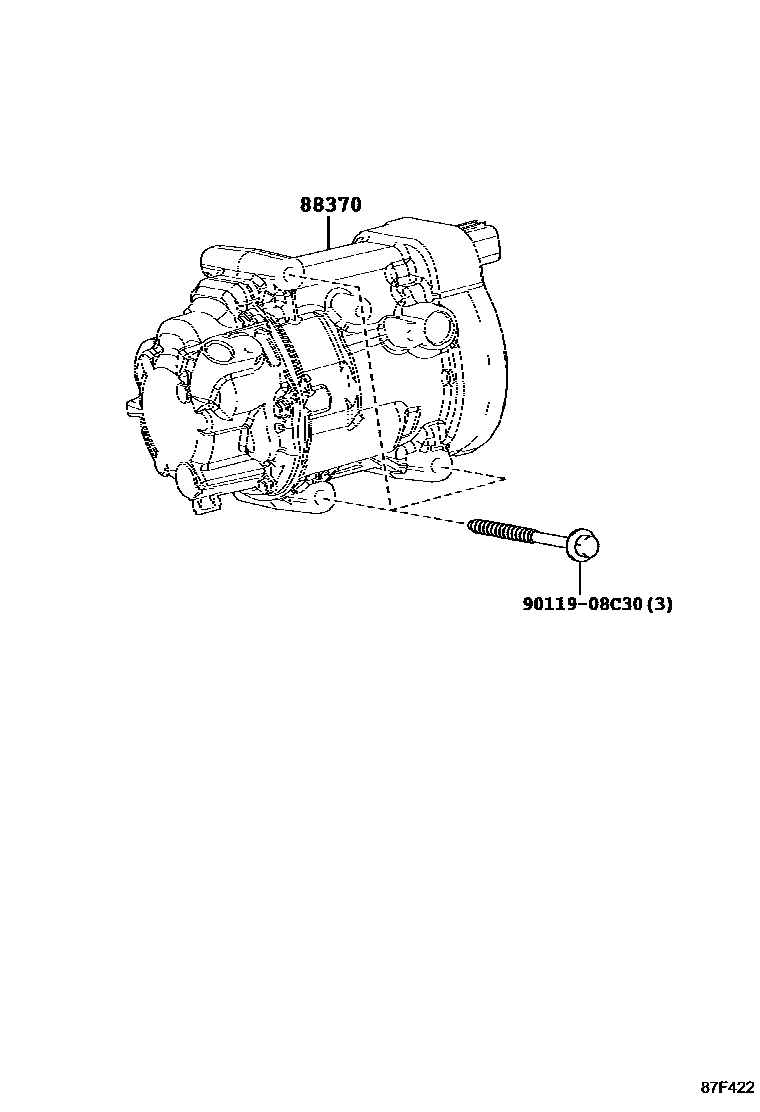

Parts diagram

88370COMPRESSOR ASSY, W/MOTOR

main88370-47090i201511-201605

main88370-47091i201606-201612

main88370-47092i201701-201812

9011908C30

main90119-08C30

2 parts on this diagram · 1 diagram in section
