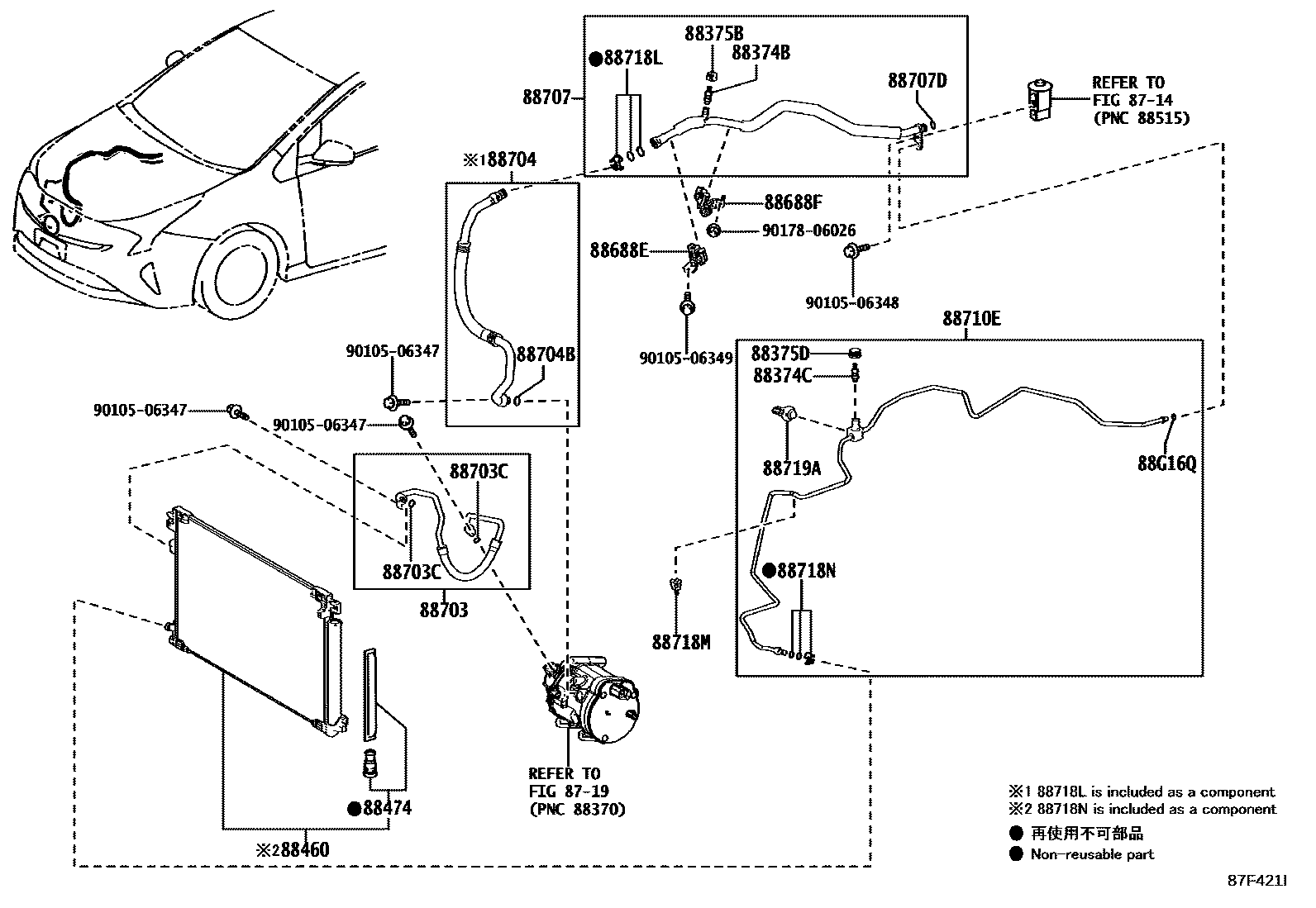

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZVW5#201511-201812

88374CVALVE, SERVICE, NO.2

main88374-30010iZVW50201511-201812

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iZVW50201511-201812

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iZVW50201511-201812

88460CONDENSER ASSY, COOLER

main88460-10320iZVW50201511-201812

88474DRYER, COOLER

main88474-12020iZVW50201511-201812

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-47700iZVW50201511-201812

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-47710iZVW50201511-201812

88703HOSE SUB-ASSY, DISCHARGE

main88703-47080iZVW50201511-201812

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iZVW50201511-202211

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-47100iZVW50201511-201812

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iZVW5#201511-202211

ID=13.4,OD=18.2

88707PIPE SUB-ASSY, SUCTION

main88707-47100iZVW50..RHD201511-201812

main88707-47120iZVW50..LHD201511-201812

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iZVW5#201511-202211

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47170iZVW50..RHD201511-202004

main88710-47171iZVW5#..RHD202004

main88710-47190iZVW50..LHD201511-202004

main88710-47191iZVW5#..LHD202004

88718LCLAMP, PIPING

main88718-52280iZVW50201511-201812

88718MCLAMP, PIPING

main88718-47110iZVW50201511-201812

88718NCLAMP, PIPING

main88718-1E150iZVW50201511-201812

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-47010iZVW50201511-201812

88G16QRING, O, NO.1(FOR LIQUID TUBE)

main90099-14119iZVW50201511-202211

ID=6.7,OD=10.3

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9017806026

main90178-06026

26 parts on this diagram · 2 diagrams in section
