EPC Data

WIRING & CLAMP

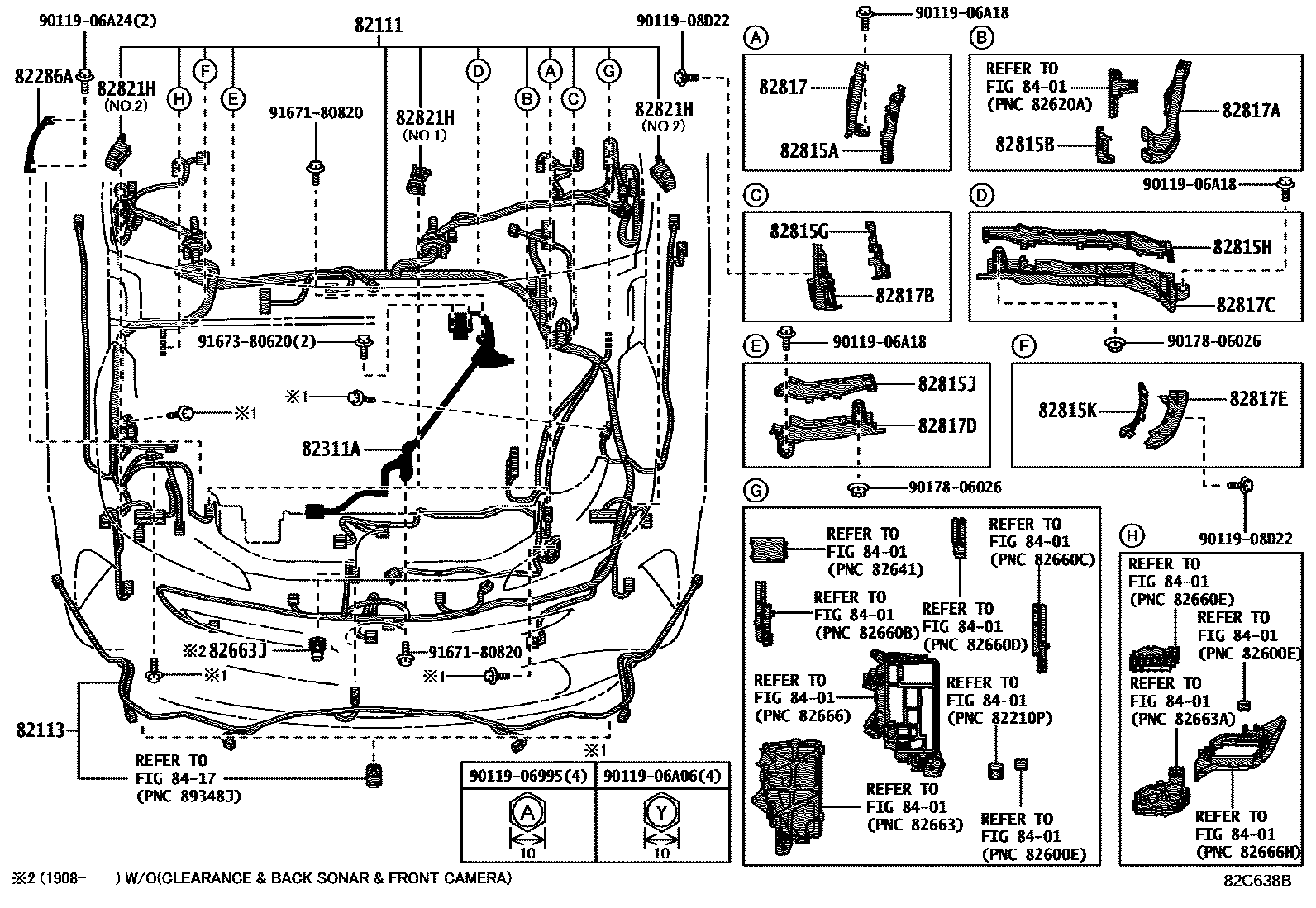

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-4E060i201812-201908
main82111-4E061i201908-202007
main82111-4E490i201812-201908
main82111-4E491i201908-202007
main82111-4E880i202007
main82111-4EB10i202007
main82111-47G30supersedes 82111-47G51i201511-201605
TAIWAN SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT&LIGHT CONTROLSYSTEM-WITH(*ALC & FOLLOW ME HOME)
main82111-47G31i201608-201812
TAIWAN SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G40supersedes 82111-47G51i201511-201605
PRE-COLLISION SYSTEM-WITHOUT
main82111-47G41supersedes 82111-47G51i201606-201812
PRE-COLLISION SYSTEM-WITHOUT
main82111-47G60supersedes 82111-47G51i201511-201605
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G61supersedes 82111-47G51i201606-201812
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G70supersedes 82111-47G51i201511-201605
SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G71supersedes 82111-47G51i201606-201812
SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G80supersedes 82111-47G51i201511-201605
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G81supersedes 82111-47G51i201606-201812
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G90supersedes 82111-47G51i201511-201605
COLD AREA SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47G91i201606-201711
COLD AREA SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-47J00supersedes 82111-47J11i201511-201605
PRE-COLLISION SYSTEM-WITHOUT
main82111-47J01i201606-201711
PRE-COLLISION SYSTEM-WITHOUT
main82111-47J20supersedes 82111-47J11i201511-201605
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-47J21supersedes 82111-47J11i201606-201812
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-47J30supersedes 82111-47J11i201511-201605
SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-47J31i201606-201711
SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-4E070i201812-201908
PRE-COLLISION SYSTEM-WITHOUT
main82111-4E071i201908-202007
PRE-COLLISION SYSTEM-WITHOUT
main82111-4E080i201812-201908
SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E081i201908-202007
SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E090i201812-201908
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E091i201908-202007
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E100i201812-201908
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E101i201908-202007
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E160i201812-201908
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-4E161i201908-202007
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-4E300i201812-201908
COLD AREA SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E301i201908-202007
COLD AREA SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E450i201812-201908
REGULATION COMPLIANCE LABEL & NAME PLATE-JAPAN/GENERAL LABEL(TAIWAN) & ID PLATE&TAIWAN SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E451i201908-202007
TAIWAN SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E750i202007
PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4E760i202007
HONG KONG,MACAO SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE); LATIN AMERICA SPEC(EXCEPT CHILE&MEXICO)&SUB MUFFLER-WITHOUT(HEAT RECYCLE); SINGAPORE SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE); SOUTH AFRICA SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-4E770i202007-202106
LATIN AMERICA SPEC(EXCEPT CHILE&MEXICO)&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE); PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-4E771i202106
LATIN AMERICA SPEC(EXCEPT CHILE&MEXICO)&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE); PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)
main82111-4E890i202007
PRE-COLLISION SYSTEM-WITHOUT
main82111-4EA00i202007
SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4EA10i202007
COLD AREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
main82111-4EA80i202007
COLD AREA SPEC&SUB MUFFLER-WITHOUT(HEAT RECYCLE)&GRILL SHUTTER-WITHOUT
82113WIRE, ENGINE ROOM, NO.3
main82113-47210i201812-201908
CLEARANCE & BACK SONAR-WITH
main82113-47211i201908
CLEARANCE & BACK SONAR-WITH
main82113-47390i201511-201812
CLEARANCE & BACK SONAR-WITH
main82113-47520i201908
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(*PVM)
main82113-47540i201908
BACK MONITOR-WITH(*PVM)
82286AWIRE, EARTH, NO.2
main82286-47010i201511-201812
82311AWIRE, AIR CONDITIONER
main821H2-47010i201812
82663JCOVER, CONNECTOR HOLDER
main82821-47410i201908
82815ACOVER, WIRING HARNESS PROTECTOR
main82815-47880i201511-201812
82815BCOVER, WIRING HARNESS PROTECTOR
main82815-47C20i201812
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
main82815-47C80i201511-201812
main82815-47C90i201511-201812
82815HCOVER, WIRING HARNESS PROTECTOR NO.6
main82815-47D00i201812
main82815-47D10i201511-201812
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
main82815-47D20i201511-201812
main82815-47D30i201511-201812
82815KCOVER, WIRING HARNESS PROTECTOR, NO.8
main82815-47D40i201511-201812
main82815-47D60i201812
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-47N30i201511-201812
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-47N40i201511-201812
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-47N50i201511-201812
main82817-47N60i201812
82817CPROTECTOR, WIRING HARNESS, NO.4
main82817-47N70i201812
main82817-47N80i201511-201812
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-47N90i201812
main82817-47P00i201511-201812
82817EPROTECTOR, WIRING HARNESS, NO.6
main82817-47P10i201812
main82817-47P30i201511-201812
82821HCOVER, CONNECTOR
main82821-30650×2i201812
NO.1
main82821-50780×2i201812
NO.2
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
9011906995
main90119-06995
9011906A06
main90119-06A06
9011906A18
main90119-06A18
9011906A24
main90119-06A24
9011908D22
main90119-08D22
9017806026
main90178-06026
9167180820
main91671-80820
9167380620
main91673-80620

28 parts on this diagram · 13 diagrams in section
