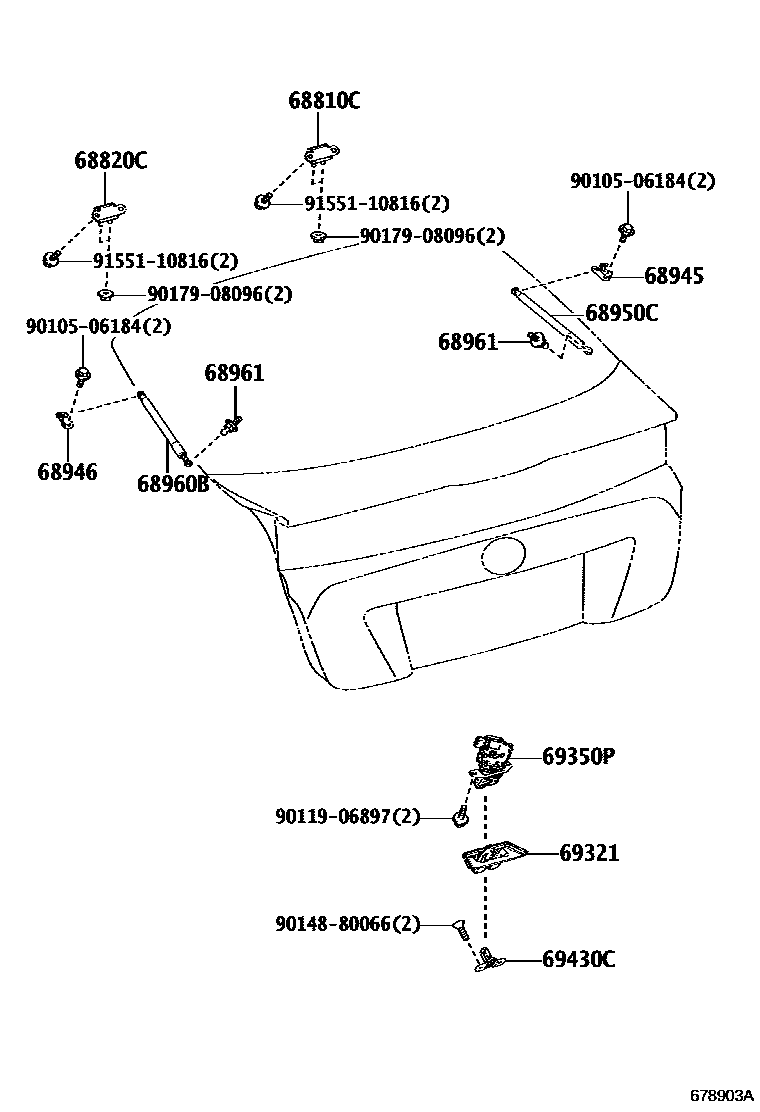

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47060iZVW50201511-201605

PAD T=1.0

main68810-47061iZVW5#201606-201812

PAD T=1.0

main68810-47070iZVW50201511-201605

PAD T=1.5

main68810-47071iZVW50201606-201812

PAD T=1.5

main68810-47080iZVW50201511-201605

PAD T=2.0

main68810-47081iZVW5#201606-201812

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-47060iZVW50201511-201605

PAD T=1.0

main68810-47061iZVW50201606-201812

PAD T=1.0

main68810-47070iZVW50201511-201605

PAD T=1.5

main68810-47071iZVW5#201606-201812

PAD T=1.5

main68810-47080iZVW50201511-201605

PAD T=2.0

main68810-47081iZVW5#201606-201812

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52110iZVW50201511-201812

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52110iZVW50201511-201812

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W860iZVW50201511-201707

main68950-0W861iZVW50201708-201812

main68950-0WA80iZVW5#201812

68960BSTAY ASSY, BACK DOOR, LH

main68960-0W860iZVW50201511-201707

main68960-0W861iZVW50201708-201812

main68960-0WA80iZVW5#201812

68961BOLT, BACK DOOR STAY

main68961-47010iZVW50201511-201812

69321COVER, BACK DOOR LOCK

main69321-47010iZVW50201511-201812

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47050iZVW50201511-201812

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iZVW50201511-201812

9010506184

main90105-06184

9011906897

main90119-06897

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

15 parts on this diagram · 1 diagram in section
