DECK BOARD & DECK TRIM COVER

58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58337-47020iZVW50201511-201812

58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2

main58338-47010iZVW50201511-201812

58401JCLIP(FOR DECK BOAD)

main90467-10161iZVW50201511-201807

main90467-10188iZVW50201812

SPARE TIRE-GROUND TIRE

main90467-10188iZVW50201812

SPARE TIRE-TEMPORARY(T125/70D17)

main90467-10188iZVW50201808-201811

58415EBOARD, REAR FLOOR, NO.1

main58415-47090-C2iZVW50201511-201812

BLACK,TRIM1#,2#

main58415-47100-C2iZVW50201812

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main58415-47100-C2iZVW55201812

BLACK,TRIM1#,2#

58432DRETAINER, DECK BOARD

main51962-47010iZVW50201511-201811

main51962-47020iZVW55201812

SPARE TIRE-TEMPORARY(T125/70D17)

58439BPROTECTOR, DECK BOARD, NO.1

main58477-28020iZVW50201511-201812

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iZVW50201511-201812

58780EBAND ASSY, TOOL BOX

main58781-52010iZVW50201511-201812

58790ACARRIER ASSY, JACK

main58790-52020iZVW50201511-201812

64342ACLIP

main90467-07215iZVW55201812

64715CCOVER, DECK SIDE TRIM, LH

main64715-47060-C0iZVW50201511-201801

BLACK,TRIM1#,2#

main64715-47060-C1iZVW50201801-202011

BLACK,TRIM1#,2#

main64718-33010iZVW5#202011

64716DCOVER, DECK TRIM, REAR

main64716-47110-C0iZVW50201511-201812

BLACK,TRIM1#,2#

main64716-47120-C0iZVW55201812

BLACK,TRIM1#,2#

main64716-47120-C0iZVW55201812

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iZVW50201801-201812

main90467-10167iZVW50201511-201712

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-47080-C0iZVW50201511-201812

BLACK,TRIM1#,2#

64726BCLIP, DECK REAR TRIM

main65487-47010iZVW50201511-201812

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-47090-C2iZVW50201511-201908

BLACK,TRIM1#,2#

main64730-47091-C2iZVW50201908-202011

BLACK,TRIM1#,2#

main64730-47190-C0iZVW50202011

BLACK,TRIM1#,2#

main64730-47200-C0iZVW50..LHD202011

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main64730-47200-C0iZVW50..LHD202011

BLACK,TRIM1#,2#

main64730-47220-C2iZVW55201812-201908

BLACK,TRIM1#,2#

main64730-47220-C2iZVW50201812-201908

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main64730-47221-C2iZVW55201908-202011

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main64730-47221-C2iZVW55201908-202011

BLACK,TRIM1#,2#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161iZVW5#201511-201812

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-47150-C2iZVW50201511-201803

BLACK,TRIM1#,2#

main64740-47150-C3iZVW50201803-201908

BLACK,TRIM1#,2#

main64740-47151-C3iZVW50201908-202011

BLACK,TRIM1#,2#

main64740-47200-C3iZVW50201812-201908

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main64740-47200-C3iZVW50..LHD201812-201908

BLACK,TRIM1#,2#

main64740-47201-C3iZVW55201908-202011

BLACK,TRIM1#,2#

main64740-47201-C3iZVW55201908-202011

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main64740-47320-C0iZVW50202011

BLACK,TRIM1#,2#

main64740-47350-C0iZVW50..LHD202011

SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,2#

main64740-47350-C0iZVW55202011

BLACK,TRIM1#,2#

64765BEZEL, JACK COVER, UPPER

main64766-47020iZVW5#201511-201812

64910JCOVER ASSY, TONNEAU

main64910-47060-C0iZVW50201511-201812

BLACK,TRIM1#,2#

64937ACAP, TONNEAU COVER HOLDER, NO.1

main64937-47020-C0iZVW50201511-201812

BLACK,TRIM1#,2#

64938HOOK, TONNEAU COVER, A

main64938-47060-C0iZVW50201511-201812

BLACK,TRIM1#,2#

64993BOX, DECK FLOOR, REAR

main64993-47100iZVW55201812

64995BOX, DECK FLOOR, RH

main64995-47030iZVW50201511-201812

main64995-47040iZVW55201812

SPARE TIRE-TEMPORARY(T125/70D17)

64997BOX, DECK FLOOR, LH

main64997-47040iZVW50201511-201812

main64997-47050iZVW55201812

SPARE TIRE-TEMPORARY(T125/70D17)

64997CCLIP(FOR DECK FLOOR BOX)

main90467-07049-23iZVW50201610-201812

BLACK

main90467-07049-C0iZVW50201511-201610

BLACK

5522948020PLATE, DASH PANEL INSULATOR, NO.4

main55229-48020

5523948020SILENCER, STEERING COLUMN HOLE COVER

main55239-48020

9011906786

main90119-06786

9011906A44

main90119-06A44

9015950083

main90159-50083

9018905168

main90189-05168

9356054012

main93560-54012

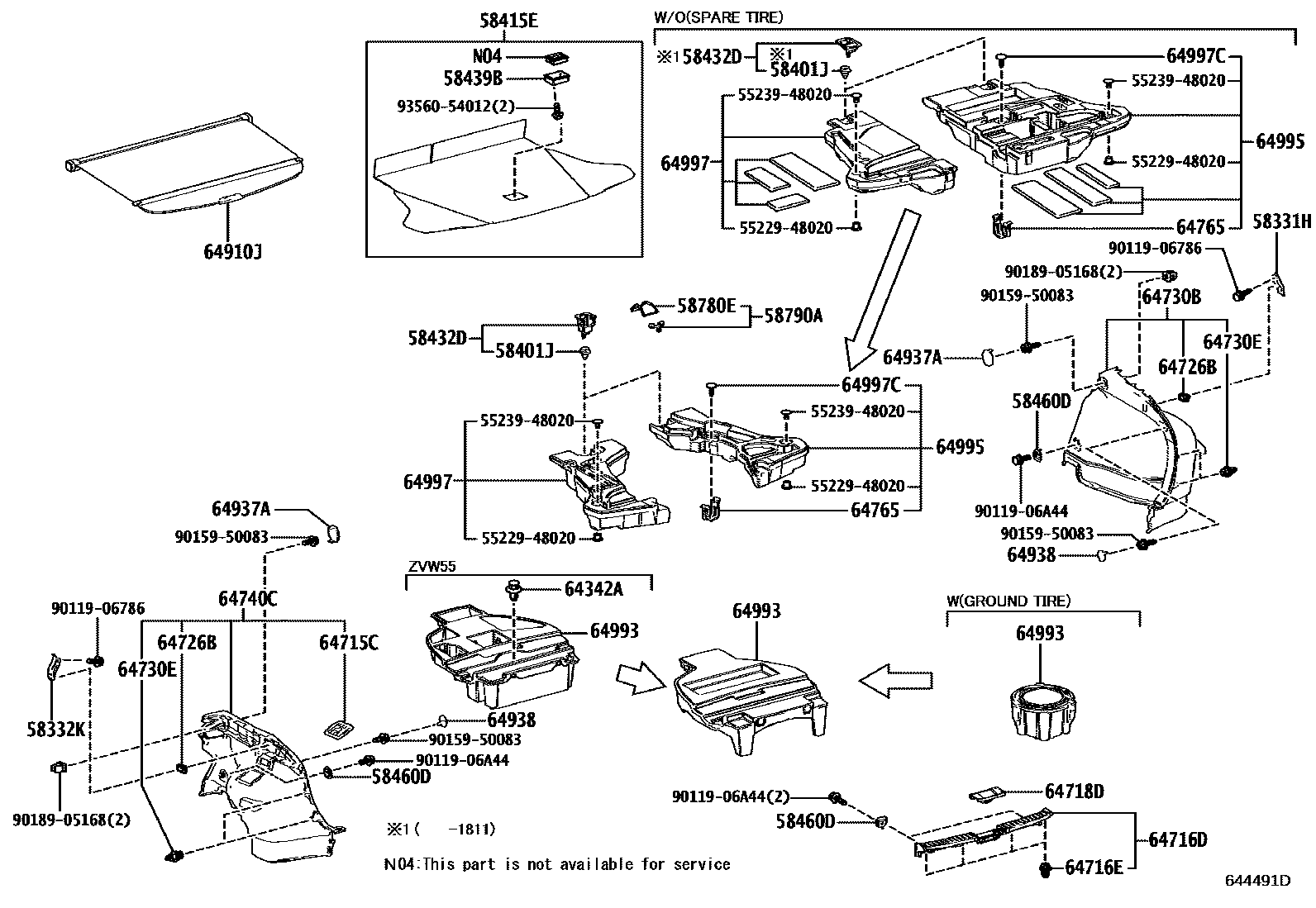

33 parts on this diagram · 1 diagram in section
