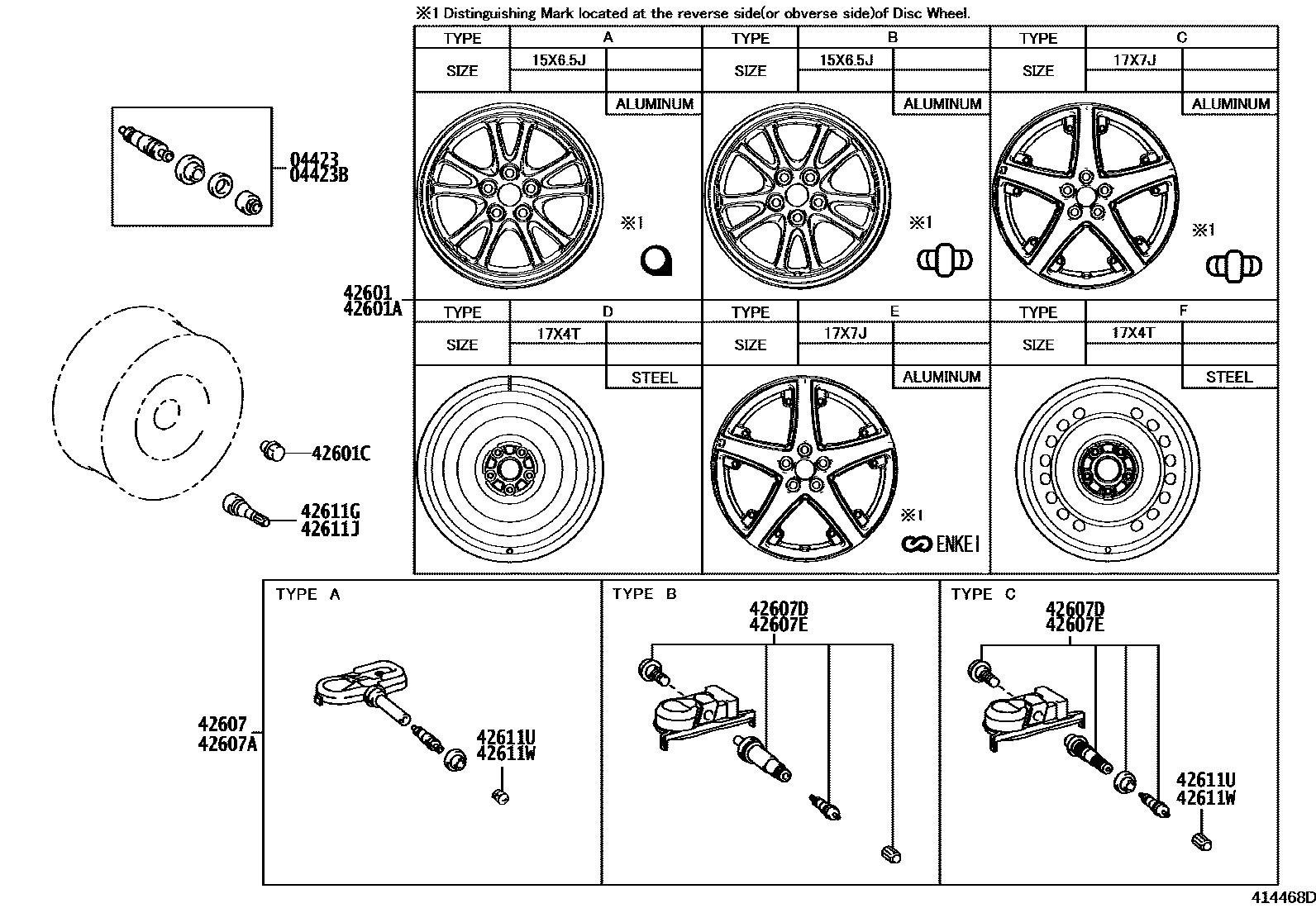

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
15X6.5J, #,TYPE A:REFER ILLUST.
15X6.5J, #,TYPE A:REFER ILLUST.
15X6.5J, #,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE C:REFER ILLUST.
TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
ARGENTINA SPEC&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-TEMPORARY(T125/70D17)
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42607DVALVE, TIRE PRESSURE MONITOR
TYPE C:REFER ILLUST.
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
13 parts on this diagram · 2 diagrams in section
