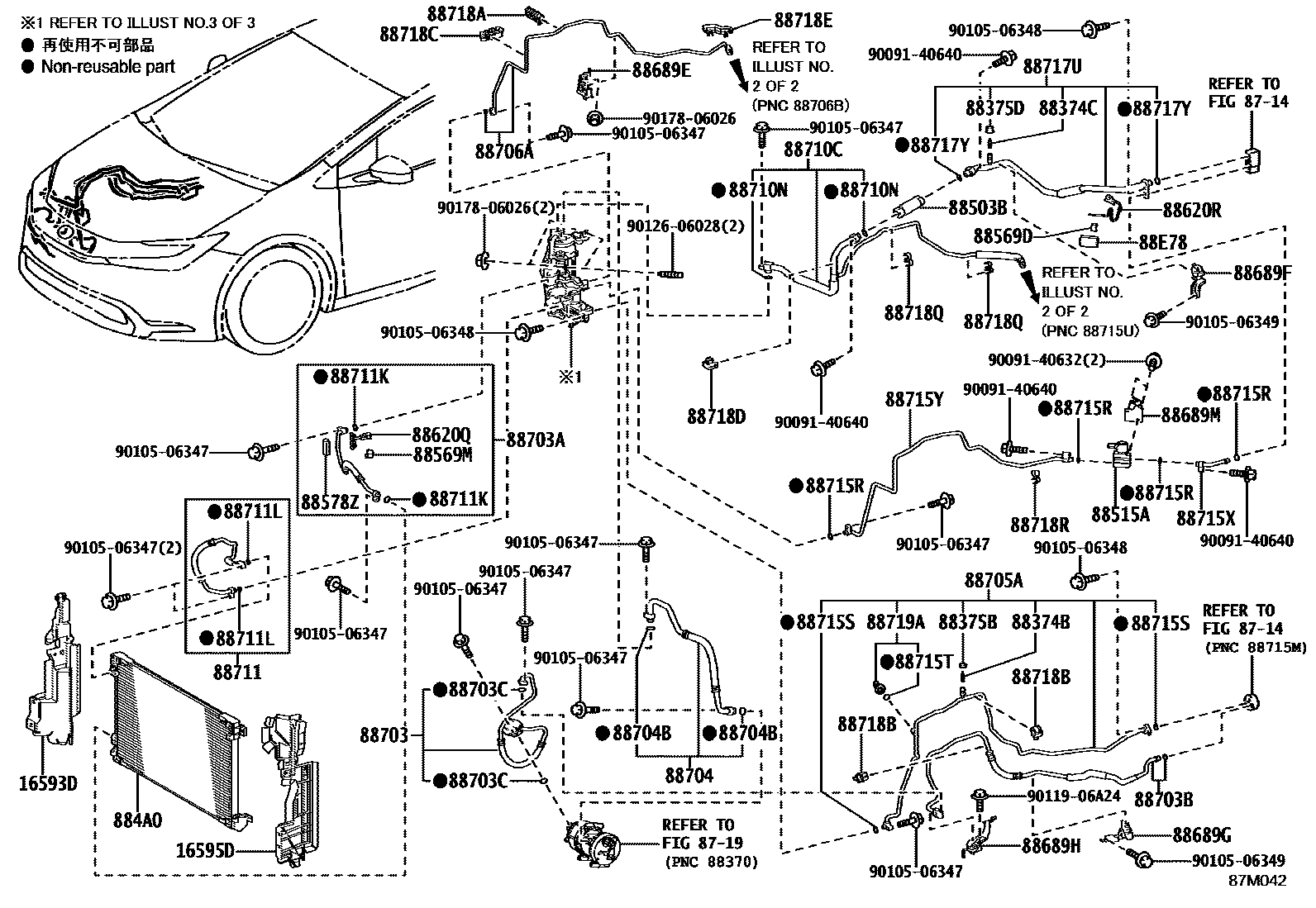

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16593DGUIDE, RADIATOR AIR, NO.1 RH

main16593-24110supersedes 16593-24120iM20AFXS..MXWH61..RHD202303

main16593-37280i2ZRFXE..ZVW60202212

16595DGUIDE, RADIATOR AIR, NO.1 LH

main16595-24110supersedes 16595-24120iM20AFXS..MXWH61..RHD202303

main16595-37260i2ZRFXE..ZVW60202212

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iMXWH61,ZVW60202212

88374CVALVE, SERVICE, NO.2

main88374-30010iMXWH61,ZVW60202212

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZVW60202212

main88375-30320iMXWH61202303

main88375-30280iMXWH61..LHD..H202303

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN) & ID PLATE

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZVW60202212

main88375-30310iMXWH61202303

main88375-30290iMXWH61..LHD..H202303

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN) & ID PLATE

884A0CONDENSER ASSY, COOLER

main884A0-12110iZVW60202212

main884A0-47020iMXWH61202303

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-42020iMXWH61202303

main88503-42030iMXWH61..LHD..H202303

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN) & ID PLATE

88515AVALVE, COOLER EXPANSION

main88515-47080iMXWH61202303

88569DCLAMP, COOLER, NO.1

main88569-47020iMXWH61202303

88569MCLAMP, PIPING, NO.1

main88569-74090iMXWH61202303

88578ZPACKING, COOLER, NO.1

main88578-47070iMXWH61202303

88620QTHERMISTOR ASSY, AIR CONDITIONER NO.1

main88620-47030iMXWH61202303

88620RTHERMISTOR ASSY, AIR CONDITIONER NO.2

main88620-47060iMXWH61..LHD202303

main88620-47090iMXWH61..RHD202303

88689EBRACKET, COOLER, NO.1

main88688-47770iMXWH61202303

88689FBRACKET, COOLER, NO.2

main88688-47890iMXWH61202303

88689GBRACKET, COOLER, NO.3

main88688-47A00iMXWH61..LHD202303

main88688-47A10iMXWH61..RHD202303

88689HBRACKET, COOLER, NO.4

main88688-47A20iMXWH61202303

88689MBRACKET, COOLER, NO.8

main88688-47B50iMXWH61..RHD202303

88703HOSE SUB-ASSY, DISCHARGE

main88703-16340iZVW60202212

main88703-47140iMXWH61202303

88703AHOSE SUB-ASSY, DISCHARGE, NO.1

main88703-47170iMXWH61202303

88703BHOSE SUB-ASSY, DISCHARGE, NO.2

main88703-47160iMXWH61..LHD202303

main88703-47180iMXWH61..RHD202303

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iMXWH61,ZVW60202212

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-16500iZVW60202212

main88704-47150iMXWH61202303

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iZVW60202212

ID=13.4,OD=18.2

main90099-14169×2iMXWH61202303

ID=17.2,OD=22.0

88705PIPE SUB-ASSY, DISCHARGE

main88705-47100iMXWH61..LHD202303

88705ATUBE SUB-ASSY, DISCHARGE

main88705-47130iMXWH61..RHD202303

main88715-47110iMXWH61..LHD202303

main88705-47140iMXWH61..LHD..H202303

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN) & ID PLATE

88706ATUBE SUB-ASSY, LIQUID, A

main88706-47090iMXWH61..LHD202303

main88706-47100iMXWH61..RHD202303

88710CTUBE ASSY, AIR CONDITIONER

main88710-47470iMXWH61..LHD202303

main88710-47480iMXWH61..RHD202303

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14157×2iMXWH61202303

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47090iMXWH61202303

88711KRING, O, NO.2(FOR DISCHARGE HOSE)

main90099-14155×2iMXWH61202303

88711LRING, O, NO.3(FOR DISCHARGE HOSE)

main90099-14155×2iMXWH61202303

88715RRING, O(FOR DISCHARGE TUBE)

main90099-14155×4iMXWH61202303

88715SRING, O, NO.2(FOR DISCHARGE TUBE)

main90099-14155×2iMXWH61202303

88715TRING, O, NO.3(FOR DISCHARGE TUBE)

main90099-14122iMXWH61202303

ID=10.6,OD=14.16

88715XTUBE, DISCHARGE, NO.4

main88715-47130iMXWH61..RHD202303

88715YTUBE, DISCHARGE, NO.5

main88715-47140iMXWH61..RHD202303

88717UTUBE, SUCTION, NO.1

main88717-47100iMXWH61..LHD202303

main88717-47110iMXWH61..RHD202303

main88717-47120iMXWH61..LHD..H202303

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN) & ID PLATE

88717YRING, O, NO.1(FOR SUCTION TUBE)

main90099-14121×2iMXWH61202303

ID=13.4,OD=18.2

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-47140iMXWH61202303

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-42170×2iMXWH61202303

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-47120iMXWH61202303

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-47130iMXWH61202303

88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

main88718-47180iMXWH61202303

88718QCLAMP, PIPING

main88718-47210×2iMXWH61202303

88718RCLAMP, PIPING

main88718-2J230iMXWH61..LHD..H; MXWH61..RHD202303

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN) & ID PLATE

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMXWH61,ZVW60202212

88E78PACKING, COOLER, NO.2

main88578-47060iMXWH61202303-202406

main88578-47100iMXWH61202406

9009140632

main90091-40632

9009140640

main90091-40640

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9011906A24

main90119-06A24

9012606028

main90126-06028

9017806026

main90178-06026

59 parts on this diagram · 6 diagrams in section
