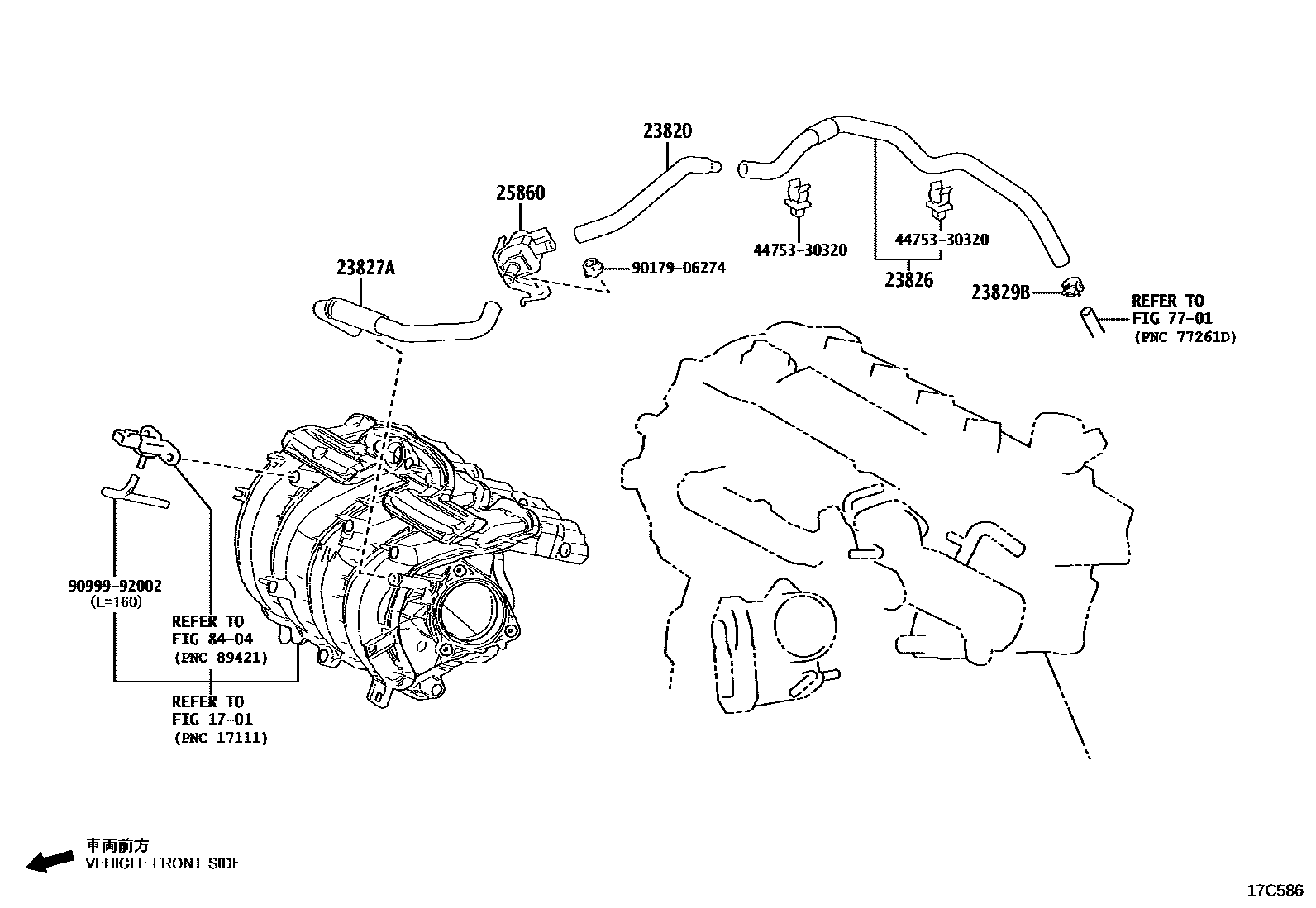

VACUUM PIPING

0001 1 0002 1W(GPF) 0003 1

1701MANIFOLD

→ Go to FIG 17-01

23820HOSE ASSY, FUEL VAPOR FEED

main23820-24090iM20AFXS..MXWH61202303

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24190iM20AFXS..MXWH61202303

main23826-37250i2ZRFXE..ZVW60202212-202411

main23826-37340i2ZRFXE..ZVW60202411

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-24220iM20AFXS..MXWH61202303

main23827-37070i2ZRFXE..ZVW60202212

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901i2ZRFXE..ZVW60202212

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24090iM20AFXS..MXWH61202303

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

4475330320CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320

9017906274

main90179-06274

9099992002

main90999-92002

11 parts on this diagram · 3 diagrams in section
