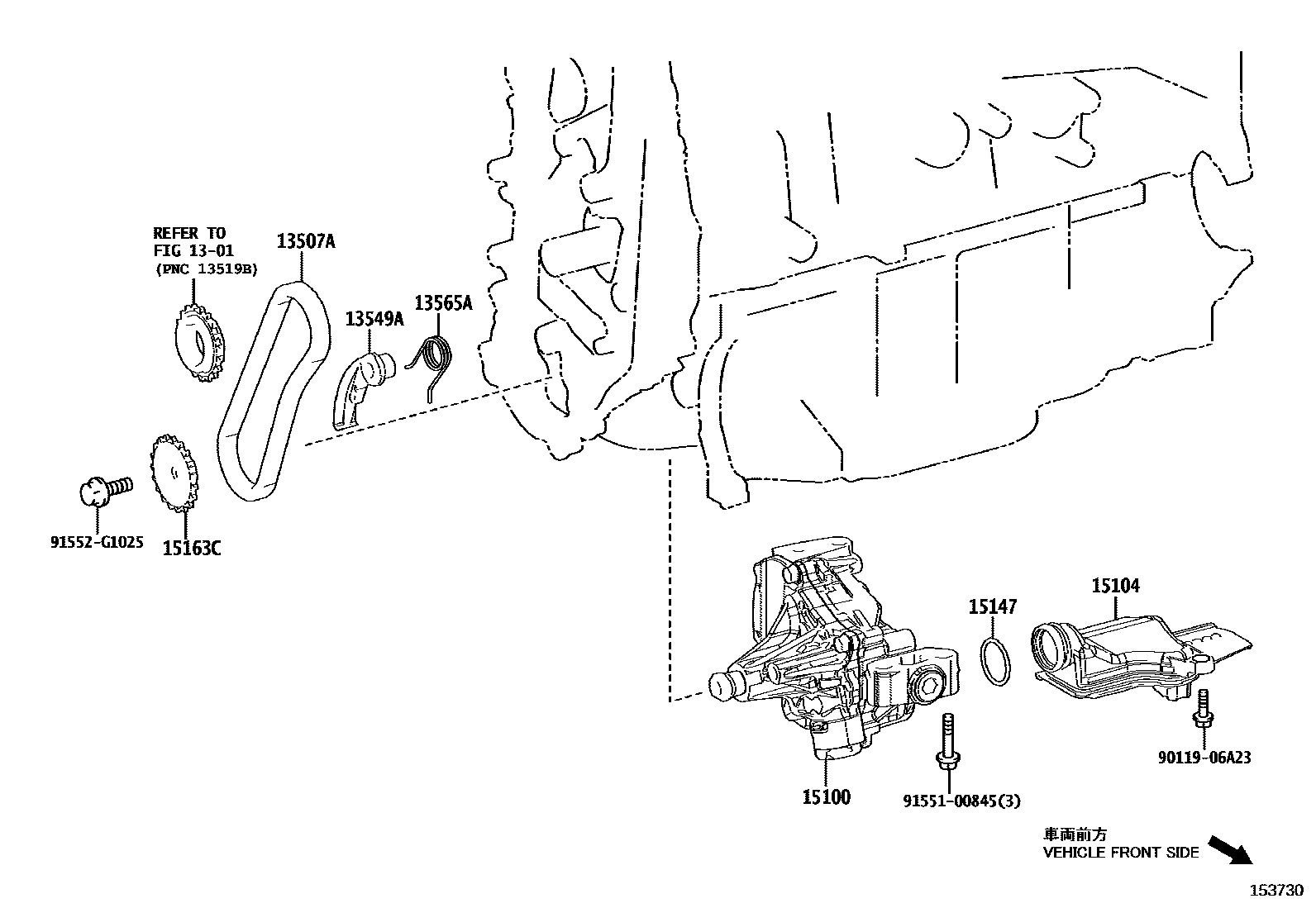

ENGINE OIL PUMP

0001 1 0002 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20AFXS..MXWH61202303

13549APLATE, CHAIN TENSIONER

main13549-25020iM20AFXS..MXWH61202303

13565ASPRING, CHAIN DAMPER

main13565-25010iM20AFXS..MXWH61202303

15100PUMP ASSY, OIL

main15100-24020iM20AFXS..MXWH61202303

main15100-37070i2ZRFXE..ZVW60202212

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20AFXS..MXWH61202303

15147GASKET, OIL STRAINER

main15147-25010iM20AFXS..MXWH61202303

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2ZRFXE..ZVW60202212

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20AFXS..MXWH61202303

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

12 parts on this diagram · 2 diagrams in section
