HEATING & AIR CONDITIONING - COMPRESSOR

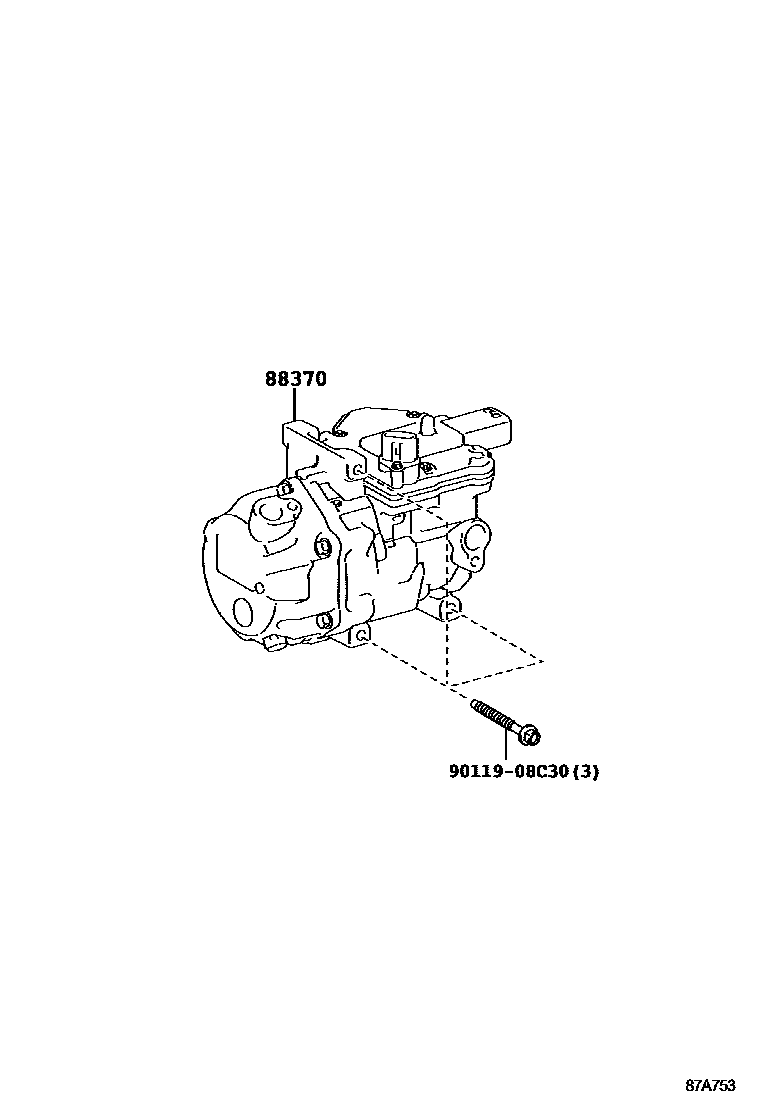

Parts diagram

88370COMPRESSOR ASSY, W/MOTOR

main88370-47030i200904-201004

main88370-47031i201204-201212

main88370-47032i201212-201411

main88370-47033i201412-201510

9011908C30

main90119-08C30

2 parts on this diagram · 1 diagram in section
