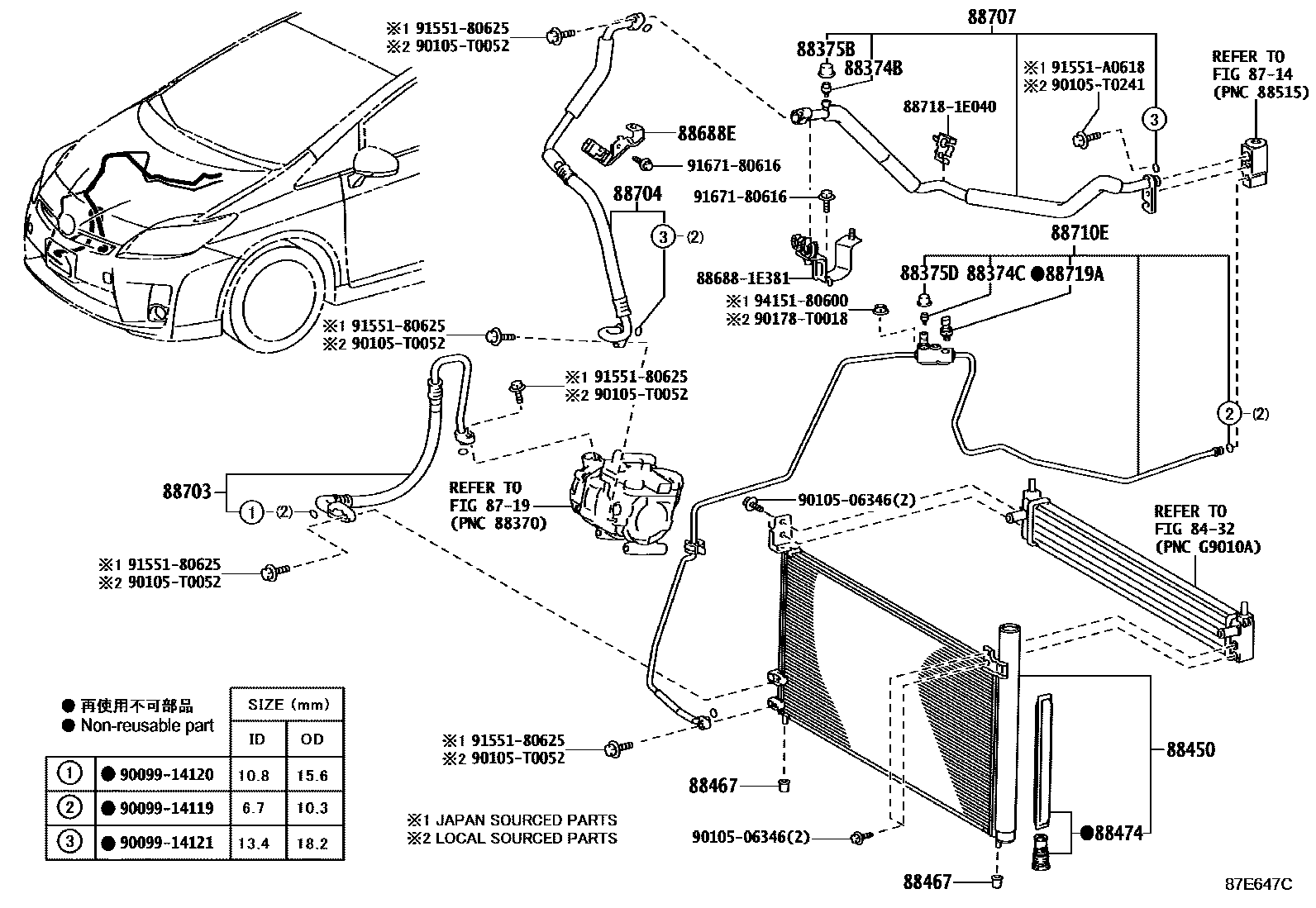

HEATING & AIR CONDITIONING - COOLER PIPING

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZVW30..TH201012-201204

88374CVALVE, SERVICE, NO.2

main88374-30010iZVW30..ARL,EUR200904-201112

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZVW30..ARL,EUR200904-201112

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZVW30..ARL,EUR200904-201112

88450CONDENSER ASSY, W/RECEIVER

main88460-47150iZVW30..ARL,EUR200904-201112

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×2iZVW30..ARL,EUR200904-201112

88474DRYER, COOLER

main88474-47030iZVW30..TH201204

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-47150iZVW30..TH201012-201204

88703HOSE SUB-ASSY, DISCHARGE

main88703-47040iZVW30..TH201204

88704HOSE SUB-ASSY, SUCTION

main88704-47050iZVW30200904-201007

main88704-47051iZVW30..ARL,EUR201008-201112

main88704-47090iZVW30..ARL,EUR201112

88707PIPE SUB-ASSY, SUCTION

main88707-0Q020iZVW30..TH201204

main88707-47040iZVW30200904-201007

main88707-47041iZVW30..TH201012-201204

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47050iZVW30..ARL,EUR200904-201112

main88710-47150iZVW30..ARL,EUR201112

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZVW30..ARL,EUR200904-201112

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90178T0018

main90178-T0018

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180616

main91671-80616

9415180600

main94151-80600

29 parts on this diagram · 1 diagram in section
