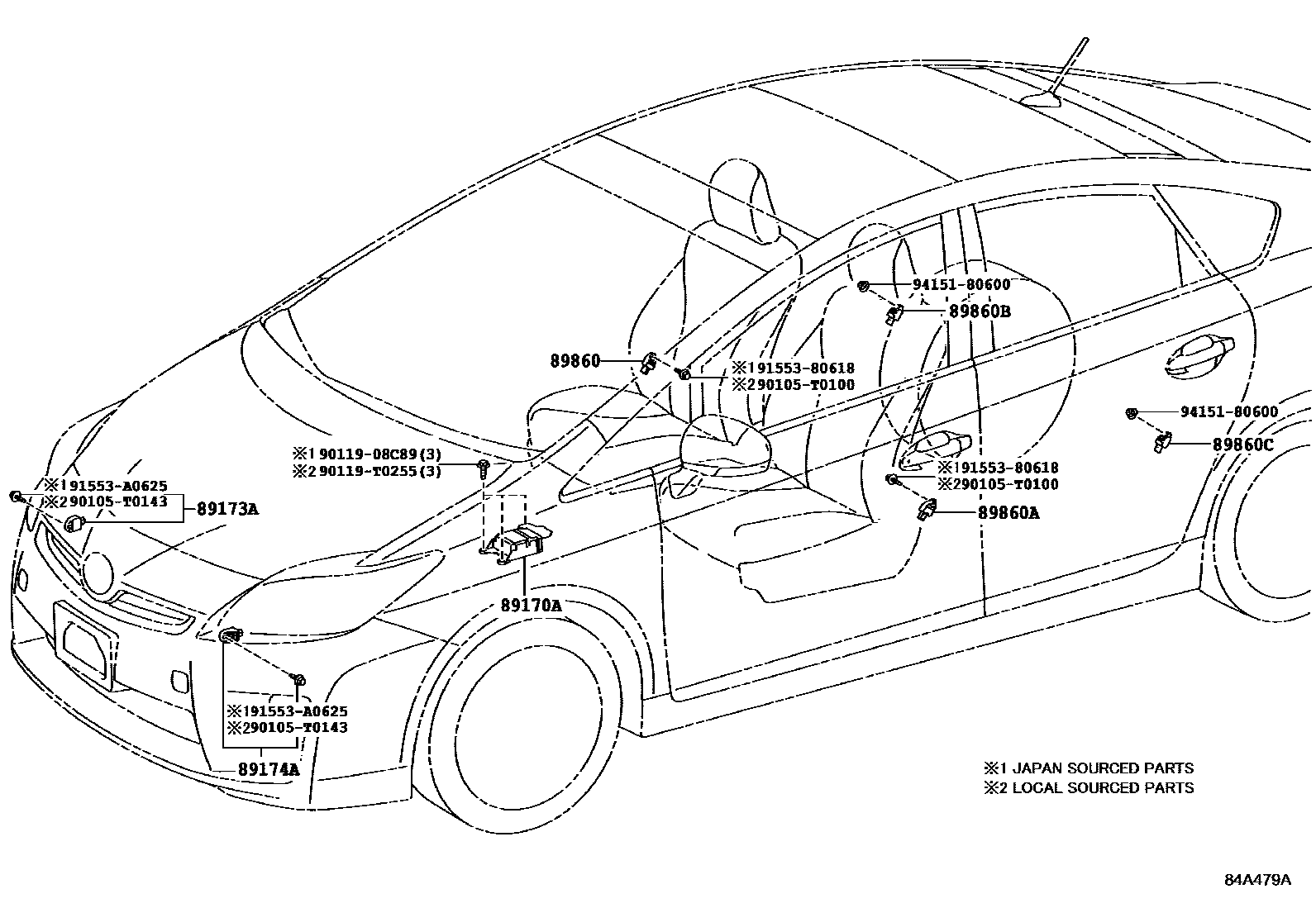

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-47100iZVW30..LHD200904-201107

P/N LABEL=8917047100

main89170-47101iZVW30..LHD201112

main89170-47110iZVW30..RHD..EUR200904-201107

P/N LABEL=8917047110

main89170-47111iZVW30..TH201204

main89170-47120iZVW30..ARL200904-201107

P/N LABEL=8917047120

main89170-47121iZVW30..ARL201112

main89170-47460iZVW30..LHD201107-201112

P/N LABEL=8917047460

main89170-47470iZVW30..TH201107-201202

P/N LABEL=8917047470

main89170-47480iZVW30..ARL201107-201112

P/N LABEL=8917047480

89173ASENSOR, AIRBAG, FRONT RH

main89173-49465iZVW30..ARL,EUR201107-201112

MARK=89173-47030

main89173-79025iZVW30..TH201012-201107

MARK=89173-75010

89174ASENSOR, AIRBAG, FRONT LH

main89173-49465iZVW30..TH201107-201202

MARK=89173-47030

main89173-79025iZVW30..TH201202-201204

MARK=89173-75010

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iZVW30..ARL,EUR201107-201112

MARK 89831-28020

main89831-75010iZVW30..TH201204

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iZVW30..TH201107-201202

MARK 89831-28020

main89831-75010iZVW30..TH201012-201107

MARK 89831-75010

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-12020iZVW30..TH201107-201202

MARK 89831-12020

main89831-75020iZVW30..TH201012-201107

MARK 89831-75020

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-12020iZVW30..ARL,EUR201107-201112

MARK 89831-12020

main89831-75020iZVW30..TH201012-201107

MARK 89831-75020

90105T0100

main90105-T0100

90105T0143

main90105-T0143

9011908C89

main90119-08C89

90119T0255

main90119-T0255

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
