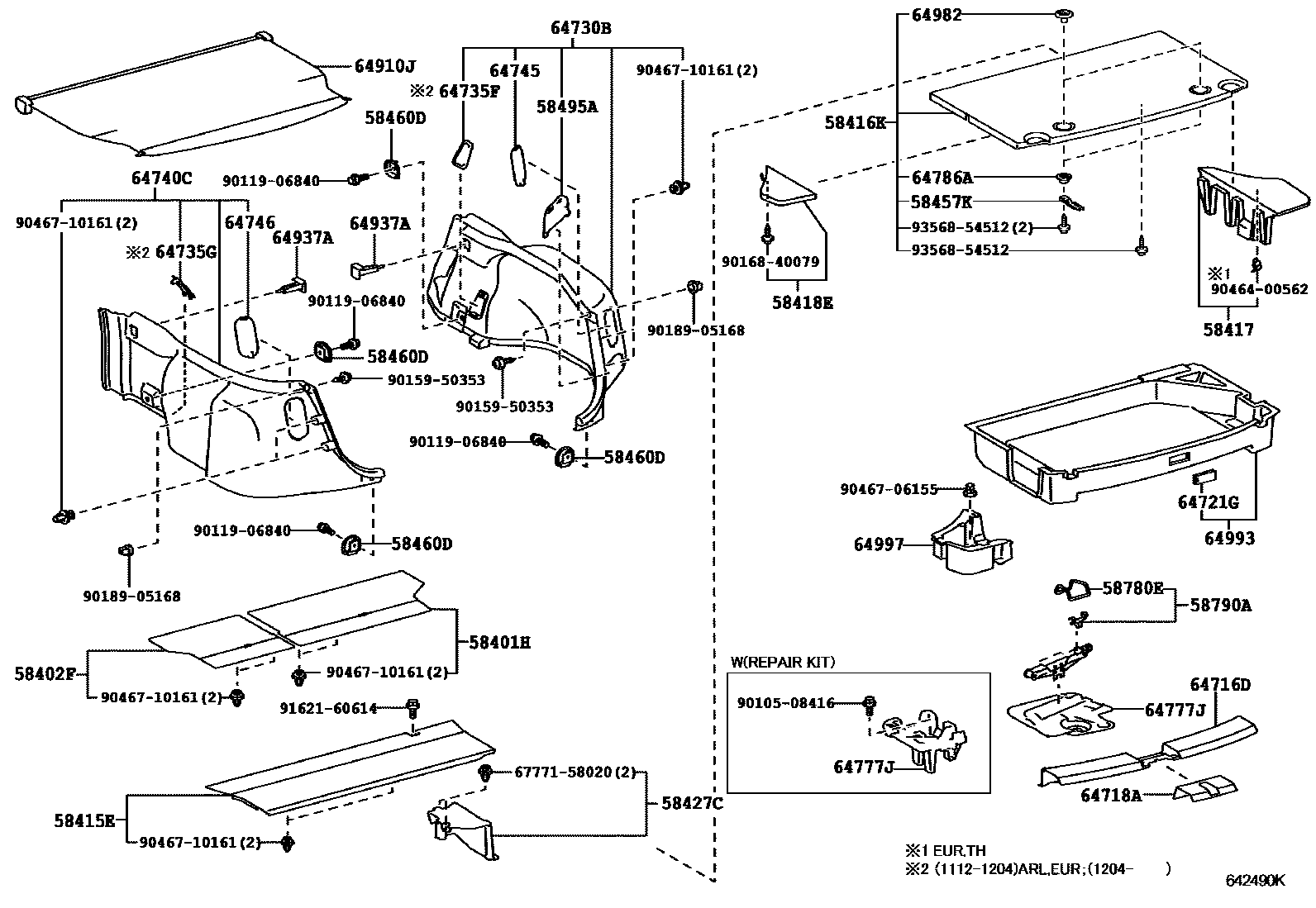

DECK BOARD & DECK TRIM COVER

58401HBOARD SUB-ASSY, REAR FLOOR, NO.1

main58401-47010-B1iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58401-47010-B1iZVW30..TH201204

LT.GRAY,TRIM2#,6#

main58401-47010-B1iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM1#,2#,6#

main58401-47010-B1iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

58402FBOARD SUB-ASSY, REAR FLOOR, NO.2

main58402-47010-B1iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main58402-47010-B1iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58402-47010-B1iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM1#,2#,6#

main58402-47010-B1iZVW30..TH201204

LT.GRAY,TRIM2#,6#

58415EBOARD, REAR FLOOR, NO.1

main58415-47030-B3iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main58415-47030-B3iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58415-47030-B3iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM1#,2#,6#

main58415-47030-B3iZVW30..TH201204

LT.GRAY,TRIM2#,6#

58416KBOARD, REAR FLOOR, NO.2

main58416-47030-B3iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM1#,2#,6#

main58416-47030-B3iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main58416-47030-B3iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58416-47030-B3iZVW30..TH201204

LT.GRAY,TRIM2#,6#

58417BOARD, REAR FLOOR, NO.3

main58490-47040-B2iZVW30..EUR200904-201112

LT.GRAY,TRIM1#,6#

main58490-47040-B2iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58490-47050-B2iZVW30..ARL200904-201112

LT.GRAY,TRIM1#,6#

main58490-47140-B0iZVW30..EUR201112-201511

LT.GRAY,TRIM2#,6#

main58490-47140-B0iZVW30..TH201204

LT.GRAY,TRIM2#

main58490-47150-B0iZVW30..ARL201112-201511

LT.GRAY,TRIM2#,6#

58418EBOARD, REAR FLOOR, NO.4

main58418-47030-B3iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main58418-47030-B3iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58418-47070-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

58427CSPACER, REAR FLOOR BOARD

main58427-47010iZVW30..ARL,EUR200904-201101

BLACK

main58427-47040iZVW30..TH201101-201204

NATURAL

58457KBRACKET, DECK BOARD, REAR

main58457-12010iZVW30..TH200904-201204

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iZVW30..ARL,EUR200904-201204

58495APLATE, REAR FLOOR BOARD, UPPER NO.3

main58495-47020-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main58495-47020-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main58495-47020-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

main58495-47020-B0iZVW30..TH201204

LT.GRAY,TRIM2#

58780EBAND ASSY, TOOL BOX

main58781-52010iZVW30..TH200904-201204

58790ACARRIER ASSY, JACK

main58790-52020iZVW30..TH200904-201204

64716DCOVER, DECK TRIM, REAR

main64716-47030-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64716-47030-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64716-47030-B0iZVW30..ARL,EUR201112-201305

LT.GRAY,TRIM1#,2#,6#

main64716-47030-B0iZVW30..TH201204-201306

LT.GRAY,TRIM2#,6#

main64716-47031-B0iZVW30..TH201307

LT.GRAY,TRIM2#

main64716-47031-B0iZVW30..ARL,EUR201306-201511

LT.GRAY,TRIM2#,6#

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-47030-B0iZVW30..TH201204-201306

LT.GRAY,TRIM2#,6#

main64718-47030-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64718-47030-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64718-47030-B0iZVW30..ARL,EUR201112-201305

LT.GRAY,TRIM1#,2#,6#

main64718-47031-B0iZVW30..TH201307

LT.GRAY,TRIM2#

main64718-47031-B0iZVW30..ARL,EUR201306-201511

LT.GRAY,TRIM2#,6#

64721GCOVER, DECK TRIM, NO.1

main64721-47010iZVW30..ARL,EUR200904-201204

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-47031-B2iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64730-47031-B2iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64730-47170-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

main64730-47170-B0iZVW30..TH201204

LT.GRAY,TRIM2#

64735FCOVER, DECK TRIM SIDE SERVICE HOLE, RH

main64735-47010-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

main64735-47010-B0iZVW30..TH201204

LT.GRAY,TRIM2#

64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH

main64735-47020-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

main64735-47020-B0iZVW30..TH201204

LT.GRAY,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-47031-B2iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64740-47031-B2iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64740-47160-B0iZVW30..TH201204

LT.GRAY,TRIM2#

main64740-47160-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-47030-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64745-47030-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64745-47030-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

main64745-47030-B0iZVW30..TH201204

LT.GRAY,TRIM2#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64745-47030-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64745-47030-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64745-47030-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM2#,6#

main64745-47030-B0iZVW30..TH201204

LT.GRAY,TRIM2#

64777JCUSHION, SPARE WHEEL

main64777-47030iZVW30..ARL,EUR200904-201112

main64777-47040iZVW30..TH201012-201204

64786APLATE, JACK COVER

main64786-47010iZVW30..TH200904-201204

RH

main64786-47020iZVW30..ARL,EUR200904-201204

LH

64910JCOVER ASSY, TONNEAU

main64910-47020-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64910-47020-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64910-47020-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM1#,2#,6#

main64910-47020-B0iZVW30..TH201204

LT.GRAY,TRIM2#,6#

64937ACAP, TONNEAU COVER HOLDER, NO.1

main64937-47010-B0iZVW30..ARL,EUR200904-201112

LT.GRAY,TRIM1#,6#

main64937-47010-B0iZVW30..TH201012-201204

LT.GRAY,TRIM1#

main64937-47010-B0iZVW30..ARL,EUR201112-201511

LT.GRAY,TRIM1#,2#,6#

main64937-47010-B0iZVW30..TH201204

LT.GRAY,TRIM2#,6#

64982KNOB, COVER

main64982-47010iZVW30..ARL,EUR200904-201204

RH

main64982-47020iZVW30..ARL,EUR200904-201204

LH

64993BOX, DECK FLOOR, REAR

main64993-47020iZVW30..ARL,EUR200904-201511

main64993-47030iZVW30..TH201012-201204

64997BOX, DECK FLOOR, LH

main64997-47020iZVW30..ARL,EUR200904-201204

6777158020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58020

9010508416

main90105-08416

9011906840

main90119-06840

9015950353

main90159-50353

9016840079

main90168-40079

9018905168

main90189-05168

9046400562

main90464-00562

9046706155

main90467-06155

9046710161

main90467-10161

9162160614

main91621-60614

9356854512

main93568-54512

39 parts on this diagram · 1 diagram in section
