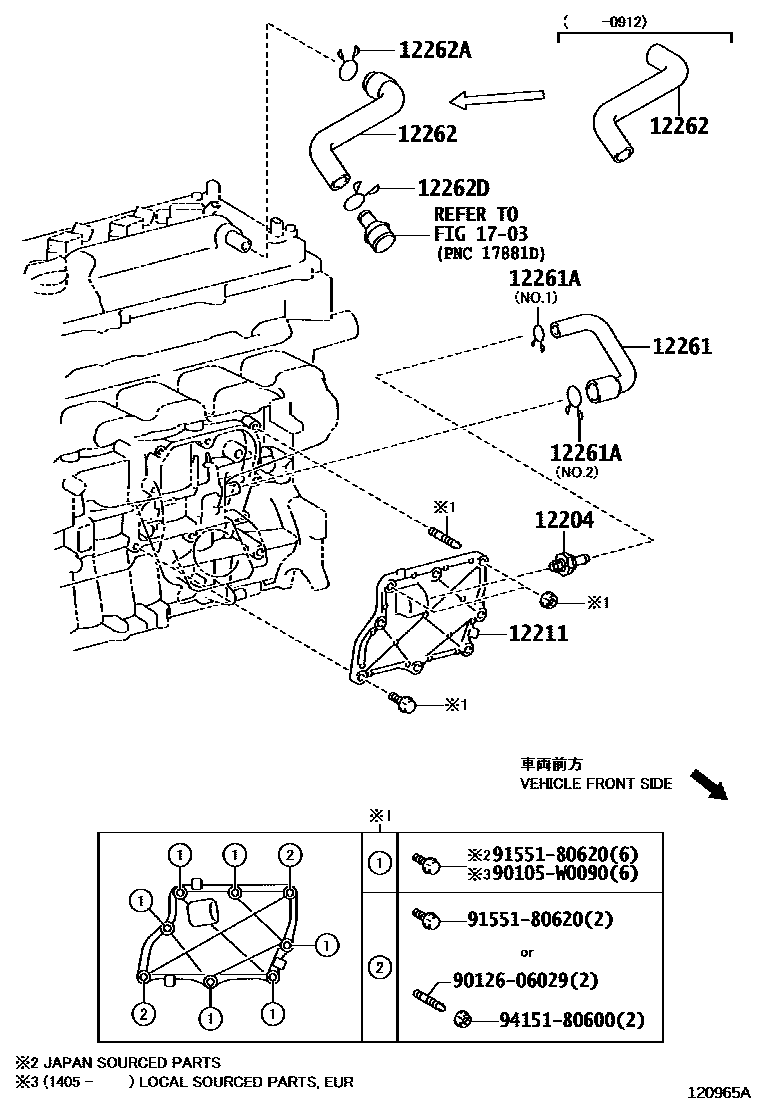

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
BRAZIL SPEC&ENGINE-2ZR-FXE(E25)
12211CASE, VENTILATION, NO.1
ENGINE-2ZR-FXE(MADE IN UK),(J)
ENGINE-2ZR-FXE(MADE IN UK),(L)
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
NO.2
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)
1703AIR CLEANER
90105W0090
main90105-W0090
9012606029
main90126-06029
9155180620
main91551-80620
9415180600
main94151-80600
12 parts on this diagram · 1 diagram in section
