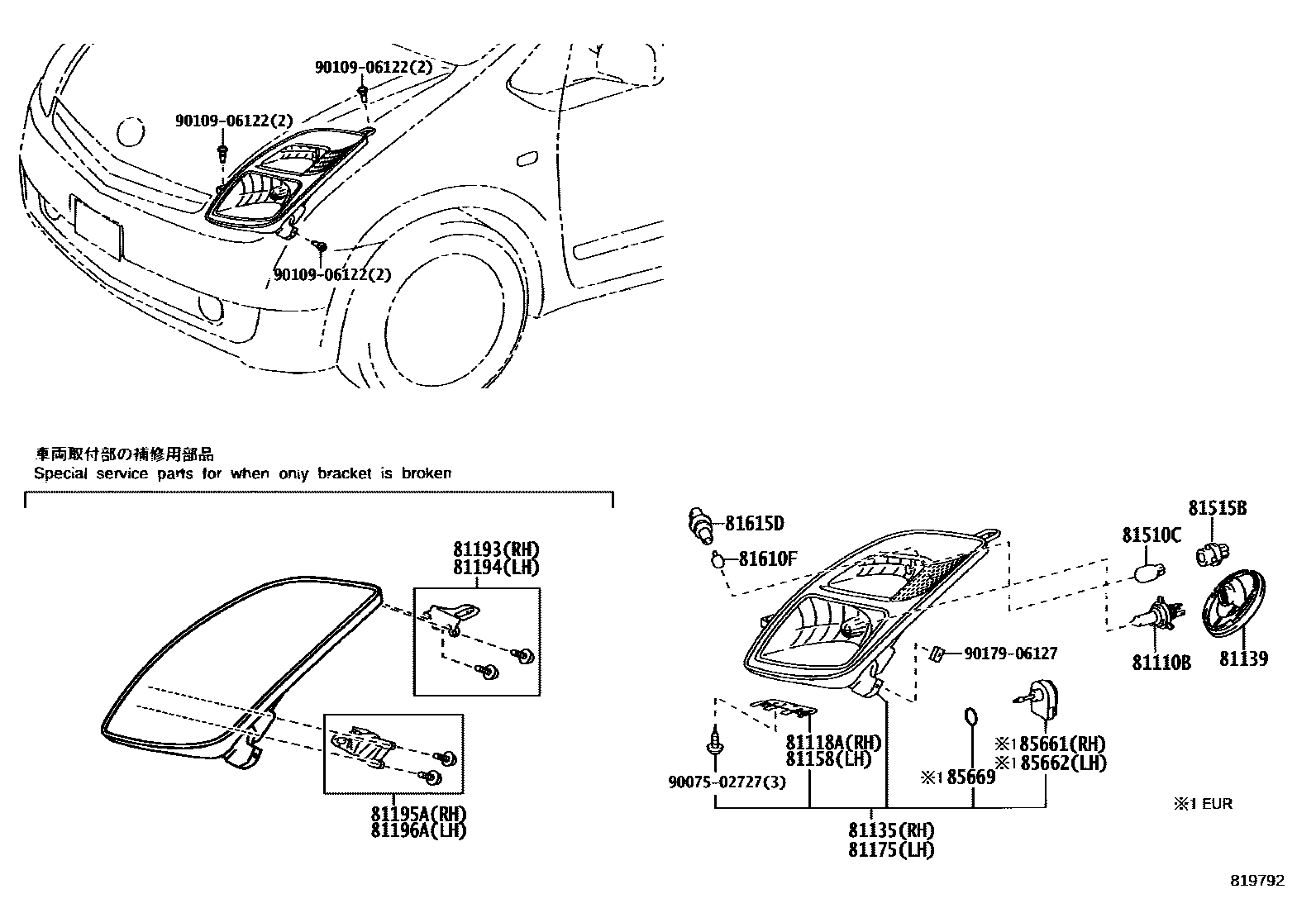

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
81118ABRACKET, HEADLAMP, RH
81135UNIT ASSY, HEADLAMP, RH
81139COVER, HEADLAMP SOCKET
81158BRACKET, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502727
main90075-02727
9010906122
main90109-06122
9017906127
main90179-06127
20 parts on this diagram · 2 diagrams in section
