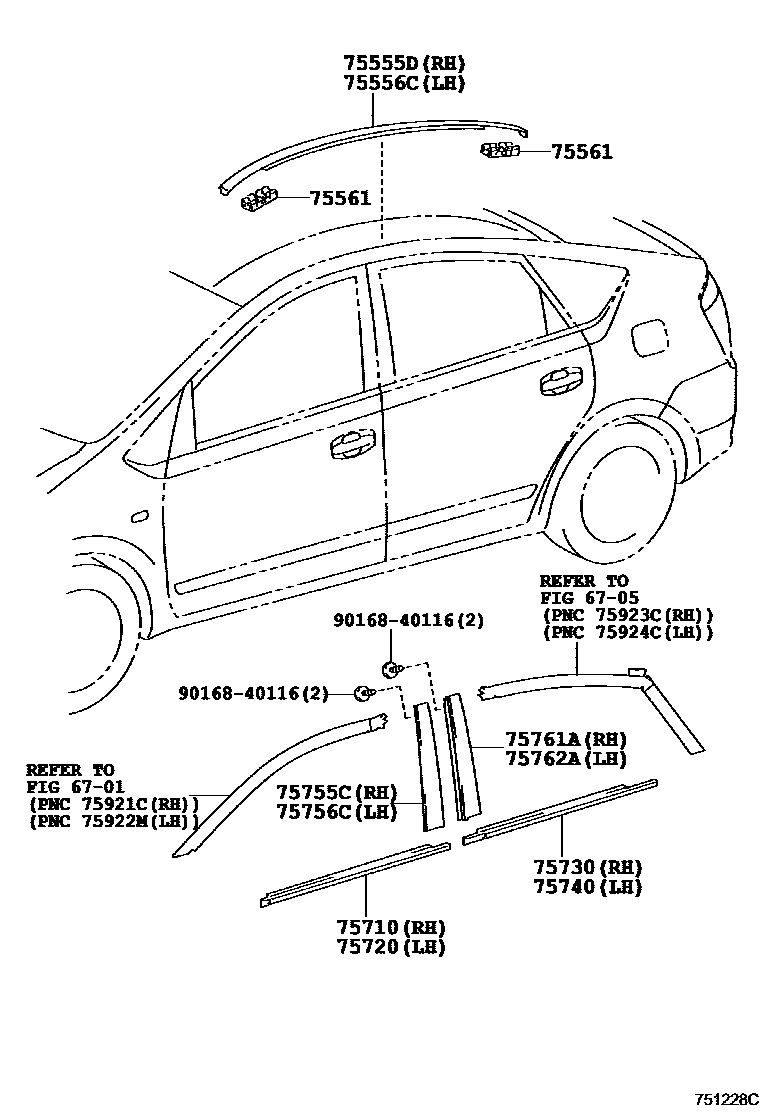

SIDE MOULDING

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-47020iNHW20200308-200511

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-47020iNHW20200308-200511

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iNHW20200308-200511

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-47010iNHW20200308-200511

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-47010iNHW20200308-200511

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-47010iNHW20200308-200511

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-47010iNHW20200308-200511

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-47010iNHW20200308-200511

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-47010iNHW20200308-200511

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-47010iNHW20200308-200511

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-47010iNHW20200308-200511

9016840116

main90168-40116

14 parts on this diagram · 1 diagram in section
