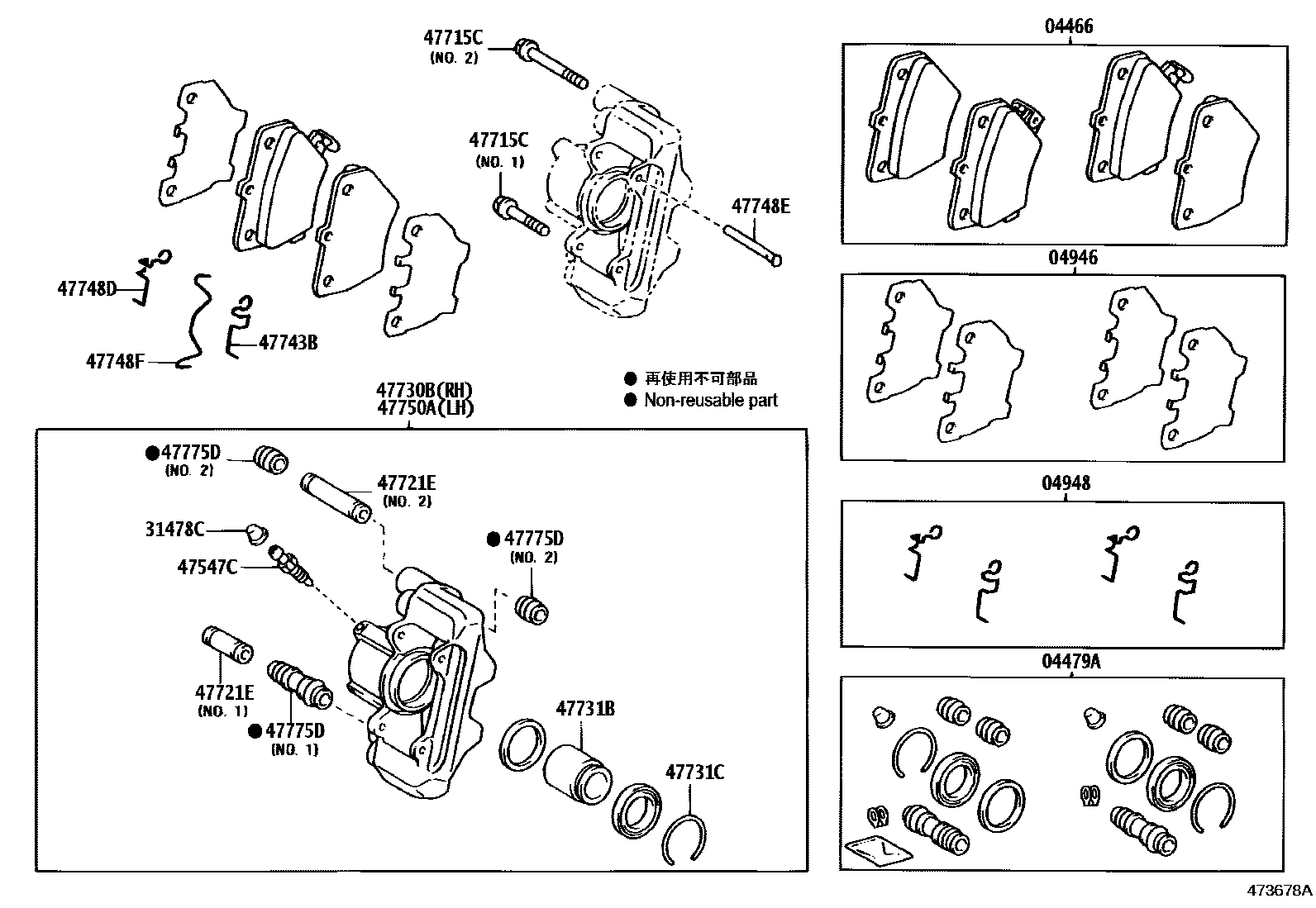

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47010i200408-200511

MARK AK PA561

main04466-52050i200308-200311

MARK SUMITOMO PS549

main04466-52060i200311-200408

MARK SUMITOMO PS549

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-13010i200308-200408

main04479-33110i200511-200903

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020i200308-200408

main04946-47010i200408-200511

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010i200308-200408

main04948-32040i200408-200511

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i200511-200903

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2i200408-200511

main47547-35020×2i200308-200408

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030×2i200308-200408

NO.1

main47715-20040×2i200308-200408

NO.2

main47715-32020×2i200408-200511

SUB

main47715-32030×2i200408-200511

MAIN

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053×2i200308-200408

NO.2

main90389-10054×2i200308-200408

NO.1

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-13020i200308-200408

main47730-21030i200408-200511

47731BPISTON, REAR DISC BRAKE

main47731-13010×2i200308-200408

main47731-33040×2i200408-200511

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-42001×2i200308-200408

main90522-43003×2i200408-200511

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030×2i200308-200408

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040×2i200308-200408

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021×4i200308-200408

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025×2i200308-200408

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-13020i200308-200408

main47750-21030i200408-200511

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020×2i200308-200408

NO.1

main47775-32050×2i200408-200511

main47775-42010×4i200308-200408

NO.2

17 parts on this diagram · 2 diagrams in section
