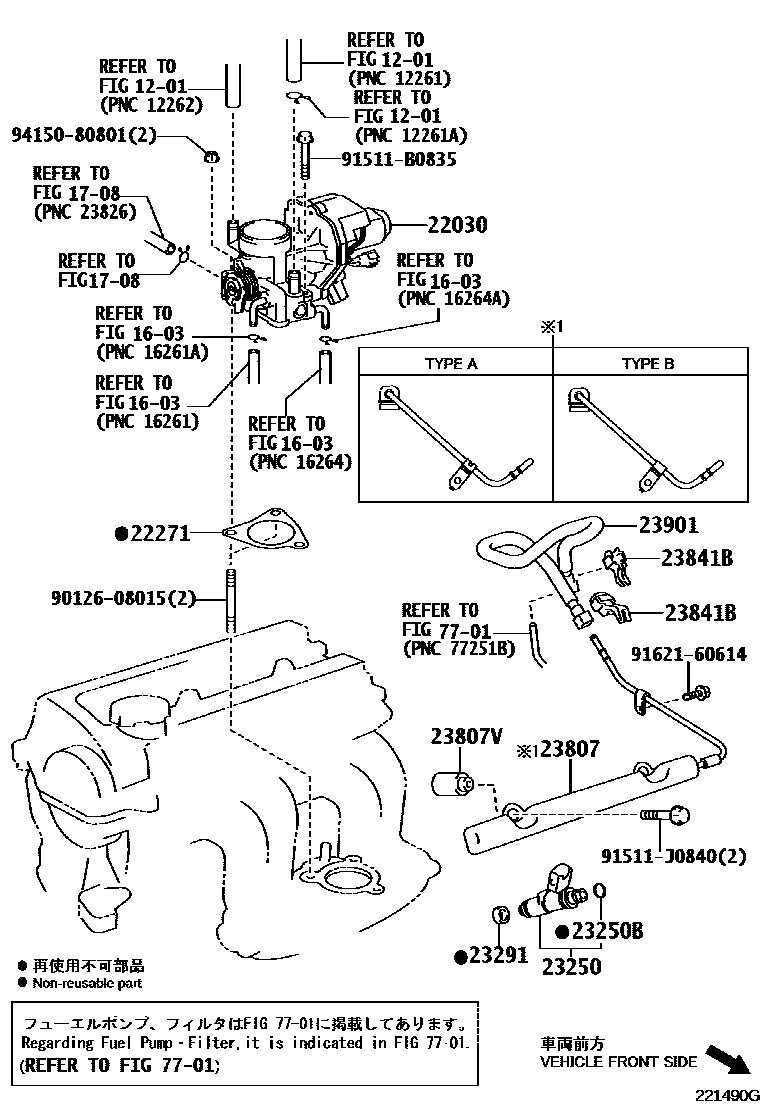

FUEL INJECTION SYSTEM

1201VENTILATION HOSE

→ Go to FIG 12-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21020i1NZFXE..NHW20200308-200903

22271GASKET, THROTTLE BODY

main22271-21030i1NZFXE..NHW20200308-200903

23250INJECTOR ASSY, FUEL

main23209-21020i1NZFXE..NHW20200308-200903

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1NZFXE..NHW20200308-200607

main90301-07037i1NZFXE..NHW20200607-200903

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1NZFXE..NHW20200308-200903

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-21070i1NZFXE..NHW20200308-200501

TYPE A:REFER ILLUST.

main23814-21071i1NZFXE..NHW20200511-200612

main23814-21071i1NZFXE..NHW20200501-200511

TYPE B:REFER ILLUST.

main23814-21072i1NZFXE..NHW20200612-200903

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFXE..NHW20200308-200903

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFXE..NHW20200607-200903

main23841-28010i1NZFXE..NHW20200308-200606

23901TUBE SUB-ASSY, FUEL

main23901-21080i1NZFXE..NHW20200308-200501

PNC 23807=TYPE A

main23901-21081i1NZFXE..NHW20200501-200511

PNC 23807=TYPE B

main23901-21081i1NZFXE..NHW20200511-200903

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012608015

main90126-08015

91511B0835

main91511-B0835

91511J0840

main91511-J0840

9162160614

main91621-60614

9415080801

main94150-80801

18 parts on this diagram · 1 diagram in section
