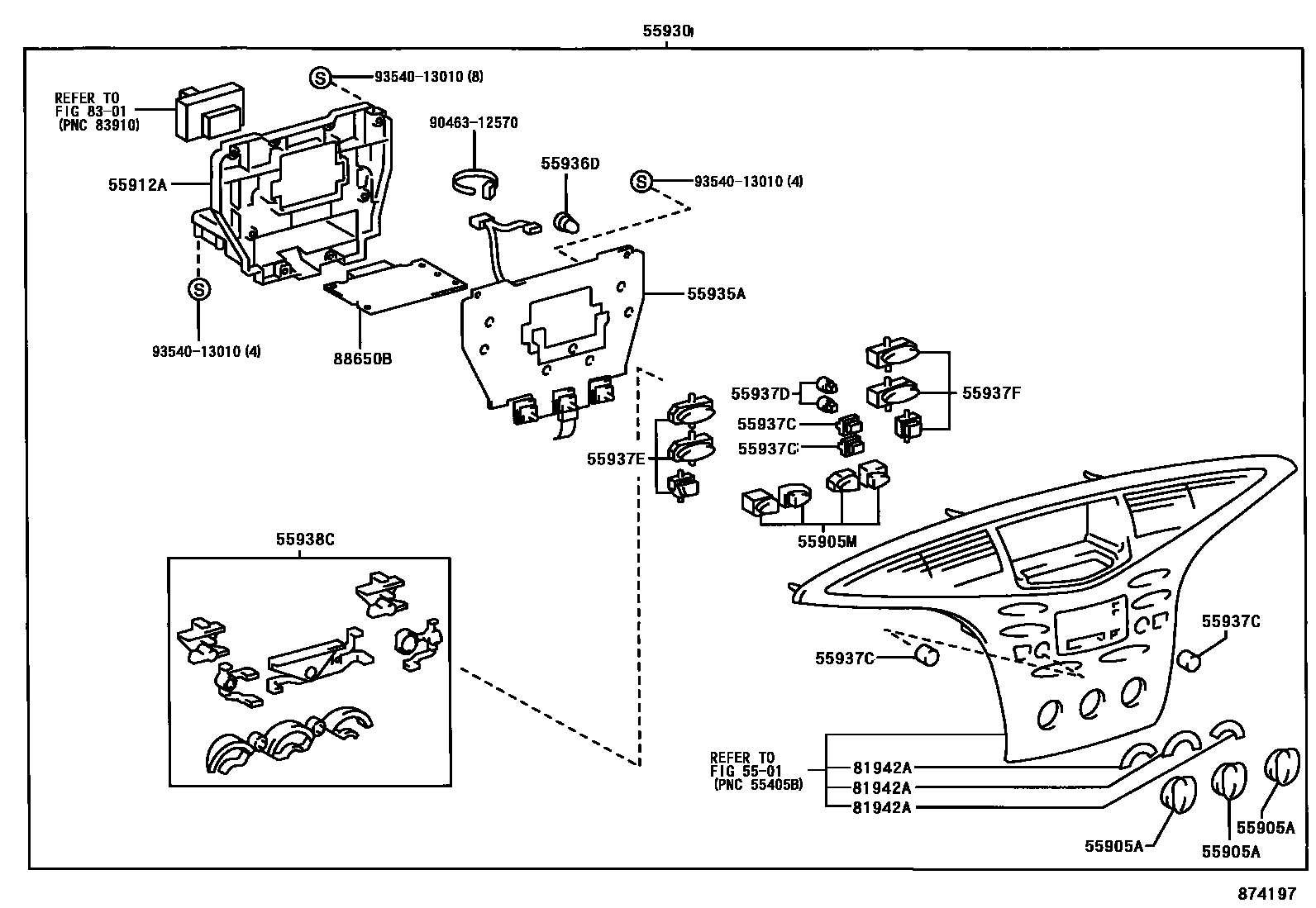

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55905AKNOB, HEATER CONTROL

main55905-47060iNHW11200005

55905MKNOB SUB-ASSY, CONTROL

main55905-49035iNHW11200005

55912AHOUSING, HEATER CONTROL

main55912-47020iNHW11200005

55930CONTROL ASSY, CENTER CLUSTER MODULE

main55930-47060-B0iNHW11..EUR200005

AMETHYST,TRIM9#

main55930-47070-B0iNHW11..ARL200108

AMETHYST,TRIM9#

main55930-47070-B0iNHW11..ARL200108

SINGAPORE OR HONG KONG SPEC,AMETHYST,TRIM9#

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-47040iNHW11200005

55936DBLUB, CENTER CLUSTER MODULE SWITCH

main90010-01039iNHW11..EUR200005

14V0.91W,W(GREEN CAP

55937CKNOB, CENTER CLUSTER MODULE

main55937-47130iNHW11200005

VOL

main55937-47170iNHW11200005

EJECT

main55937-47250iNHW11200005

AUDIO

main55937-47340iNHW11200005

SCAN

55937DKNOB, CENTER CLUSTER MODULE, NO.1

main55937-49085iNHW11200005

55937EKNOB, CENTER CLUSTER MODULE, NO.2

main55937-49095iNHW11200005

55937FKNOB, CENTER CLUSTER MODULE, NO.3

main55937-49115iNHW11200005

55938CLENS, CENTER CLUSTER MODULE

main55938-49035iNHW11200005

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-47040iNHW11200005

MODE

main81942-47050iNHW11200005

BLOWER

main81942-47060iNHW11..ARL200108

TEMP

main81942-47080iNHW11..EUR200005

TEMP

8301METER

→ Go to FIG 83-01

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-47020iNHW11..ARL200108

main88650-47030iNHW11..EUR200005

9046312570

main90463-12570

9354013010

main93540-13010

17 parts on this diagram · 3 diagrams in section
