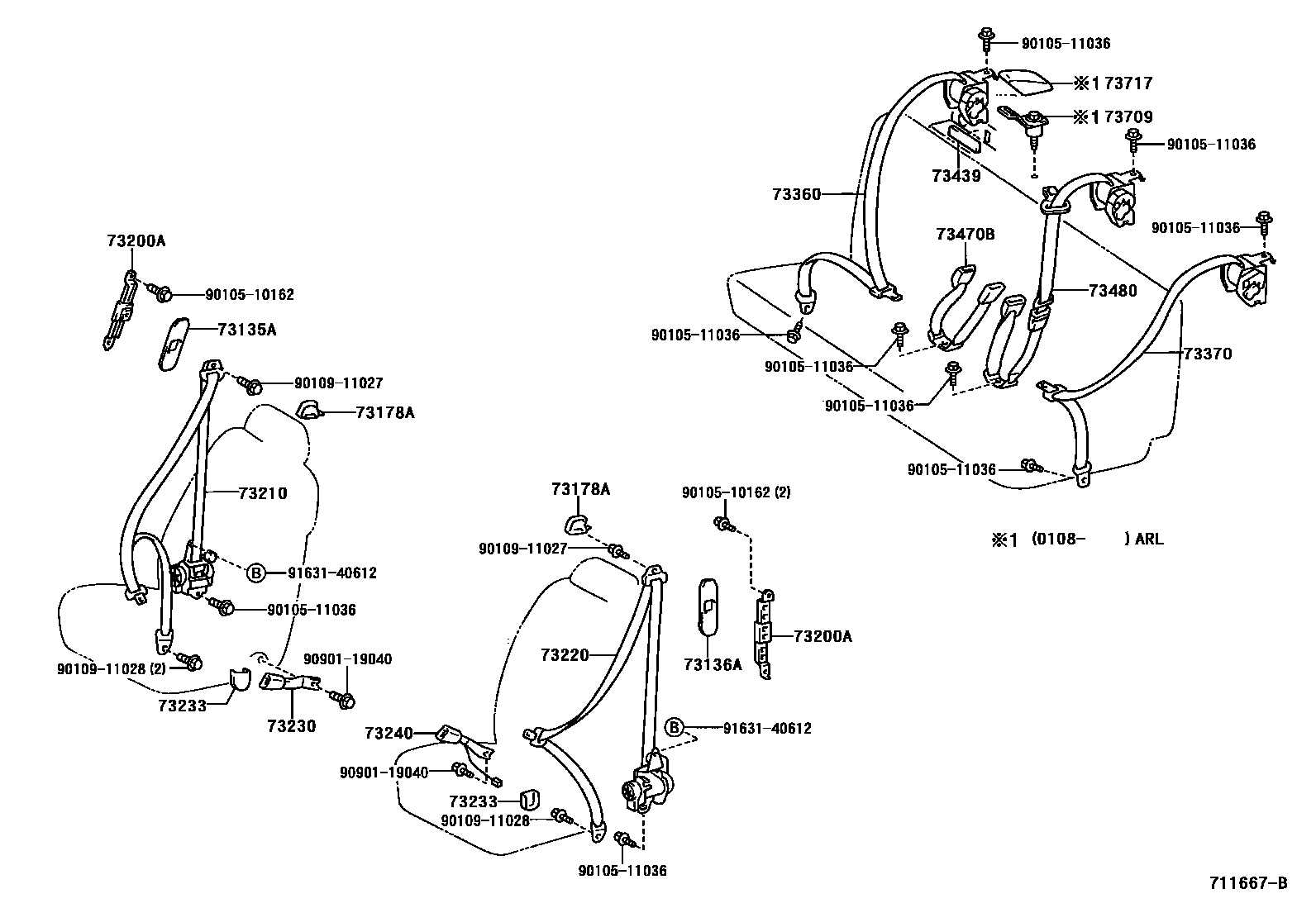

SEAT BELT & CHILD RESTRAINT SEAT
73135ACOVER, SHOULDER BELT ANCHOR, RH
LT.AMETHYST,TRIM9#
73136ACOVER, SHOULDER BELT ANCHOR, LH
LT.AMETHYST,TRIM9#
73178ACAP, SEAT BELT ANCHOR COVER
LT.AMETHYST,TRIM9#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.AMETHYST,TRIM9#
73210BELT ASSY, FRONT SEAT OUTER, RH
SHADOW GRAY,TRIM9#
SHADOW GRAY,TRIM9#
73220BELT ASSY, FRONT SEAT OUTER, LH
SHADOW GRAY,TRIM9#
SHADOW GRAY,TRIM9#
73230BELT ASSY, FRONT SEAT INNER, RH
AMETHYST,TRIM9#
AMETHYST,TRIM9#; HONG KONG OR SINGAPORE SPEC,AMETHYST,TRIM9#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM9#
73240BELT ASSY, FRONT SEAT INNER, LH
AMETHYST,TRIM9#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
SHADOW GRAY,TRIM9#
SHADOW GRAY,TRIM9#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
SHADOW GRAY,TRIM9#
SHADOW GRAY,TRIM9#
73439CUSHION, REAR SEAT BELT RETRACTOR
73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH
SHADOW GRAY,TRIM9#
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
SHADOW GRAY,TRIM9#
SHADOW GRAY,TRIM9#
SHADOW GRAY,TRIM9#
73709BRACKET SUB-ASSY, TETHER ANCHOR
73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
AMETHYST,TRIM9#
9010510162
main90105-10162
9010511036
main90105-11036
9010911027
main90109-11027
9010911028
main90109-11028
9090119040
main90901-19040
9163140612
main91631-40612
22 parts on this diagram · 1 diagram in section
