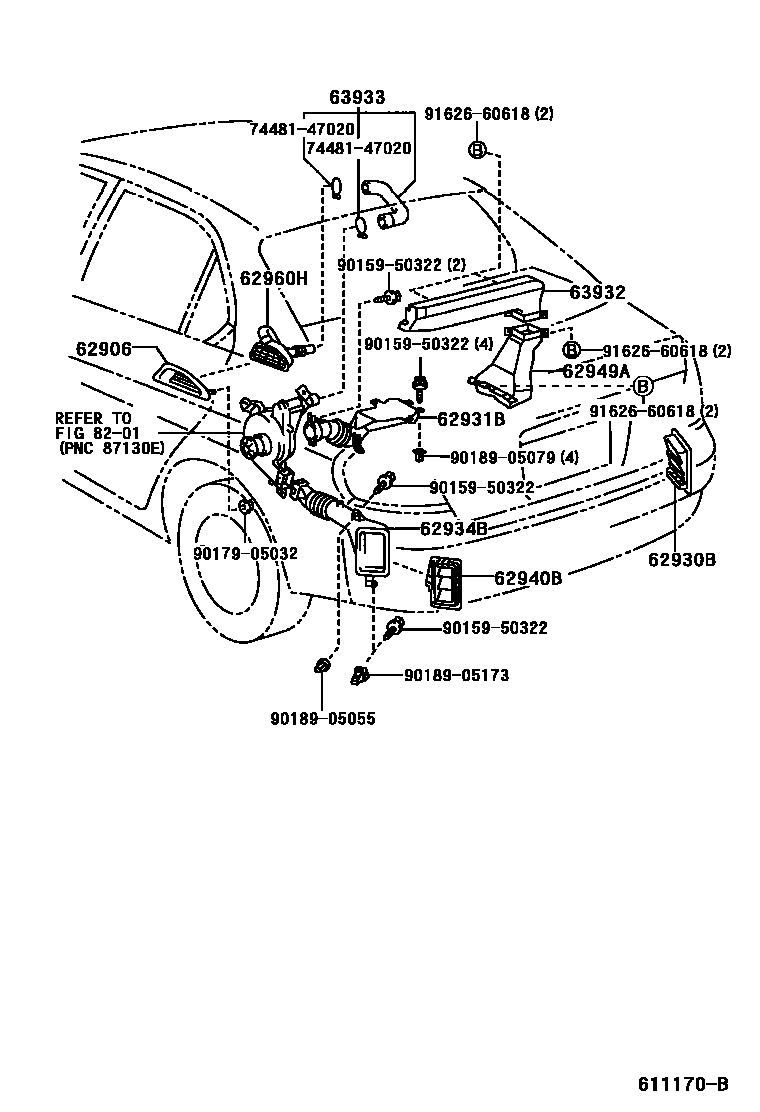

ROOF SIDE VENTILATOR

62906LOUVER, QUATER VENTILATION, LH

main62906-47010-A0iNHW11..ARL200212

SUPER WHITE 2,040

main62906-47010-B1iNHW11200005

SILVER ME.GR.,1C5

main62906-47010-C0iNHW11..EUR200208-200212

BLACK,202

main62906-47010-D1iNHW11200208

BORDEAUX MC.,3P2

main62906-47010-G2iNHW11200005

DARK GREEN MC.,6R4

main62906-47010-H0iNHW11200005

LT. AQUA ME.OP.,761

main62906-47010-J1iNHW11200005

DK.BLUE MC.,8K8

main62906-47010-J2iNHW11200005-200208

BLUE M.M.,8P5

62930BDUCT ASSY, QUARTER VENT, RH

main62940-16060iNHW11200005

62931BDUCT, QUARTER VENT

main62931-47010iNHW11200005

62934BDUCT, QUARTER VENT, INNER LH

main62934-47020iNHW11200005

62940BDUCT ASSY, QUARTER VENT, LH

main62940-10020iNHW11200005

62949ADUCT, QUARTER VENT, LOWER

main62949-47010iNHW11200005

62960HDUCT ASSY, QUARTER VENT, NO.2 LH

main62960-47010iNHW11200005

63932DUCT, VENTILATOR, INNER

main63932-47020iNHW11200005

63933DUCT, QUARTER VENT, INNER

main62933-47020iNHW11200005

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

7448147020CLAMP, BATTERY HOLD DOWN

main74481-47020

9015950322

main90159-50322

9017905032

main90179-05032

9018905055

main90189-05055

9018905079

main90189-05079

9018905173

main90189-05173

9162660618

main91626-60618

17 parts on this diagram · 1 diagram in section
