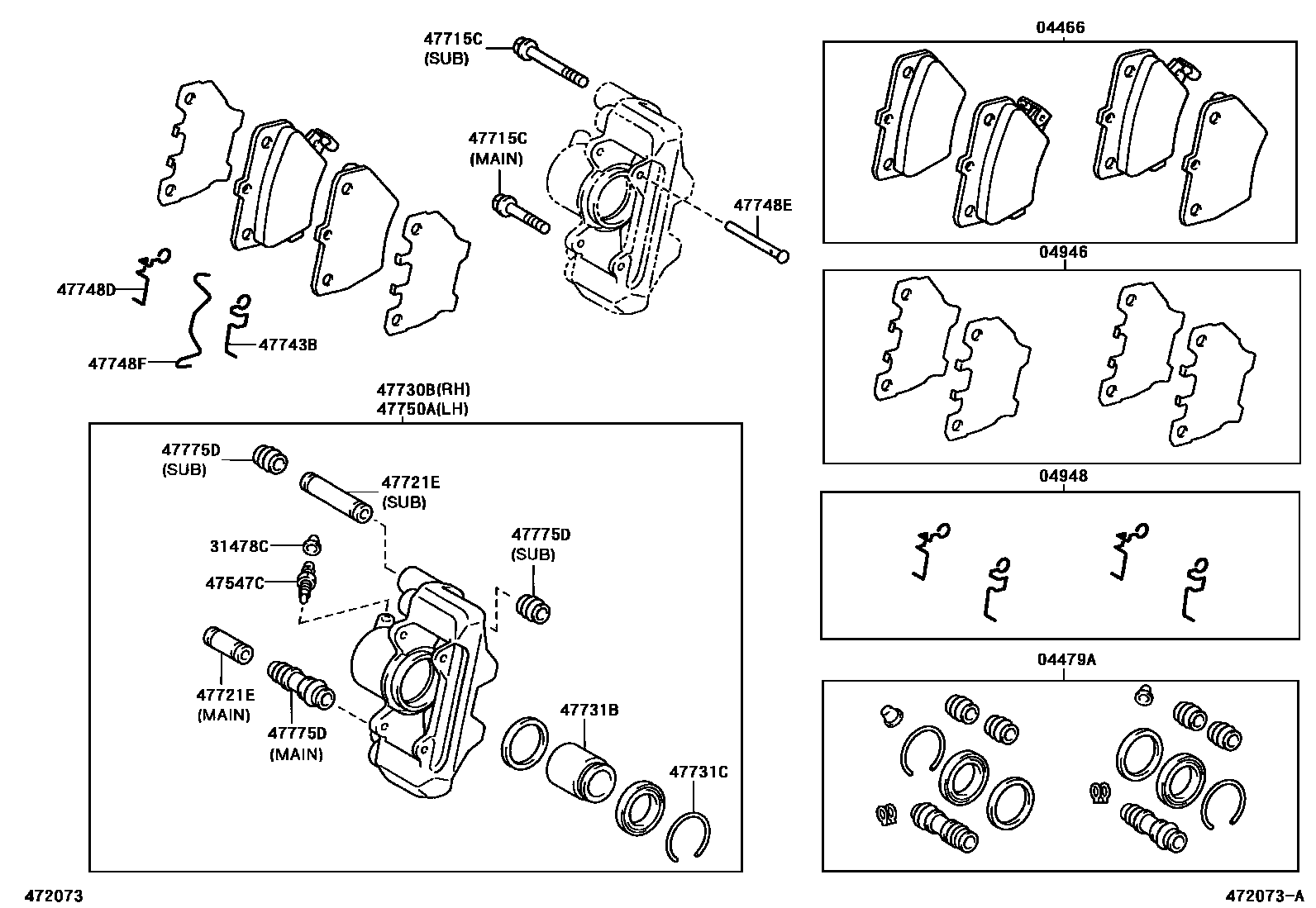

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52030iNHW11200005

MARK AK PA511H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20340iNHW11200005

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iNHW11200005

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iNHW11200005

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iNHW11200005

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iNHW11200005

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030iNHW11200005

MAIN PIN SIDE

main47715-20040iNHW11200005

SUB PIN SIDE

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053iNHW11200005

SUB PIN SIDE

main90389-10054iNHW11200005

MAIN PIN SIDE

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20630iNHW11200005

47731BPISTON, REAR DISC BRAKE

main47731-20250iNHW11200005

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-40043iNHW11200005

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030iNHW11200005

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040iNHW11200005

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021iNHW11200005

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025iNHW11200005

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20620iNHW11200005

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020iNHW11200005

MAIN PIN SIDE

main47775-42010iNHW11200005

SUB PIN SIDE

17 parts on this diagram · 1 diagram in section
