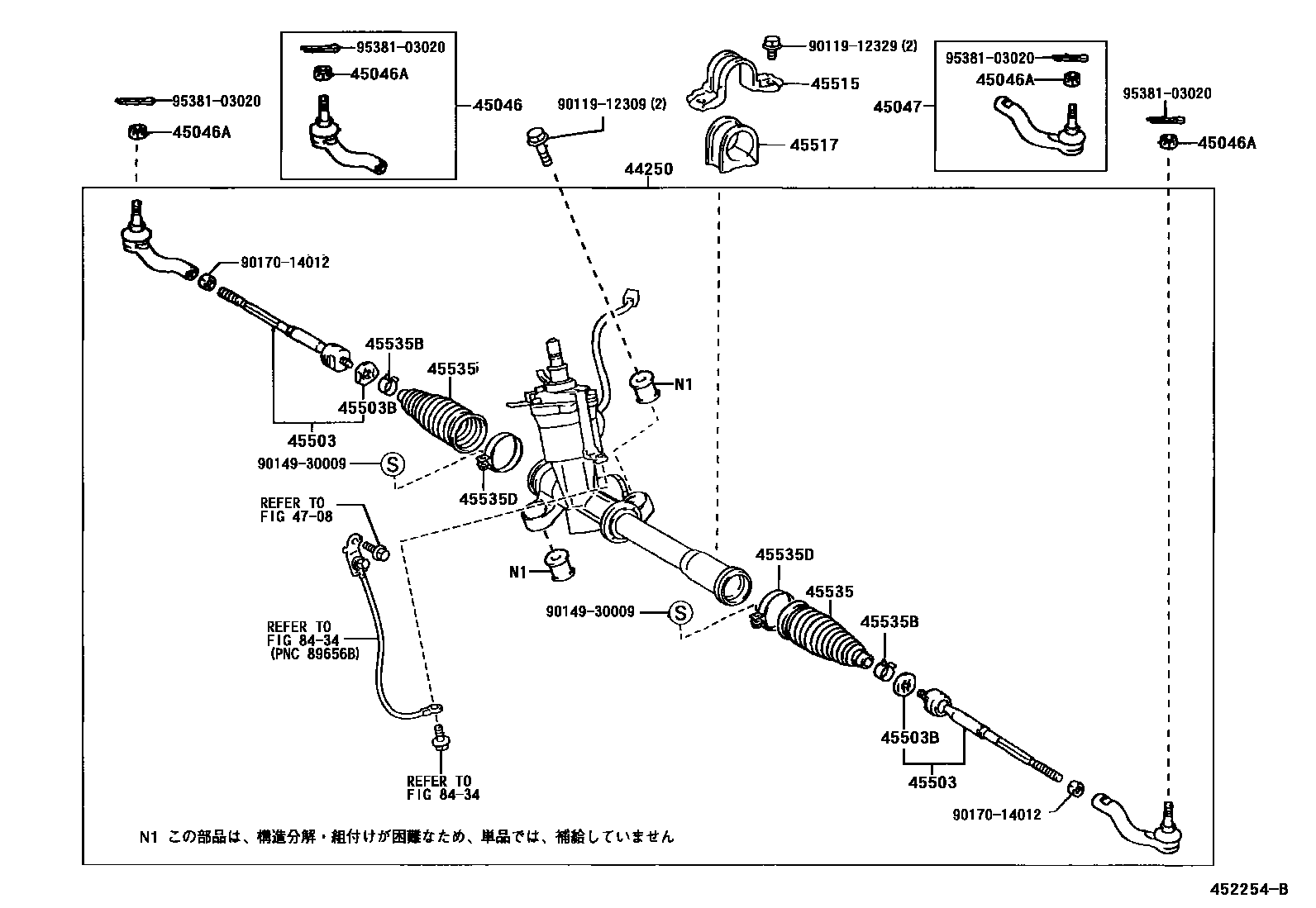

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-47050iNHW11..RHD200005

main44200-47060iNHW11..LHD200005

45046END SUB-ASSY, TIE ROD, RH

main45046-49115iNHW11200005

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNHW11200005

45047END SUB-ASSY, TIE ROD, LH

main45047-49045iNHW11200005

45503END SUB-ASSY, STEERING RACK

main45503-49075×2iNHW11200005

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-18004×2iNHW11200005

OD=37

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iNHW11200005

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-47020iNHW11200005

45535BOOT, STEERING RACK, NO.1

main45535-47011×2iNHW11200005

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iNHW11200005

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-60004×2iNHW11200005

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8434POWER STEERING COMPUTER

→ Go to FIG 84-34

9011912309

main90119-12309

9011912329

main90119-12329

9014930009

main90149-30009

9017014012

main90170-14012

9538103020

main95381-03020

18 parts on this diagram · 2 diagrams in section
