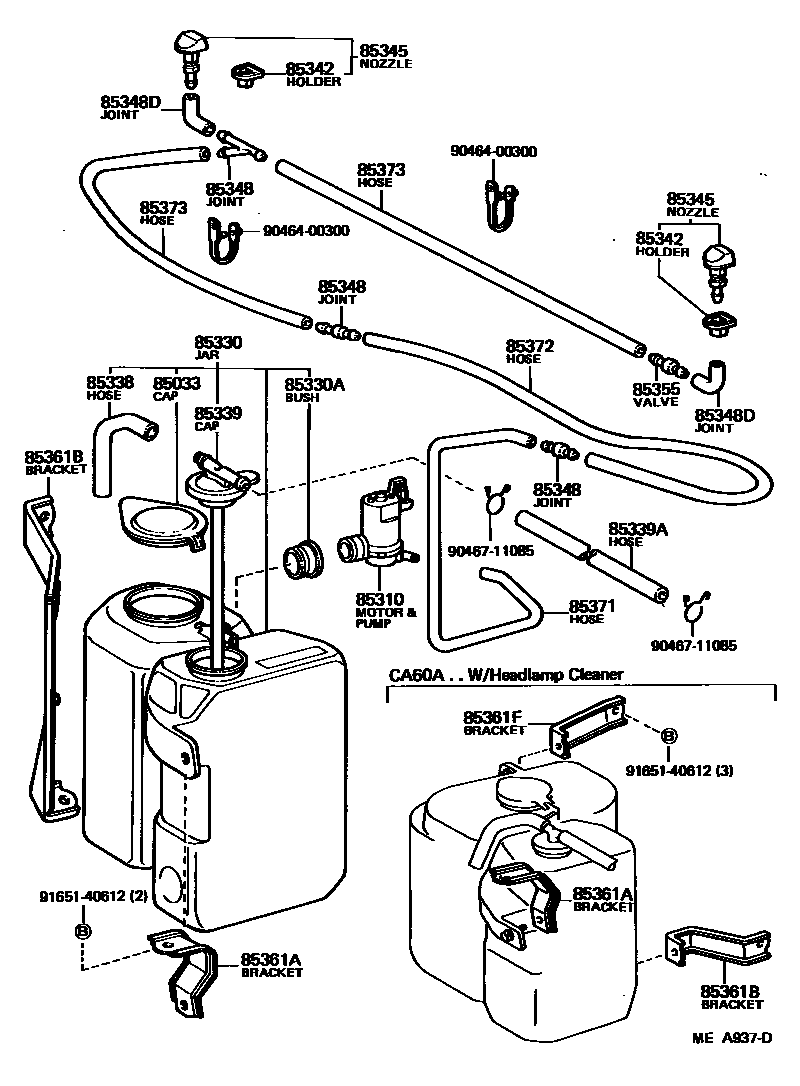

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iTA60..GEN198108-198309

main85332-20060iCA60,TA6#..EUR198108-198309

main85332-22040iCA60198204-198309

W/HEADLAMP CLEANER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10130iCA60,TA6#198108-198208

main85310-22080iCA60198204-198309

W/HEADLAMP CLEANER

85330JAR ASSY, WINDSHIELD WASHER

main85330-14440iCA60198204-198309

W/HEADLAMP CLEANER

main85330-20201iTA60..GEN198108-198308

main85330-20280iCA60,TA6#..EUR198108-198309

main85330-20350iTA60..GEN198308-198309

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCA60,TA6#198108-198309

85338HOSE, BREATHER

main85338-14040iCA60,TA6#198108-198309

85339CAP SUB-ASSY, RESERVE TANK

main85339-14010iCA60,TA6#198108-198309

85339AHOSE (FOR RADIATOR RESERVE TANK)

main90445-12005iCA60,TA6#198108-198309

85342HOLDER, WASHER NOZZLE

main85342-14010×2iCA60,TA6#198108-198309

85345NOZZLE, WINDSHIELD WASHER

main85035-19015iTA6#..CP198205-198309

main85035-19025×2iCA60,TA6#..SED,WG198205-198309

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iCA60,TA6#198108-198309

3-WAY

main85355-87201×2iCA60,TA6#198108-198309

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20070×2iCA60,TA6#198108-198309

85355VALVE, WINDSHIELD WASHER HOSE

main85031-14080iCA60,TA6#198108-198309

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-14320iCA60,TA6#198108-198308

main85361-20120iTA60..GEN198308-198309

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-14330iCA60,TA6#198108-198308

main85361-14520iCA60198204-198309

W/HEADLAMP CLEANER

main85361-20170iTA60..GEN198308-198309

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85361-14530iCA60198204-198309

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iCA60,TA6#198108-198309

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iCA60,TA6#198108-198309

L=1800

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iCA60,TA6#198108-198308

L=1450(*H,L=550)

main90446-06013iCA60,TA6#198308-198309

L=1450(*H,L=550)

9046400300

main90464-00300

9046711085

main90467-11085

9165140612

main91651-40612

21 parts on this diagram · 1 diagram in section
