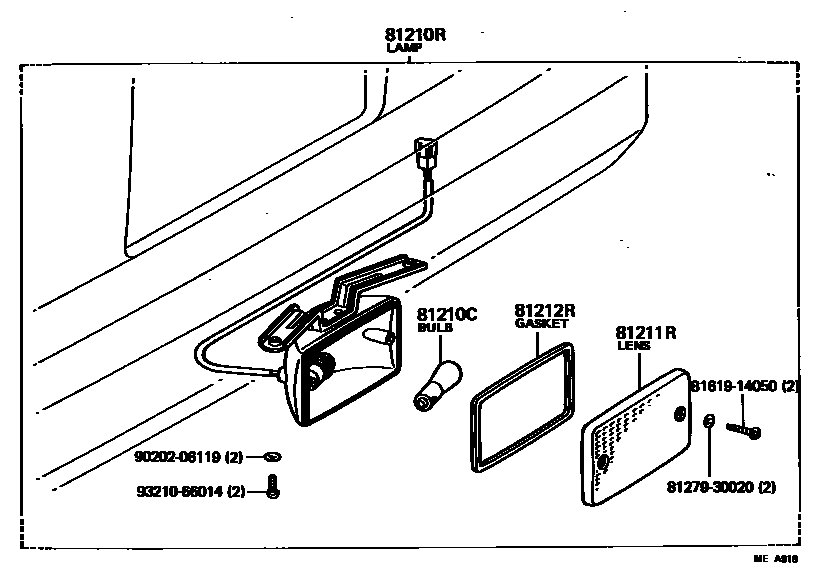

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iCA60,TA60..WG..EUG198108-198309

12V 21W,12V 21W

81210RLAMP ASSY, REAR FOG

main81210-19085iCA60,TA60..WG..LHD..EUG198108-198309

main81210-19105iTA60..WG..RHD..EUG198108-198309

81211RLENS, REAR FOG LAMP

main81211-95700iCA60,TA60..WG..EUG198108-198309

81212RGASKET, REAR FOG LAMP, NO.1

main81212-95700iCA60,TA60..WG..EUG198108-198309

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8161914050

main81619-14050

9020206119

main90202-06119

9321066014

main93210-66014

8 parts on this diagram · 1 diagram in section
