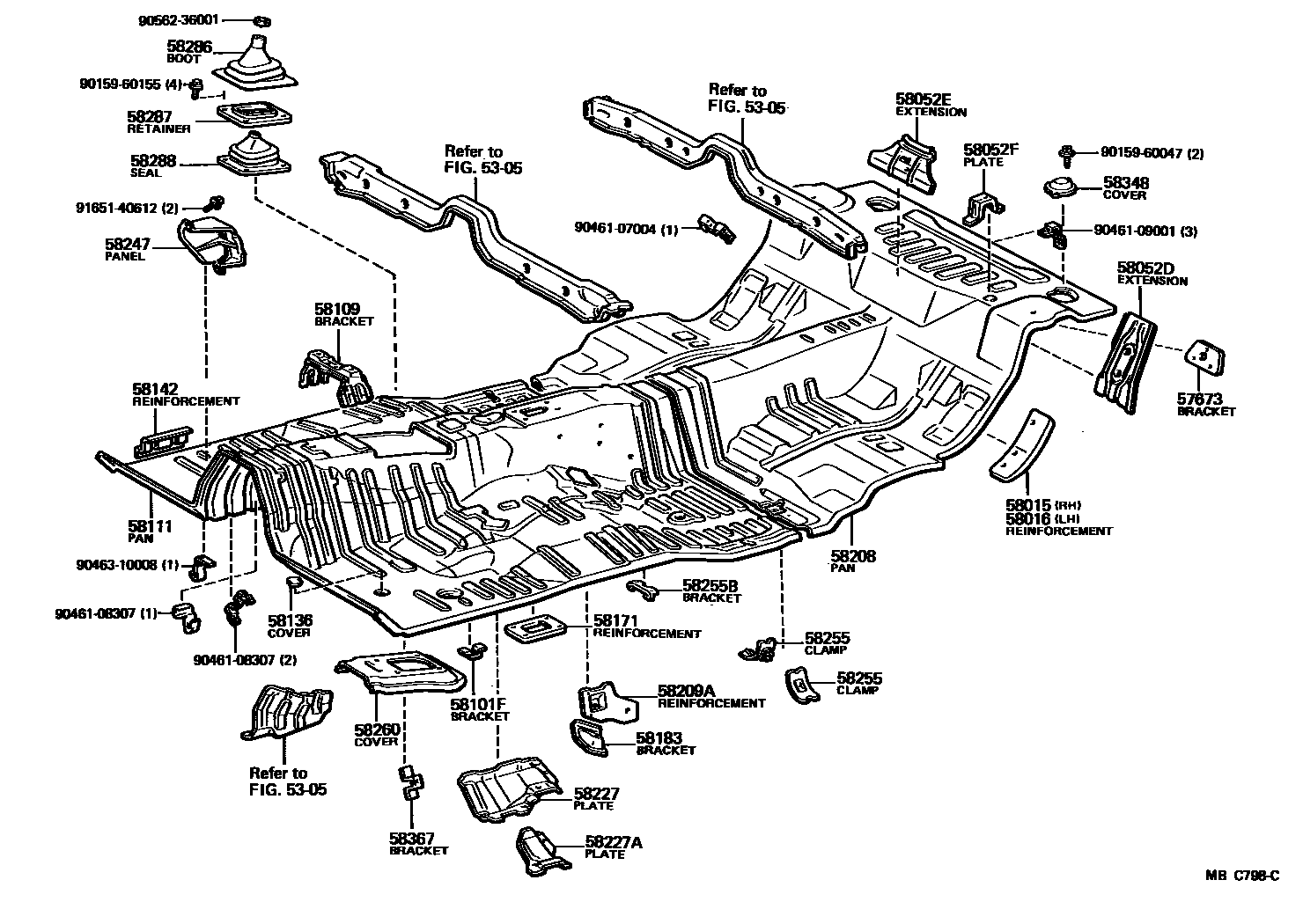

FLOOR PAN & LOWER BACK PANEL
5305FLOOR SIDE MEMBER
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY
RH
LH
58052EEXTENSION, CENTER FLOOR TO BRACE
58052FPLATE, LUGGAGE HOLD BELT ANCHOR
58101FBRACKET, MOUNTING, FLOOR, NO.1
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
RH
RH
LH
58227PLATE, AIR GUIDE, OUTSIDE
RH
LH
58227APLATE, AIR GUIDE
RH
LH
58247PANEL, FOOTREST, INSIDE
58255CLAMP, PARKING BRAKE CABLE, NO.1
RH
LH
58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58260COVER ASSY, TRANSMISSION, FRONT
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58348COVER, REAR ABSORBER SERVICE HOLE
RH
LH
58367BRACKET, FUEL TUBE CLAMP
9015960047
main90159-60047
9015960155
main90159-60155
9046107004
main90461-07004
9046108307
main90461-08307
9046109001
main90461-09001
9046310008
main90463-10008
9056236001
main90562-36001
9165140612
main91651-40612
35 parts on this diagram · 3 diagrams in section
